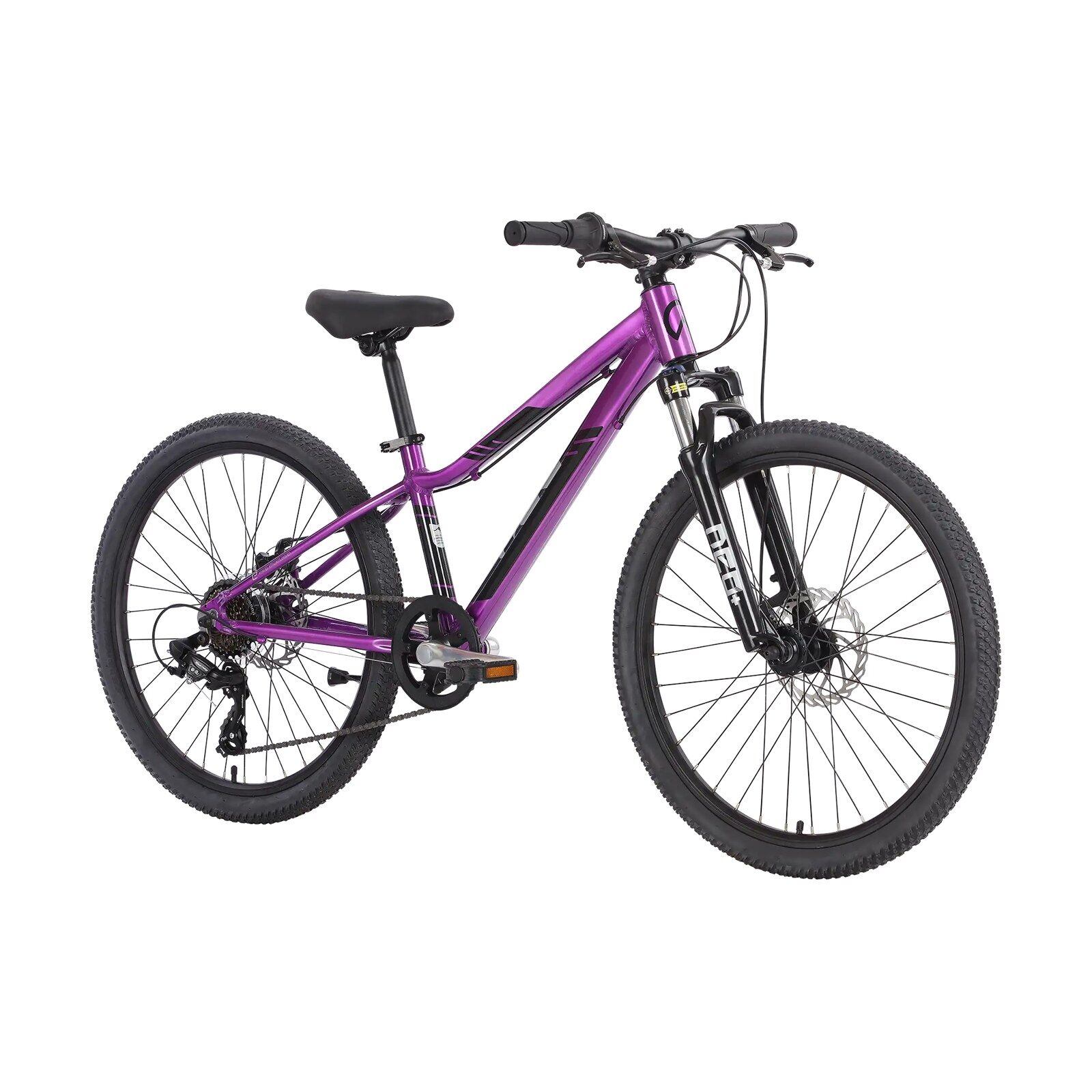

The Neo Disc+ 24 7s is a proper kids' mountain bike for riders aged 7 to 10+ (130 to 160 cm). Suspension, disc brakes and wide MTB tyres let them move from pavement to dirt and back again.

  • 60 mm suspension fork with lockout: soaks up the bumps, and locks out for climbs and smooth roads
  • Disc brakes: JAK-5 mechanical discs with 160 mm rotors and short-reach alloy levers
  • Wide MTB tyres: 24 x 2.1 inch knobby tyres for grip and comfort
  • Shimano 7-speed: TX-35 rear derailleur, Revoshift shifter and a 14-28T freewheel

Confident on the dirt

The disc-specific GEN 3 alloy frame has a slacker head angle and a low standover height for stability and control, with a choice of curved or straight top tube.

Built to last

32-hole double-wall alloy rims with stainless steel spokes run on alloy quick-release hubs. A 36T alloy three-piece crank with a double chainguard and a KMC Z-51 chain round out the drivetrain. The 27.2 mm micro-adjust seatpost has a quick-release clamp, and an alloy kickstand is included.

Sizing

Recommended for ages 7 to 10+ and riders 130 to 160 cm. Two finishes: Chrome Purple and Brushed Alloy.

Neo bikes are covered by Apollo Bicycle Co.'s limited warranty for the original purchaser, when bought new and assembled by an authorised dealer:

  • Aluminium frame: 5 years against failure at any weld point (frame fatigue is not covered)
  • Suspension fork: 1 year against faulty workmanship or materials
  • Paint finish, parts and accessories: 12 months from the date of purchase
  • Tyres and tubes are not covered

The warranty does not cover abuse, neglect, accidents, improper repair or maintenance, or modification. For warranty support, return the bike to Tune Cycles with your proof of purchase and we'll manage the claim with Apollo for you. This warranty is in addition to your rights under the Australian Consumer Law.

  • All-new GEN 3 lightweight alloy disc-specific frame, with slacker head tube angle, and a choice of curved or straight top tube. Designed with a low stand over height, and low centre of gravity to boost rider confidence and safety.
  • Suspension fork and wide 2.1” knobby MTB tyres for grip, comfort, and performance from pavement to dirt riding.
  • Full alloy child-specific short reach brake levers, combined with powerful disc brakes
  • Lightweight alloy hubs, rims, handlebars and stem, which reduces the overall weight of the bicycle.
  • Super comfortable junior-specific saddle and grips, for ultimate riding comfort.
  • Lightweight alloy crank set with child-specific easy-pedalling gearing.
  • Shimano 7 speed gears for reliable shifting performance.
ModelNeo Disc+ 24 7s
Wheel size24"
GearsShimano 7-speed
Recommended age7 - 10+ years
Rider height130 - 160 cm
ColoursChrome Purple, Brushed Alloy
FrameNeo+ GEN 3 disc-specific lightweight alloy frame - with low stand over height, hydroformed tubes and streamline stays
Fork24" ZOOM-525AMS alloy suspension fork, 60mm travel, with lockout
HeadsetSemi-sealed integrated 1-1/8" A-head
HandlebarLightweight alloy low riser 560mm
GripsKraton grips
StemAlloy A-head 4 bolt stem with Rise: 10° Bore: 25.4mm, L: 60mm
CranksetAlloy oversize 3 piece crank with 36T chainwheel and double chainguard
ChainguardDouble guard on chainring
Bottom bracketNutted bottom bracket
PedalsHigh impact plastic
Rear derailleurShimano TX-35
ShifterShimano Revoshift 7 speed rear
Rear sprocket / freewheelShimano MF TZ21 14-28T 7 speed freewheel
ChainKMC Z-51
BrakesJAK-5 mechanical disc brake, with 160mm rotors, short reach alloy lever for kids
Wheels24" lightweight alloy 32 hole double wall rims, stainless steel spokes, and alloy quick release hubs
Tyres24" x 2.1 MTB
SaddleNeo Comfortech youth saddle
Seatpost / clamp27.2mm alloy micro adjust with quick release clamp
ExtrasAlloy kickstand
SKU APO-P-NEO-DISC-24
Brand Neo
Shipping Weight 9.0000kg
Shipping Width 0.220m
Shipping Height 0.720m
Shipping Length 1.300m
