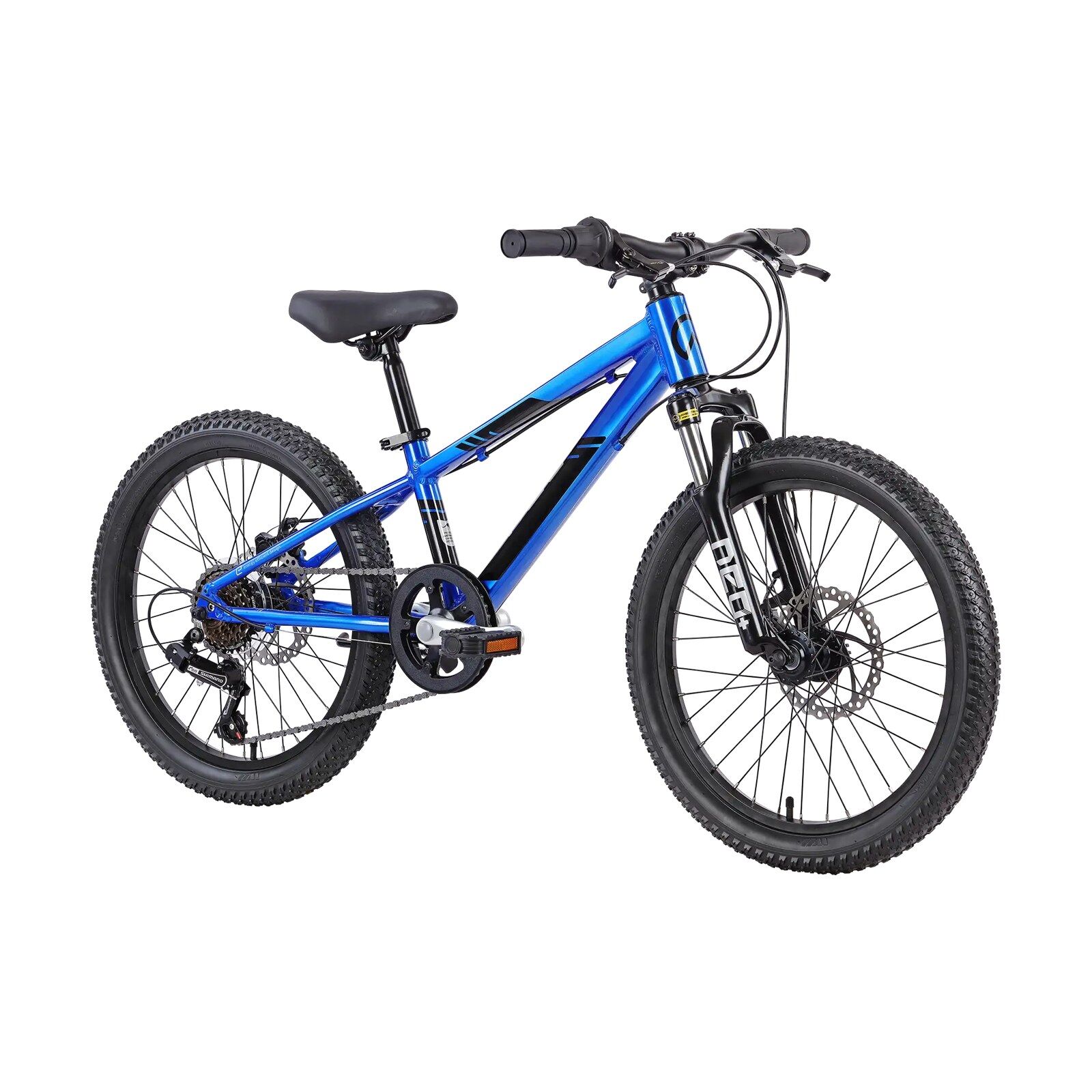

The Neo Disc+ 20 6s is built to go off the bike path and into the gravel and dirt. A suspension fork, disc brakes and knobby tyres give riders aged 5 to 8 (114 to 132 cm) the control to explore.

  • 40 mm suspension fork with lockout: switch it on for dirt and off for pavement or climbing
  • Disc brakes: JAK-5 mechanical discs with 160 mm rotors and short-reach alloy levers
  • Knobby MTB tyres: 20 x 2.125 inch tyres for extra grip on loose ground
  • Shimano 6-speed: TX-35 rear derailleur and Revoshift shifter with a 14-28T freewheel

Trail-ready frame

The disc-specific GEN 3 alloy frame has a slacker head angle, a lowered bottom bracket and a low standover height, so riders feel stable and confident on rough ground. It comes with a choice of curved or straight top tube.

Light, kid-sized parts

Alloy disc hubs with quick release, alloy rims, a 560 mm low-riser bar and a 60 mm A-head stem keep the weight down. A 36T alloy three-piece crank with a double chainguard gives easy-pedalling gearing. A kickstand is included.

Sizing

Recommended for ages 5 to 8 and riders 114 to 132 cm. Three finishes: Chrome Blue, Chrome Pink and Brushed Alloy.

Neo bikes are covered by Apollo Bicycle Co.'s limited warranty for the original purchaser, when bought new and assembled by an authorised dealer:

  • Aluminium frame: 5 years against failure at any weld point (frame fatigue is not covered)
  • Suspension fork: 1 year against faulty workmanship or materials
  • Paint finish, parts and accessories: 12 months from the date of purchase
  • Tyres and tubes are not covered

The warranty does not cover abuse, neglect, accidents, improper repair or maintenance, or modification. For warranty support, return the bike to Tune Cycles with your proof of purchase and we'll manage the claim with Apollo for you. This warranty is in addition to your rights under the Australian Consumer Law.

  • All-new GEN 3 lightweight alloy disc-specific frame, with slacker head tube angle, lowered bottom bracket, and a choice of curved or straight top tube. Designed with a low stand over height, and lower centre of gravity to boost rider confidence and safety.
  • Suspension fork and wide 2.125” knobby MTB tyres for grip, comfort, and performance from pavement to dirt riding.
  • Full alloy child-specific short reach brake levers, combined with powerful disc brakes.
  • Lightweight alloy hubs, rims, handlebars and stem, which reduces the overall weight of the bicycle.
  • Super comfortable junior-specific saddle and grips, for ultimate riding comfort.
  • Lightweight alloy crank set with child-specific easy-pedalling gearing.
  • Shimano 6 speed gears for reliable shifting performance.
ModelNeo Disc+ 20 6s
Wheel size20"
GearsShimano 6-speed
Recommended age5 - 8 years
Rider height114 - 132 cm
ColoursChrome Blue, Chrome Pink, Brushed Alloy
FrameNeo+ GEN 3 disc-specific lightweight alloy frame - with low stand over height, hydroformed tubes and streamline stays
Fork20" ZOOM-525AMS alloy suspension fork, 40mm travel, with lockout
HeadsetSemi-sealed integrated 1-1/8" A-head
HandlebarLightweight alloy low riser 560mm
GripsKraton grips
StemAlloy A-head 4 bolt stem with Rise: 10° Bore: 25.4mm, L: 60mm
CranksetAlloy oversize 3 piece crank with 36T chainwheel and double chainguard
ChainguardDouble guard on chainring
Bottom bracketNutted bottom bracket
PedalsHigh impact plastic
Rear derailleurShimano TX-35
ShifterShimano Revoshift 6 speed rear
Rear sprocket / freewheelShimano MF TZ06 14-28T 6 speed freewheel
BrakesJAK-5 mechanical disc brake, with 160mm rotors, short reach alloy lever for kids
Wheels20" lightweight alloy 32 hole rims with alloy disc brake hubs with quick release
Tyres20" x 2.125 MTB
SaddleNeo Comfortech youth saddle
Seatpost / clamp22.2mm alloy with quick release clamp
ExtrasKickstand
SKU APO-P-NEO-DISC-20
Brand Neo
Shipping Weight 9.0000kg
Shipping Width 0.220m
Shipping Height 0.620m
Shipping Length 1.100m
