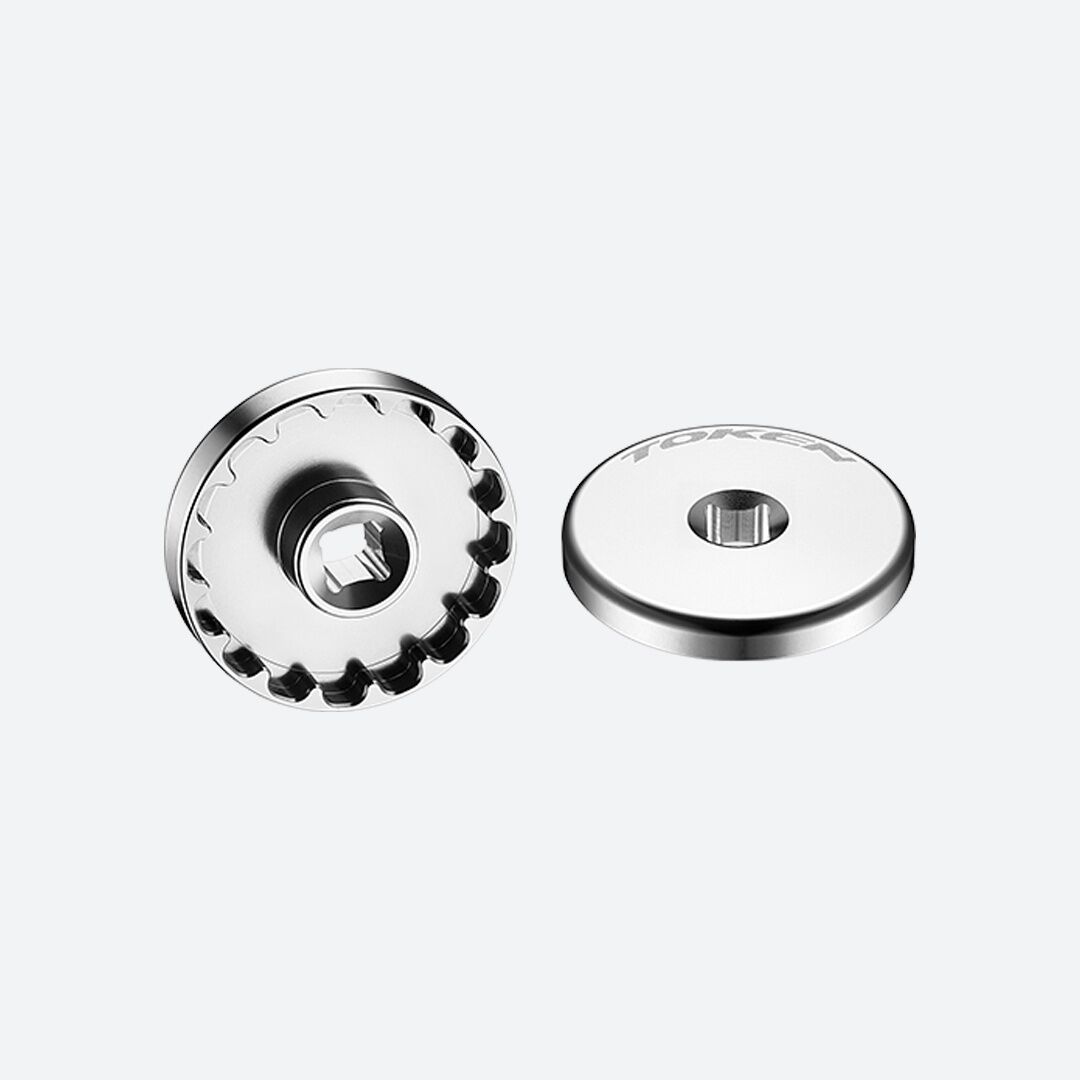

Full-metal, durable installation tool for TOKEN bottom brackets in T47 internal, BB386/BB392 and PF30 frames.

Compatibility & fit

Frame types: BB386 / BB392 (46 x 86.5/92 mm), PF30 (46 x 68/73 mm), T47 inboard (M47 x 85.5/86.5/91.5). Crank types: Shimano (24 mm), BB386/BB392 (30 mm), BB30 (30 mm). Compatible Park Tool: BBT-27.2.

TOKEN warrants this product against defects in materials or workmanship for two years from the original date of purchase, for the original purchaser with dated proof of purchase. Normal wear and tear, and damage from incorrect installation, modification, neglect or improper maintenance are not covered; TOKEN repairs or replaces a defective product at its discretion. This is in addition to your rights under the Australian Consumer Law.

For warranty support, return the product to Tune Cycles and we'll manage the claim with TOKEN's Australian distributor.

  • Full-metal, durable installation tool for TOKEN bottom brackets in T47 internal, BB386/BB392 and PF30 frames
  • Frames: BB386 / BB392 (46 x 86.5/92 mm), PF30 (46 x 68/73 mm), T47 inboard (M47 x 85.5/86.5/91.5)
  • Cranks: Shimano (24 mm), BB386/BB392 (30 mm), BB30 (30 mm)
  • Park Tool BBT-27.2 compatible
Product codeTF4630-3SPA-2
Frame typeBB386 / BB392 (46 x 86.5/92 mm), PF30 (46 x 68/73 mm), T47 inboard (M47 x 85.5/86.5/91.5)
Crank typeShimano (24 mm), BB386/BB392 (30 mm), BB30 (30 mm)
Weight32 g
Compatible Park ToolBBT-27.2
SKU FES-DBZ4630-3SPA-2TK
Brand TOKEN
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
