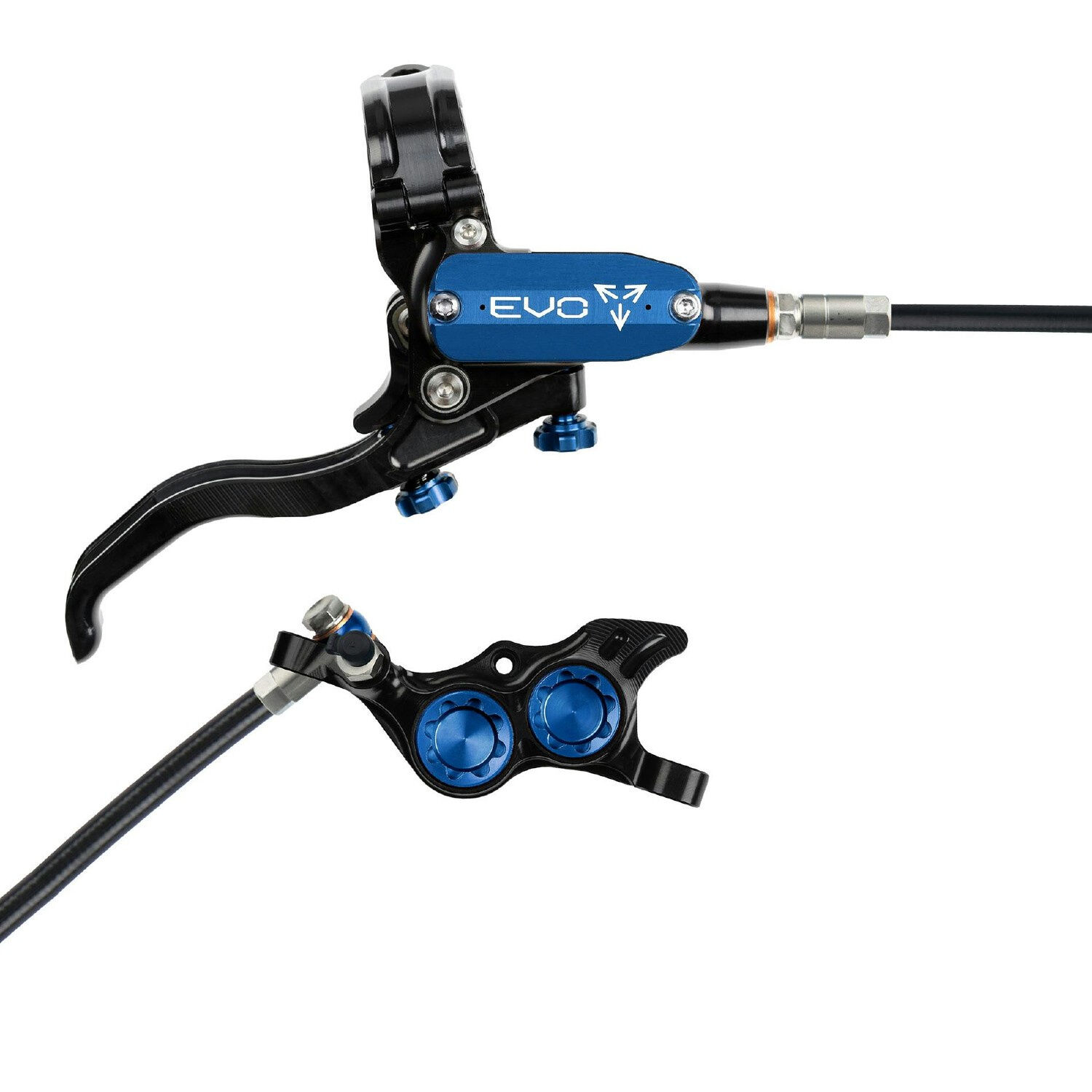

Hope Tech EVO TR4 4-Piston Hydraulic Disc Brake - Front (Right Lever) - Black / Blue
SKU code: BSP-HOPBSTETR4-BKBL-FRSC
In Stock
The EVO TR4 is Hope's trail brake and the successor to the Tech 4 E4: four-piston power for trail and all-mountain riding with a firm, consistent lever feel and the smooth EVO lever action. The one-piece caliper has larger 16 / 17 mm pistons than the E4 and takes the bigger pad shared with the GR4 for better feel and consistency, with a slimmer bore-cap design for frame clearance. Tech EVO lever: longer lever hook for control under hard braking, dimpled blade for grip in all weathers, new cam that shortens the free stroke while keeping Hope's feel and modulation, roller-bearing main pivot, two guide bushes on the master-cylinder piston, bleed port on the body, tool-free bite-point and reach adjusters, hinged clamp.
This listing is the front brake with the right-hand lever - one complete brake: lever, 2 m black hose (cut to length at fitting), caliper and Hope racing-compound pads, fully bled. Buy the front and the rear for a complete set, or see our Tech EVO TR4 brake set with rotors. Choose the colour in the dropdown: the first colour is the lever and caliper body, the second the accents.
Rotors: 1.8 to 2.3 mm - Hope's Floating (6-bolt or Centre Lock) and Fixed rotors; not the 3.3 mm Vented rotor. We build the TR4 set on 180 mm rotors; a rotor larger than the mount's native size needs the matching Hope brake mount. Fluid: DOT 5.1 (DOT 4 compatible). Pads: the V4 / GR4 / TR4 pad (HBSP303).
Hope Technology covers its disc brake systems for two years from the date of purchase against defects in materials and workmanship (proof of purchase required). Brake pads and rotors are wear items. Return the product to Tune Cycles and we manage the claim with Hope's Australian distributor on your behalf.
- Hope's current trail brake - the E4's successor with larger 16 / 17 mm pistons
- Takes the larger GR4 pad (HBSP303) for better lever feel and consistency
- EVO lever: longer hook, dimpled blade, shorter free stroke, roller-bearing pivot, twin guide bushes, bleed port
- Tool-free bite-point control and reach adjustment; three lever-blade options (Standard fitted)
- Racing-compound pads fitted, fully bled, 2 m black hose
- Rotors 1.8 to 2.3 mm (Floating or Fixed)
- Body in black or silver with black / silver / blue / red / purple / orange accents
- Made in Barnoldswick, UK; two-year Hope warranty
| Specification | Value |
|---|---|
| Series | Hope Tech EVO (current) |
| Caliper | TR4, one-piece CNC, four pistons (16 / 17 mm) |
| Lever | EVO: roller-bearing pivot, twin guide bushes, bleed port, hinged clamp, tool-free bite point + reach, Standard blade fitted |
| Side | front brake with the right-hand lever |
| Mount | Post mount (IS and flat-mount frames need a Hope mount) |
| Rotor thickness | 1.8 to 2.3 mm - Floating and Fixed rotors; not the Vented rotor |
| Rotor size | 180 mm in our brake set; 160 to 203 mm offered |
| Pads | V4 / GR4 / TR4 pad (HBSP303) - racing compound fitted; sintered and e-bike compounds available |
| Fluid | DOT 5.1 (DOT 4 compatible) |
| Hose | 2 m black hose, cut at fitting |
| Box | Fully bled brake, M6 x 18 mm caliper bolts, pads |
| Colours | Black or silver body; black, silver, blue, red, purple, orange accents |
| Warranty | Two years (Hope), through Tune Cycles |
| SKU | BSP-HOPBSTETR4-FRSC |
| Brand | Hope |
