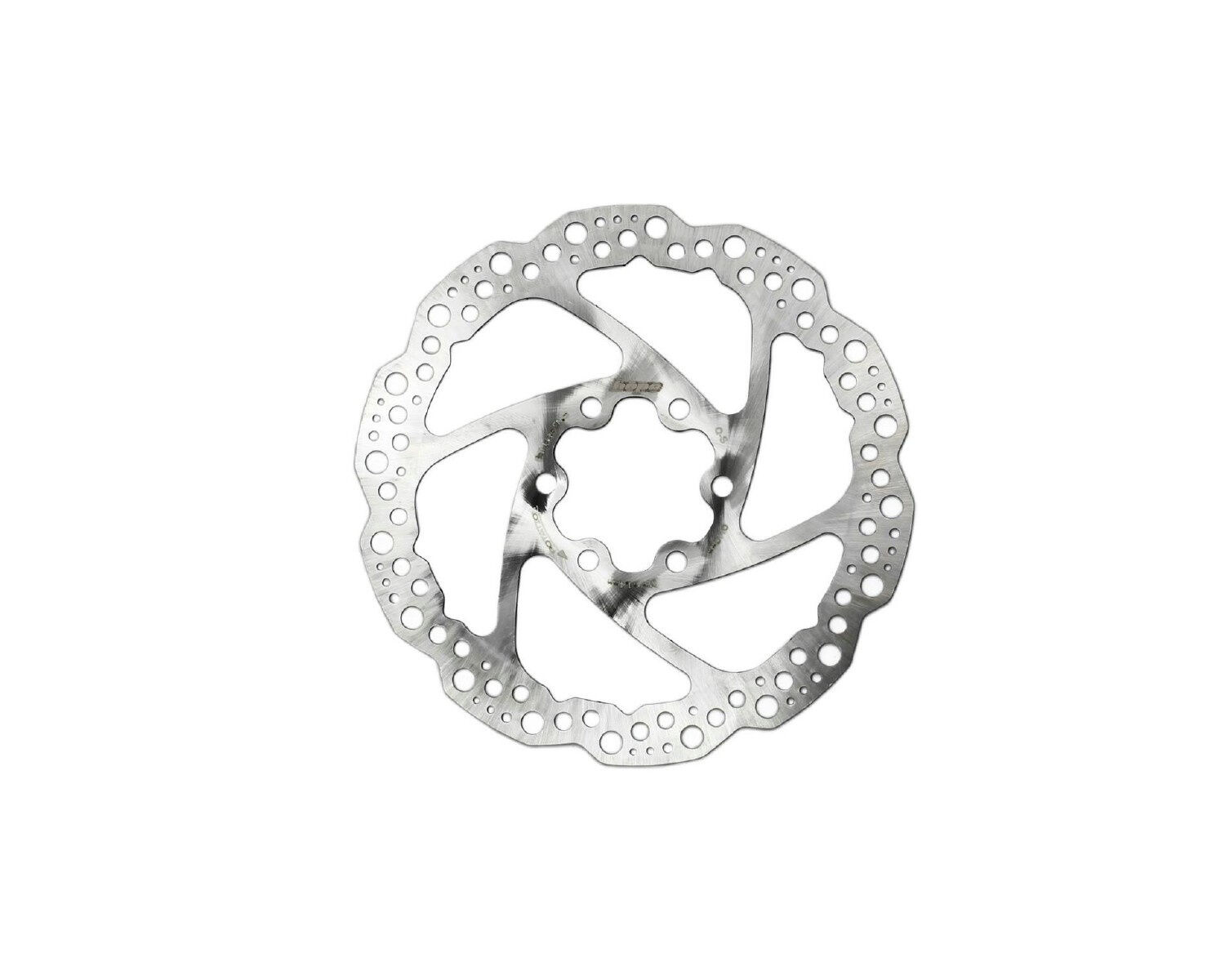

Hope's fixed rotor is the all-round choice - a balance of performance, durability and price. Each disc is laser cut from a single piece of 410 stainless steel, heat treated and ground. The thickness follows the size: 140 and 160 mm are 1.8 mm, and from 180 mm up Hope uses 2.3 mm material for more stiffness, strength, vibration damping and thermal stability - the rotor Hope fits to e-bikes.

Choose the size in the dropdown: 140, 160, 180, 200, 203 or 220 mm, 6-bolt (6 x M5 on 44 mm PCD), silver.

Before you order: a 2.3 mm rotor needs a caliper with the clearance for it - every current Hope caliper (Evo, XCR, Tech 4) takes 1.8 to 2.3 mm rotors; check the maker's figure before fitting to another brand. A bigger rotor needs the matching brake mount.

Hope Technology warrants its rotors against defects in materials and workmanship. The braking surface is a wear item: Hope's minimum thickness is 1.5 mm on floating and fixed rotors and 2.9 mm on the vented rotor. Claims for this product go through Tune Cycles: return it to us with proof of purchase and we manage the claim with Hope's Australian distributor on your behalf.

  • One-piece laser-cut, heat-treated 410 stainless steel
  • 1.8 mm at 140 / 160 mm; 2.3 mm from 180 mm up (stiffer, better damping and heat stability)
  • Minimum thickness 1.5 mm
  • 6-bolt fitment, 6 x M5 on 44 mm PCD
  • 140 / 160 / 180 / 200 / 203 / 220 mm
  • The rotor Hope specifies for e-bikes at 180 mm and above
  • Made in Barnoldswick, UK
SpecificationValue
TypeFixed (one-piece)
Material410 stainless steel, laser cut, heat treated, ground
Thickness1.8 mm (140, 160 mm); 2.3 mm (180 mm and up); minimum 1.5 mm
Sizes140, 160, 180, 200, 203, 220 mm
Mount6-bolt, 6 x M5 on 44 mm PCD
Weight (Hope)140: 88 g, 160: 110.5 g, 180: 177.5 g, 200: 223 g, 203: 226.5 g, 220: 268 g
ColourSilver
SKU BSP-HOPRMS
Brand Hope
