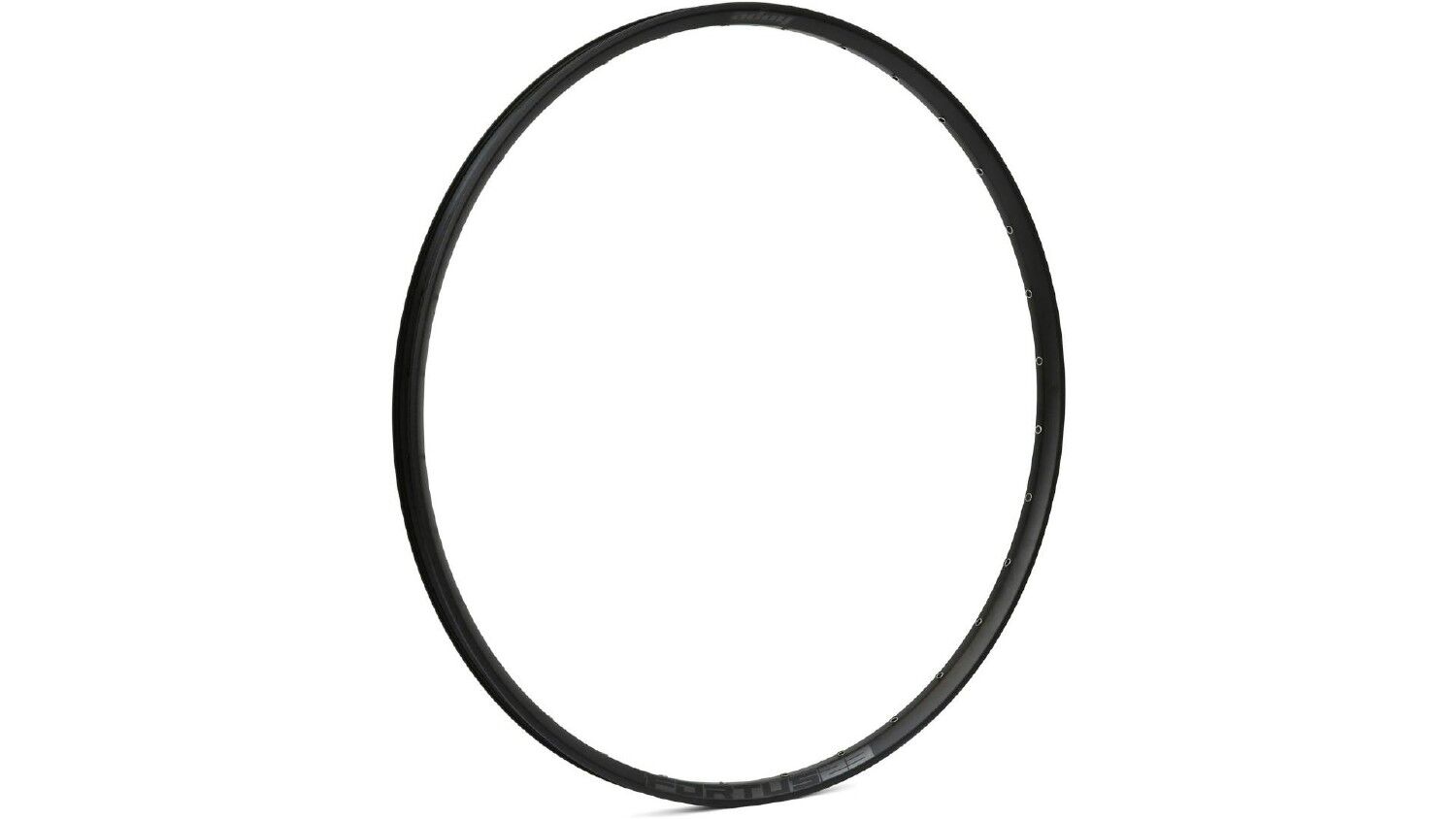

The same rim Hope builds its Fortus 23 Pro 5 wheels on, ready for your own custom build. A 23mm internal width suits XC and trail riding with 2.0"–2.35" tyres.

Highlights

  • 23mm internal width for 2.0"–2.35" tyres
  • Welded 6061 T6 aluminium with eyelets
  • Tubeless compatible
  • 27.5", 32 hole
  • ERD 566mm

Tough and dependable

Hope's Fortus rims are welded 6061 T6 aluminium with eyelets for strength and even spoke tension. Hope machine-builds and hand finishes its Fortus 23 wheels on this rim in Barnoldswick, UK, and rates it to a maximum tyre pressure of 55 psi (4.1 bar).

Compatibility & fit

For 27.5" disc-brake MTB wheel builds with 32-hole hubs. Tubeless setup needs rim tape and a valve (not included). Our workshop builds custom wheels – ask us about a build on this rim.

Want it fitted? Installation is a separate Tune Cycles workshop service – book a workshop slot and we will set it up properly.

Covered by the manufacturer's warranty against defects in materials and workmanship. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Welded 6061 T6 aluminium
  • Eyelets
  • Tubeless compatible (tape and valve required)
  • 23mm internal / 27.5mm external
  • 17mm profile depth
  • Black
BrandHope
ModelFortus 23
Part numberWHSP064
Diameter27.5"
Holes32
Internal width23mm
External width27.5mm
Profile depth17mm
ERD566mm
Weight420g
MaterialWelded 6061 T6 aluminium with eyelets
Recommended tyres2.0"-2.35"
Max pressure55 psi / 4.1 bar
ColourBlack
SKU BSP-HOPRIMF23W2732H
Brand Hope
Shipping Weight 0.7000kg
Shipping Width 0.700m
Shipping Height 0.080m
Shipping Length 0.700m
