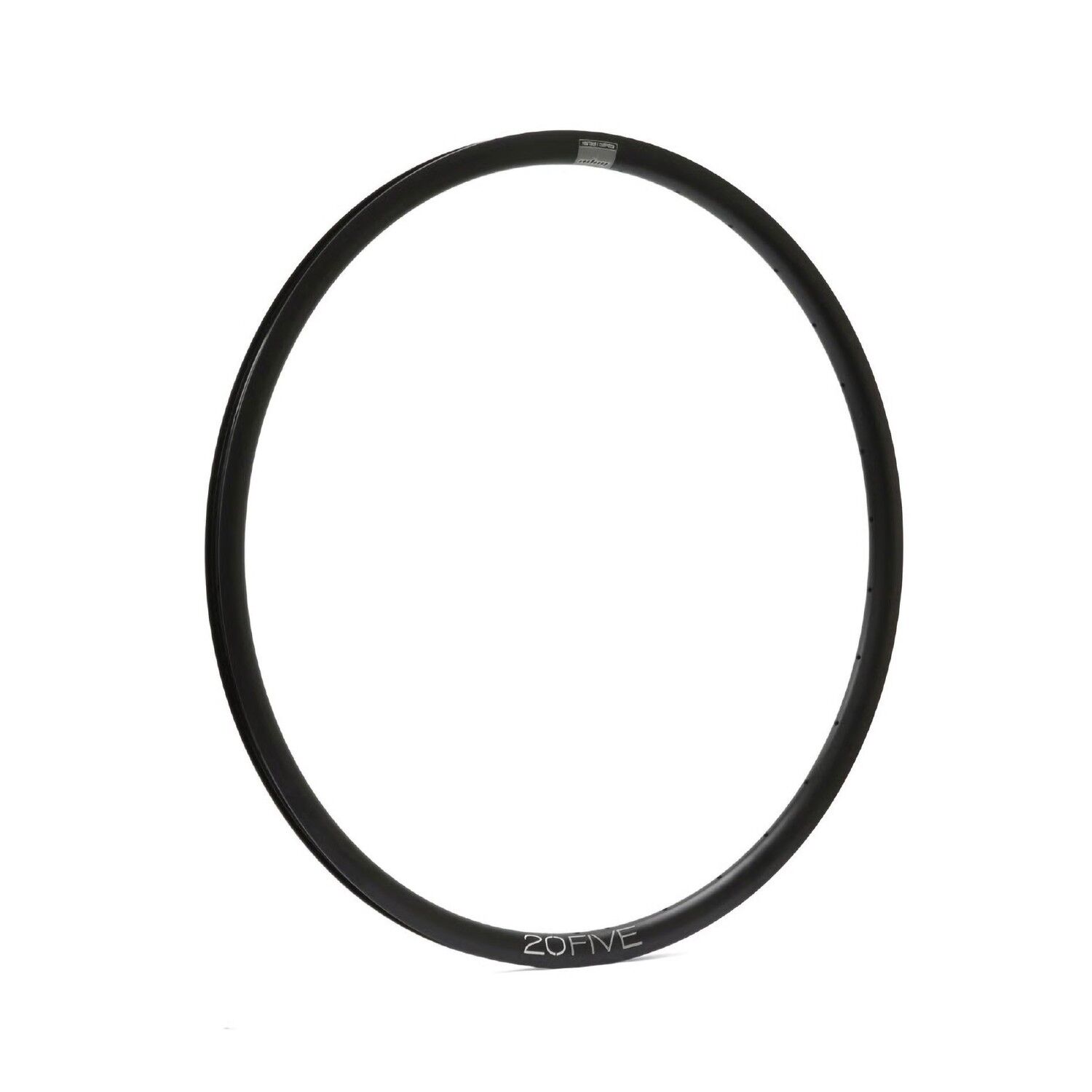

Build a tough, dependable road or gravel wheel on the same rim Hope uses for its 20FIVE wheelsets. Choose 24-hole or 32-hole drilling to match the hub of your choice.

Highlights

  • Tubeless ready
  • 20mm internal, 24mm external width
  • Disc brake specific
  • 24 or 32 hole drilling
  • ERD 594mm

For wider road and gravel tyres

The 20FIVE profile suits larger-volume road and cross tyres, giving good support at lower pressures. Hope builds and hand finishes its 20FIVE wheels on this rim in Barnoldswick, UK, pairing it with Pro 5 hubs, Sapim Race spokes and brass nipples.

Options

Spoke CountPart number
24HWHSP056
32HWHSP057

Compatibility & fit

For 700c disc-brake wheel builds with a hub that matches the drilling (24 or 32 hole). Tubeless setup needs rim tape and valves (not included). Our workshop builds custom wheels – ask us about a build on this rim; wheel building is a separate Tune Cycles workshop service – book a workshop service.

Covered by the manufacturer's warranty against defects in materials and workmanship. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • 700c (622) alloy rim
  • Tubeless ready (tape and valves required)
  • Disc brake only
  • 24H or 32H
  • ERD 594mm
BrandHope
Model20FIVE
Diameter700c
Internal width20mm
External width24mm
ERD594mm
Weight425g
BrakeDisc only
ColourBlack
OptionsSpoke Count: 24H, 32H
SKU BSP-HOP-P-20FIVE
Brand Hope
