Sold as a single rear wheel. This listing is one wheel, not a pair — the matching front wheel is listed separately.

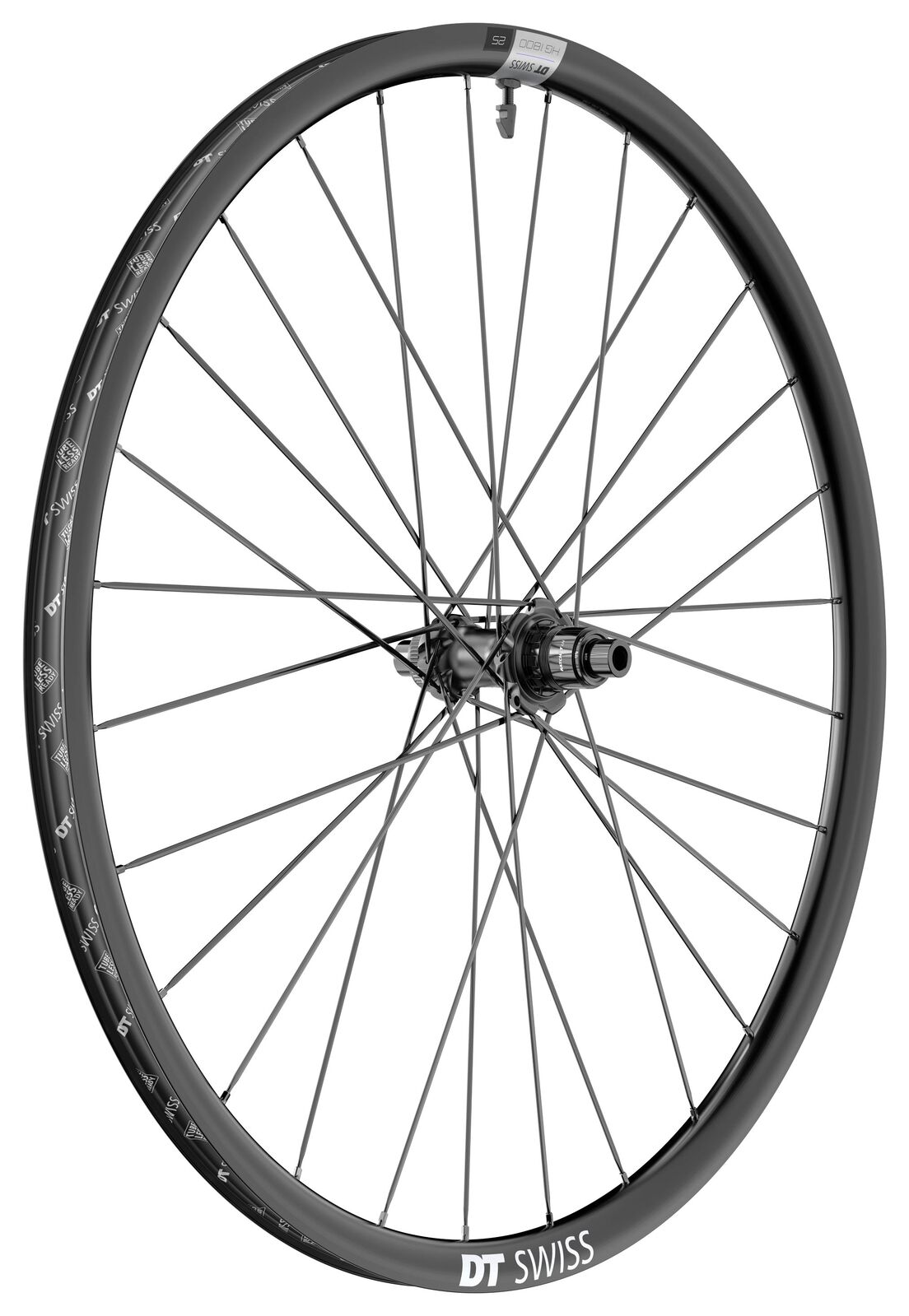

The DT Swiss HG 1800 SPLINE is the brand’s value aluminium gravel e-bike (Hybrid) wheel line. This is the rear wheel — 24 mm rim depth, in 700C with a 12×142 mm axle, Centre Lock rotor mount and a SRAM XDR freehub body.

Fit

  • Rim diameter: 700C
  • Brake type: Disc
  • Rotor mount: Centre Lock
  • Axle: 12×142 mm
  • Freehub body: SRAM XDR

Not sure it matches your bike? Send us your frame and drivetrain details and we will confirm before you order.

DT Swiss wheels are covered by DT Swiss's manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. Carbon rims may also be eligible for DT Swiss's Fair Share crash-replacement programme — ask us for the current terms. For any warranty claim or support, return the wheel to Tune Cycles and we will handle it with DT Swiss's Australian distributor.

  • One rear wheel — sold individually, not as a pair; the matching front wheel is a separate listing
  • DT Swiss HG 1800 SPLINE: value aluminium gravel e-bike (Hybrid) wheel line
  • 700C, 12×142 mm, Centre Lock
  • 24 mm rim depth
  • Freehub body: SRAM XDR
  • Genuine DT Swiss, supplied through the Australian distributor
Specification Details
Sold asSingle rear wheel (one wheel)
Model HG 1800 Spline 700C 24wd Disc Brake 12/142 Rear
Weight 1105 g
Material Aluminum
Rim Height 25 mm
Inner Width 24 mm
Outer Width 28 mm
Rim Diameter 29" / 700C
Axle System 12 mm Thru Axle
Built-in Dimension 142 mm
Recommended System Weight Max. 140 kg
SKU APO-DTW106-REAR
Barcode # 7.61E+12
Brand DT Swiss
