HB-M8010

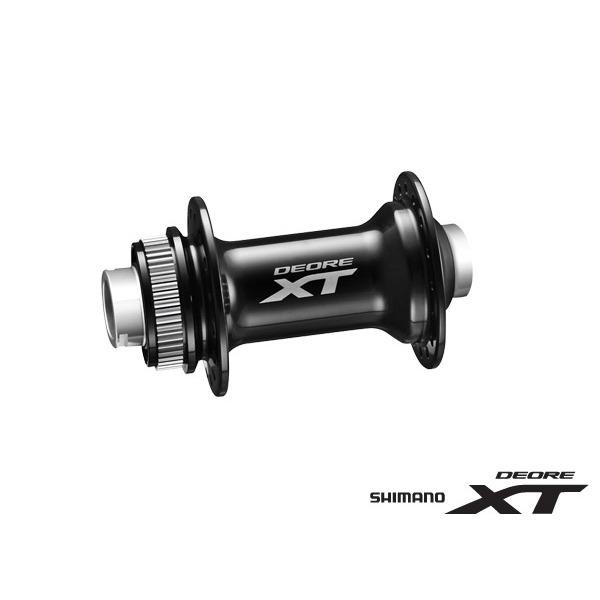

SHIMANO DEORE XT - Front Hub - CENTER LOCK - Disc Brake - 100x15 mm E-THRU Axle

With high quality seals and angular contact bearings, the SHIMANO DEORE XT front hub delivers durable, MTB performance.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • All-weather durability, reliable performance and lighter weight
  • Weight saving design
  • -22g lighter construction
  • High quality sealing and angular contact bearings
  • Weight: 164g (HB-M8000) 148g (HB-M8010)
  • MODEL NO: HB-M8010
  • DEORE XT M8000 Series
  • Series color
  • Average weight: 148
  • Remarks    Axle is supplied with front fork.
  • Brake type: CENTER LOCK disc brake
  • Axle Fixing method: 15 mm E-THRU
  • External serration disc brake rotor lock ring without
  • Flange distance: 60.2(mm)
  • Offset: 5.4(mm)
  • P.C.D. left / right: 44/44(mm)
  • Thru Axle (Length x Inner diameter ; mm) 100 x 15
  • Bearing_Cone: CBN
  • Disc mount Outer serration rotor lock ring without
  • Flange diameter: 52.8(mm)
  • Flange distance: 60.2(mm)
  • Internal grease sleeve
  • O.L.D: 100(mm)
  • Offset: 5.4
  • Spoke holes 32H
  • Spoke hole 36H
SKU SHM-EHBM8010EX
Barcode # 4550170450991
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
