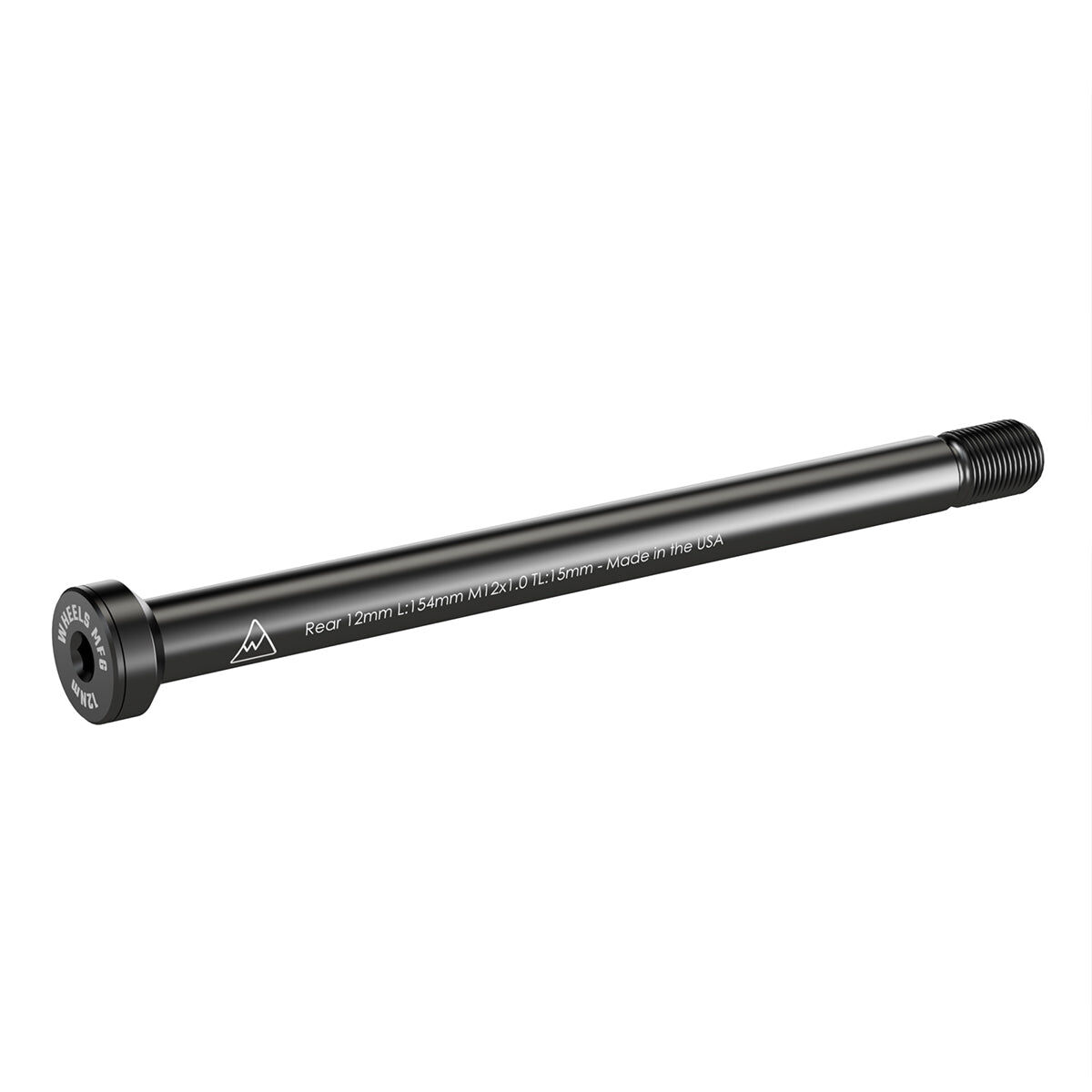

Wheels MFG Rear Thru-Axle – 12mm 1.0x154mm
SKU code: SCV-WMWA-RTA-12-154-1.0
$71.00
A direct OEM-style replacement rear thru-axle from Wheels Manufacturing, machined from 7075 aluminium with a captive rotating washer that protects your dropouts on installation.
Highlights
- Machined from 7075 aluminium, hard-anodised
- 5mm hex at both ends for tool-free removal with a hex key
- Captive rotating washer reduces friction and dropout damage during installation
- 12mm diameter across 19 thread pitch and length combinations
- Length compatible to ±2mm as a replacement for OEM thru-axles
Sizes & options
| Diameter | Thread pitch | Length | Washer |
|---|---|---|---|
| 12mm | 1.0mm | 154mm | not specified |
| 12mm | 1.0mm | 160mm | not specified |
| 12mm | 1.0mm | 162mm | not specified |
| 12mm | 1.0mm | 166mm | not specified |
| 12mm | 1.0mm | 168mm | not specified |
| 12mm | 1.0mm | 172mm | not specified |
| 12mm | 1.0mm | 174mm | Conical washer |
| 12mm | 1.0mm | 175mm | not specified |
| 12mm | 1.0mm | 180mm | not specified |
| 12mm | 1.0mm | 185mm | Flat washer |
| 12mm | 1.0mm | 194mm | Flat washer |
| 12mm | 1.0mm | 218mm | Conical washer |
| 12mm | 1.5mm | 164mm | not specified |
| 12mm | 1.5mm | 172mm | not specified |
| 12mm | 1.5mm | 229mm | Flat washer |
| 12mm | 1.75mm | 165mm | not specified |
| 12mm | 1.75mm | 172mm | not specified |
| 12mm | 1.75mm | 176mm | not specified |
| 12mm | 1.75mm | 180mm | not specified |
Compatibility & fit
All options are 12mm diameter, so thread pitch and length are what set each frame's axle apart. Match your frame's thread pitch and length (compatible to ±2mm) against the table above, or bring the bike in and our workshop will check it. Torque to 12 Nm max.
Wheels Manufacturing backs this product with a 1 year warranty, 30-day returns. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
- Machined from 7075 aluminium, hard-anodised for durability
- 5mm hex on both ends for easy installation and removal
- Captive rotating washer reduces friction and prevents dropout damage
- 12mm diameter across 19 thread pitch and length combinations
- Length compatible to ±2mm as an OEM replacement
| Material | 7075 aluminium, hard-anodised |
|---|---|
| Hex fitting | 5mm, both ends |
| Torque spec | 12 Nm max |
| Length tolerance | ±2mm |
| Diameter | 12mm (all options) |
| Option (Size) | Thread pitch 1.0mm: 154–218mm; 1.5mm: 164/172/229mm; 1.75mm: 165–180mm — see Sizes & options table for the full list |
| SKU | SCV-P-10912 |
| Brand | Wheels MFG |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
