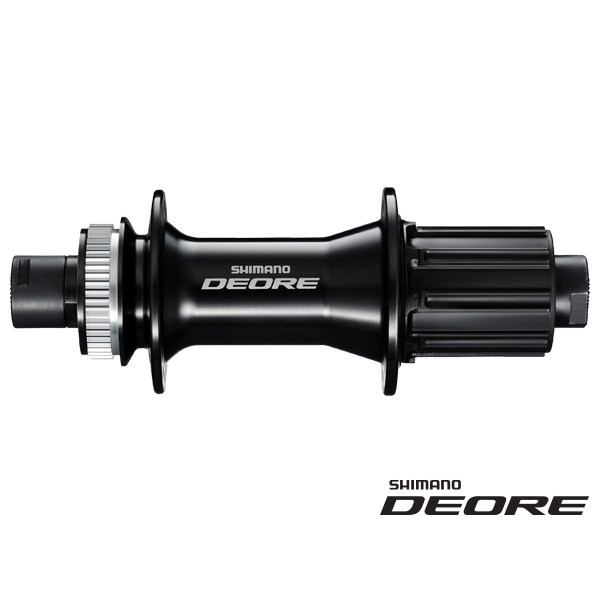

FH-M6010

The Shimano Deore FH-M6010 rear hub is a 10/11-speed hub that fits the Deore M6000 MTB groupset both visually and technically. It connects an anodised aluminium body with a steel axle for 12 x 142 mm over locknut dimensions and a freehub body made of steel, which is characterised by a fast engagement . The precision machined, greased and sealed cone bearings scores with its user-friendliness. Thanks to Shimano E-Thru technology, you can always rely on the torsional stiffness of this hub.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Durable and reliable
  • High-quality sealing and angular contact bearings
  • Precise, swift, and smooth shift response (FH-M6010)
  • Quick engagement
  • Greater wheel rigidity (FH-M6010-B)
  • 142 mm O.L.D. (FH-M6010)
  • MODEL NO: FH-M6010
  • DEORE M6000 Series
  • Color: Series Black
  • Brake type: CENTER LOCK disc brake
  • Axle fixing method: 12 mm E-THRU
  • Thru Axle(Length x Inner diameter)142 x 12 mm
  • Bearing_Cone: CBN
  • Brake Type: CENTER LOCK disc brake
  • External serration disc brake rotor lock ring without
  • Flange diameter Left/Right: 52.8/ 53.8(mm)
  • Flange distance: 57.4(mm)
  • Internal grease sleeve
  • Internal serration disc brake rotor lock ring without
  • O.L.D: 142(mm)
  • Offset: 6.4(mm)
  • P.C.D. left / right: 44/45(mm)
  • Quick engagement: X (more than 36 times/360 deg.)
  • Seal Freehub body: Contact
  • Seal Hub: Labyrinth & Contact
  • Speeds: 8-10 speed, MTB 11-speed
  • Spoke holes 32H
  • Thru Axle (Length x Inner diameter ; mm) 142 x 12
  • HG spline (Others)
  • Ratchet system type: Pawl ratchet
SKU SHM-EFHM6010B
Barcode # 4524667392668
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
