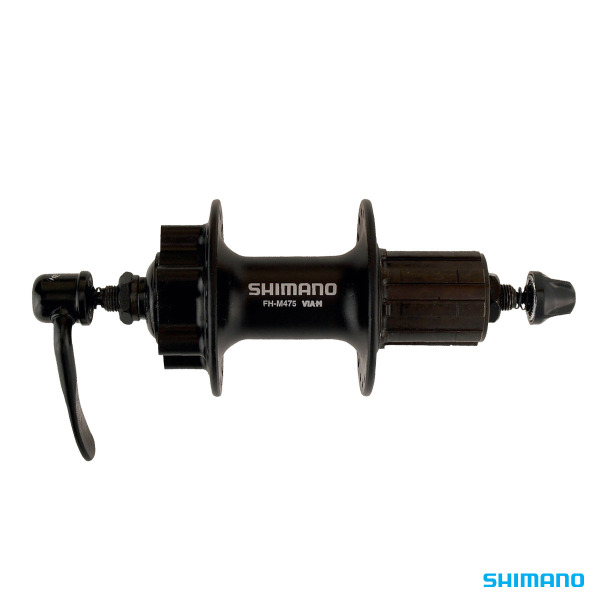

FH-M475

SHIMANO - Rear FREEHUB - 6-Bolt Disc Brake - Quick Release - 8/9/10-speed

For use with 6-bolt disc brake rotors and quick release dropouts, the SHIMANO FH-M475 rear hub is available in silver and black and compatible with 8, 9, and 10-speed cassettes.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • 6-bolt disc rotor mount
  • Contact sealing
  • FREEHUB design
  • Cup & Cone Bearing
  • Color options: Black, Silver
  • MODEL NO: FH-M475
  • SERIES: SHIMANO
  • Color: Black | Silver
  • Brake type: 6-bolt disc brake
  • Axle fixing method: Quick release
  • Brake Type: 6-bolt disc brake
  • External serration disc brake rotor lock ring without
  • Flange diameter Left/Right: 70.6(mm)
  • Flange distance: 57.1(mm)
  • Internal serration disc brake rotor lock ring without
  • O.L.D: 135(mm)
  • Offset: 6.8(mm)
  • P.C.D. left / right: 61/61(mm)
  • QR Skewer Length 166mm
  • QR Skewer Length 170mm
  • QR Skewer Length 173mm
  • QR lever Color: Black | Black
  • Seal Hub: Labyrinth & Contact
  • Speeds: 8-10 speed, MTB 11-speed
  • Spoke holes 32H
  • Spoke holes 36H
  • O.L.D: 125(mm)
  • Rear speeds: 8-10 speed, MTB 11-speed
  • Quick release skewer length 166(mm)
  • Quick release skewer length 170(mm)
  • Quick release skewer length 173(mm)
  • HG spline (Others)
  • Ratchet system type: Pawl ratchet
SKU SHM-EFHM475BZLL5
Barcode # 4524667870302
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
