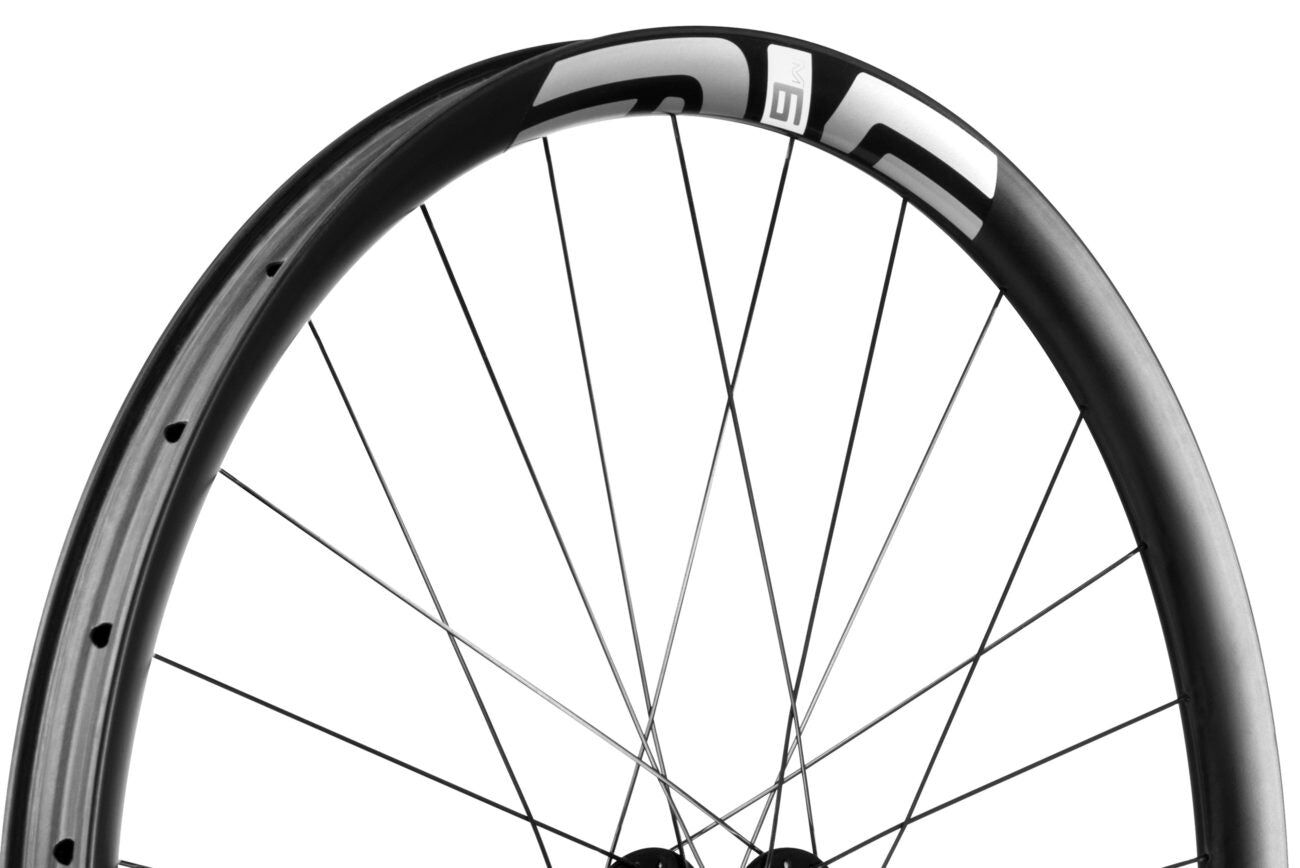

ENVE's definitive trail rim: traction and acceleration on the climbs, precision and control on the descent. The M630 comes in 27.5in and 29in, both with a 30mm internal width, 28-hole drilling and a hookless, tubeless-ready bead. Choose your wheel size above and the price, weight and spoke details update for that rim.

Highlights

  • 30mm internal width for 2.3–2.5in trail tyres (29in)
  • Wide Hookless Bead, tubeless-ready
  • 28-hole drilling for hand-built wheels
  • 383g (27.5in) or 408g (29in) rim weight

Fit and compatibility

Disc-brake MTB rim, 26.5mm deep, 38.5mm external width. ERD is 567mm (27.5in) or 605mm (29in) for spoke length. Sold as a rim only: pair it with a hub, spokes and nipples, or let us build it.

Built by Tune Cycles

Tune Cycles builds wheels by hand in Marrickville, Sydney. Buy the rim on its own, or send us your hub choice and riding and we'll build and true a complete wheel around it.

ENVE covers its rims with a lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage.

For warranty support, return the item to Tune Cycles and we'll manage the claim with ENVE for you. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • Brake: Disc
  • Rim depth: 26.5mm
  • Internal width: 30mm
  • External width: 38.5mm
  • Spoke holes: 28H
  • Effective rim diameter (ERD): 605mm
BrandENVE
ModelM630
BrakeDisc
Rim depth26.5mm
Internal width30mm
External width38.5mm
Spoke holes28H
BeadWide Hookless Bead, tubeless-ready
Supplied asRim only (no hub, spokes or tape)
SKU GSP-P-NV-M630-RIM
Brand ENVE
Shipping Weight 0.7000kg
Shipping Width 0.700m
Shipping Height 0.080m
Shipping Length 0.700m
