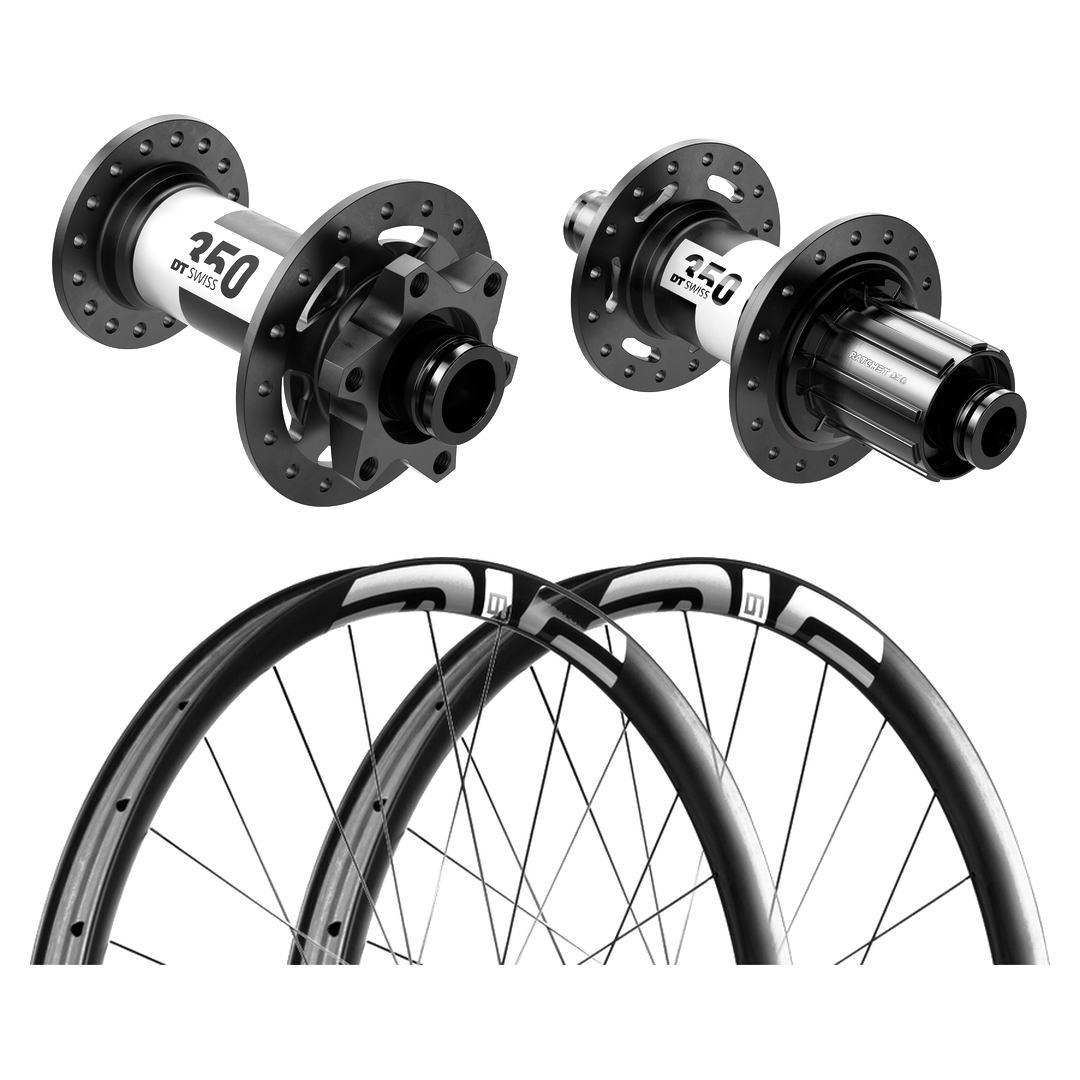

ENVE M630 DT 350 DEG hand-built wheelset

An ENVE M630 rim set laced 28-spoke front and rear to DT 350 DEG hubs, built by hand in our Marrickville workshop, tensioned, stress-relieved and trued before it leaves the bench. Our Pro wheel build and tubeless tape fitted are included and show as two free lines in your cart.

Before you order — what your bike decides

  • Wheel size — 29", 27.5" or mullet; mullet means 29" front and 27.5" rear. Read it off your tyre sidewall.
  • Rear axle — Boost 12 × 148 only on this wheelset: measure the inside of the dropouts.
  • Front axle — Boost 15 × 110 only on this wheelset: check the fork lowers.
  • Rotor mount — 6-bolt only on this wheelset: check your rotors.
  • Cassette — the freehub body follows it: Shimano 12-speed MTB is Micro Spline, SRAM Eagle is XD, Shimano 11-speed and older (and CUES LG) is HG. Offered here: Shimano Micro Spline.

Who it is for

For trail and all-mountain riding — ENVE's definitive trail rim: traction and acceleration on the climbs, precision and control on the descent.

The rider's questions

  • What tyres fit? ENVE recommends 2.3–2.5" tyres on the M630. Hookless rim: tubeless-ready tyres only, never above the tyre's marked maximum pressure.
  • How fast does the hub engage? 72 points of engagement — Ratchet DEG 72, 5° between clicks.
  • Warranty? ENVE rims for life for the original owner (5 years for a second owner), with ENVE's crash replacement programme; DT Swiss parts 24 months from purchase; our build work is guaranteed. Any claim comes back to Tune Cycles — see the Warranty tab.
  • How long does it take? Built to order from supplier stock — we confirm the build date by email when you order.

Kit includes

Options: rim diameter 29", 27.5" or mullet · tubeless valves (50 mm, up to 2).

Everything in the Wheelset box is built in. The rows under Upgrades are optional: tick what you want and the price updates. If you want us to lace a rim or hub you already own, that is a workshop job — contact us for a quote.

Sold separately (shown with this kit): tubeless sealant (Muc-Off No Puncture 140 ml), Deg Df Upgrade Kit (No Tool) — the engagement upgrade that fits this hub, SM-RT66 180 mm 6-bolt rotor, a cassette for your freehub body, tyres to suit (sizes above). Rotors: one per wheel, to match your rotor mount and your brake caliper's size range.

How we build it

Every wheel is laced by hand in Marrickville, brought up to tension evenly to the lower of the rim and hub limits, stress-relieved and trued, then checked again before it is packed. ENVE's own nylock nipples, supplied with the rims, seat in ENVE's moulded spoke holes. Tubeless tape (34 mm) is fitted to the rim; add valves and sealant and it is ready for tyres.

Tune Cycles builds and fits these wheels. If you are unsure what your frame, fork or drivetrain takes, ask us before you order.

ENVE rims carry ENVE's lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage. ENVE requires its own nipples for that warranty — they are what we build with. DT Swiss hubs are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty). Our build — lacing, tension and truing — carries our workmanship guarantee. Any claim comes back to Tune Cycles: bring the wheel to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.

  • ENVE M630 rims — 30 mm internal, 26.5 mm deep, hookless carbon; 29", 27.5" or mullet
  • DT 350 DEG hubs — 72 points of engagement, Ratchet DEG 72; 6-bolt; Boost 15 × 110 or Boost 12 × 148; freehub Shimano Micro Spline
  • Spokes — 28 × DT Competition front, 28 × DT Competition rear; ENVE's own external nylock nipples, supplied with the rims
  • Your bike's fit from the dropdowns: size — nothing is pre-selected, choose each one
  • Hand-laced, tensioned, stress-relieved and trued in Marrickville — Pro wheel build and tubeless tape included (two free lines in your cart)
  • Editable kit: the Upgrades rows are optional and the price follows what you tick
  Front Rear
Rim ENVE M630 ENVE M630
Rim construction one-piece carbon, moulded spoke holes for ENVE's external nylock nipples one-piece carbon, moulded spoke holes for ENVE's external nylock nipples
Tyre interface hookless — tubeless-ready tyres only hookless — tubeless-ready tyres only
Diameters offered 29", 27.5" or mullet 29", 27.5" or mullet
Internal width 30 mm 30 mm
Rim depth 26.5 mm 26.5 mm
ERD 27.5" 567 mm, 29" 605 mm 27.5" 567 mm, 29" 605 mm
Spoke holes 28H 28H
Hub DT 350 DT 350 DEG
Axle Boost 15 × 110 Boost 12 × 148
Rotor mount 6-bolt 6-bolt
Freehub bodies — Shimano Micro Spline
Engagement — 72 POE — Ratchet DEG 72
Spokes 28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes 28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes
Nipples ENVE's own external nylock nipples, supplied with the rims ENVE's own external nylock nipples, supplied with the rims
Tape fitted 34 mm tubeless tape 34 mm tubeless tape
Valves optional, 50 mm tubeless valves optional, 50 mm tubeless valves
Tyre width ENVE recommends 2.3–2.5" tyres on the M630 ENVE recommends 2.3–2.5" tyres on the M630
Intended use Trail Trail
Warranty ENVE rims for life for the original owner (5 years for a second owner), with ENVE's crash replacement programme; DT Swiss parts 24 months from purchase ENVE rims for life for the original owner (5 years for a second owner), with ENVE's crash replacement programme; DT Swiss parts 24 months from purchase
Built by Tune Cycles, Marrickville — Pro wheel build and tubeless tape included Tune Cycles, Marrickville — Pro wheel build and tubeless tape included
SKU WHL-BUILD-M630-350DEG
Brand ENVE
Shipping Weight 2.6000kg
Shipping Width 0.700m
Shipping Height 0.240m
Shipping Length 0.700m
