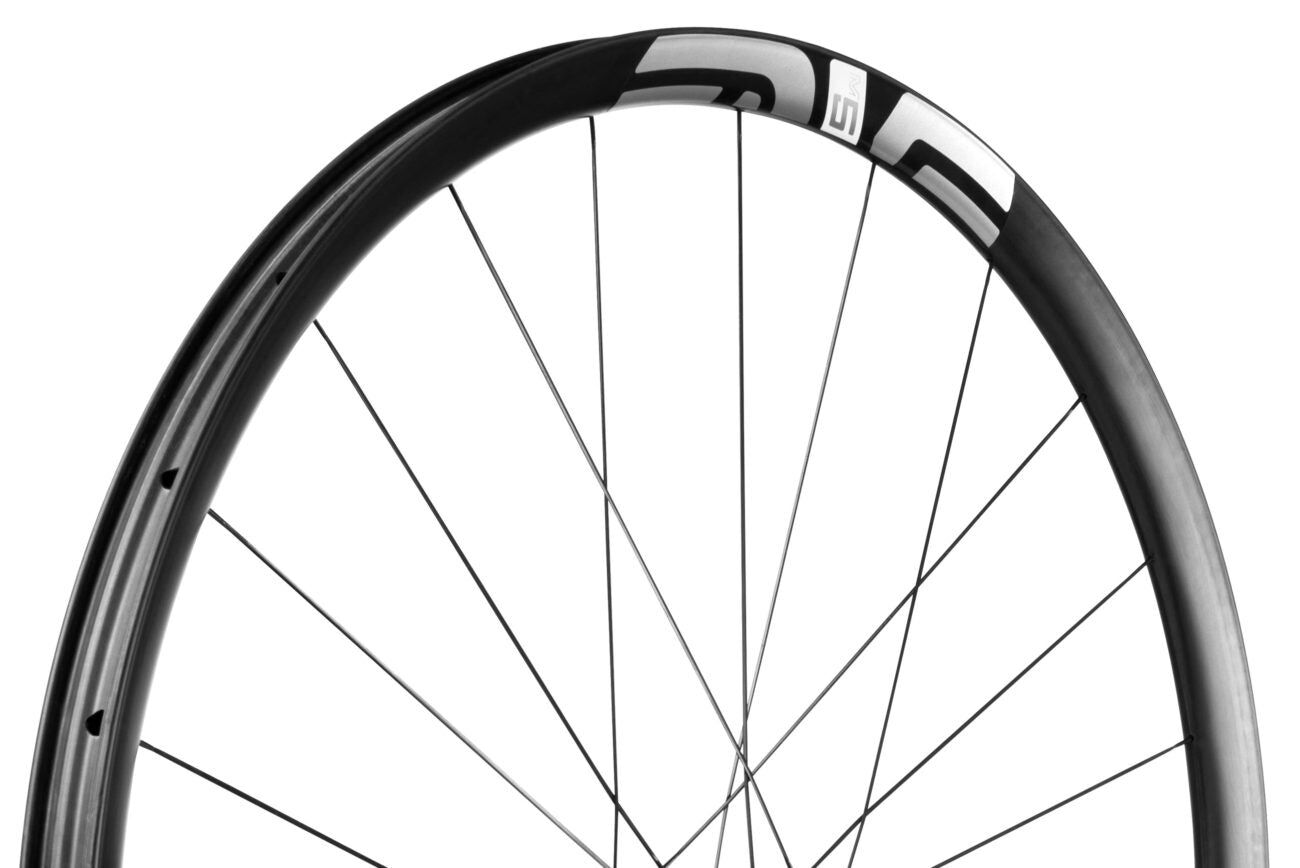

A purpose-built cross-country rim that's light enough to race and strong enough to ride every day, with its shape, laminate and spoke holes tuned for a more compliant ride.

Highlights

  • 25mm deep, 25mm internal for the tyre widths ENVE designed it around
  • 359g rim weight
  • 24-hole drilling for hand-built wheels

Fit and compatibility

This is a 29" disc-brake rim, drilled 24H with an effective rim diameter (ERD) of 608mm for spoke length. Tyres: 2.1in to 2.4in recommended. It's sold as a rim only: pair it with a hub, spokes and nipples, or let us build it.

Built by Tune Cycles

Tune Cycles builds wheels by hand in Marrickville, Sydney. Buy the rim on its own, or send us your hub choice and riding and we'll build and true a complete wheel around it.

Not sure which ENVE rim suits your bike or tyres? Tell us what you ride and we'll help you choose.

ENVE covers its rims with a lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage.

For warranty support, return the item to Tune Cycles and we'll manage the claim with ENVE for you. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • Brake: Disc
  • Rim depth: 25mm
  • Internal width: 25mm
  • External width: 33.5mm
  • Spoke holes: 24H
  • Effective rim diameter (ERD): 608mm
BrandENVE
ModelM525
Wheel size29"
BrakeDisc
Rim depth25mm
Internal width25mm
External width33.5mm
Spoke holes24H
Effective rim diameter (ERD)608mm
Rim weight359g
Tyre size2.1in to 2.4in recommended
Supplied asRim only (no hub, spokes or tape)
SKU GSP-NV-M525-29-RIM
Brand ENVE
Shipping Weight 0.7000kg
Shipping Width 0.700m
Shipping Height 0.080m
Shipping Length 0.700m
