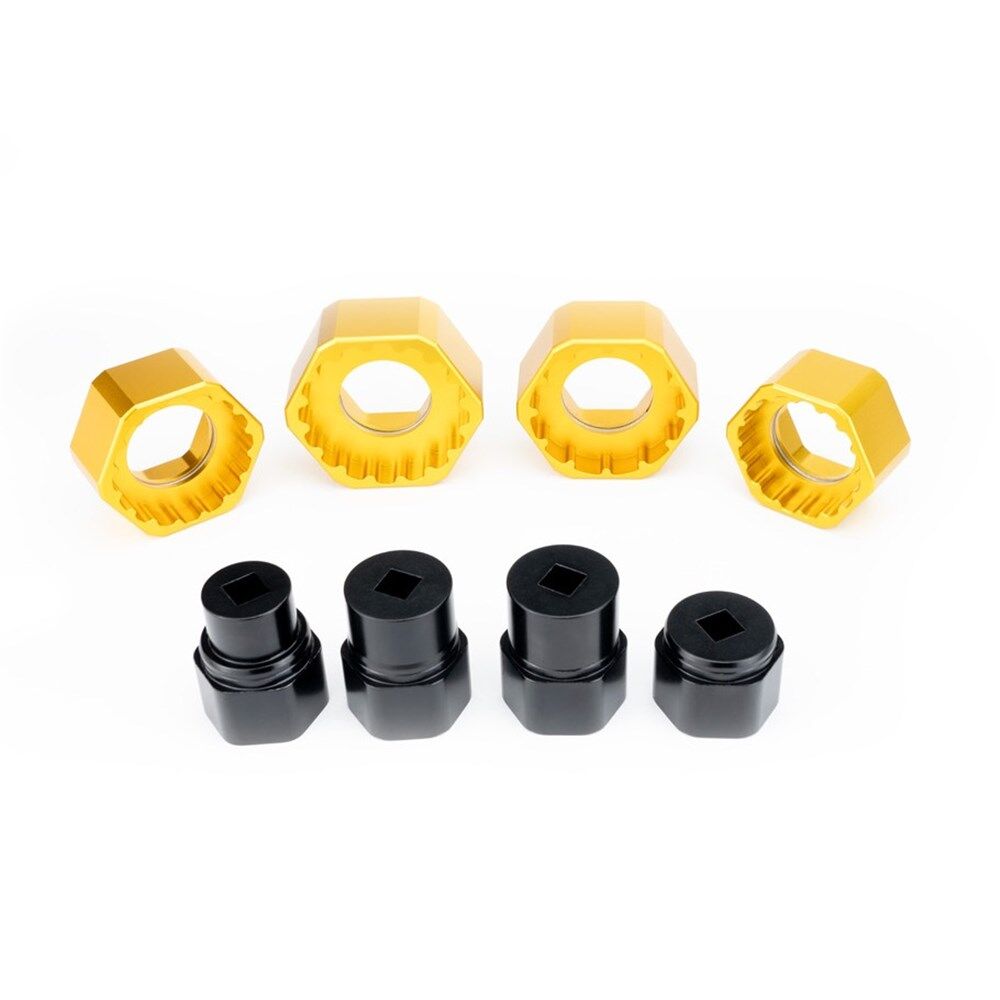

One kit for every Enduro bottom bracket. BBT-044 brings together all four Pro Cup Socket splines and every inner guide insert, so you can install and remove Enduro BB cups with a torque wrench and no marks on the cup.

Highlights

  • 52x16, 46x12, 44x16 and 41x16 splined cups
  • 24mm, 29mm, 30mm and universal snap-in inner guide inserts
  • 3/8" drive on each insert for a torque wrench or breaker bar
  • Machined from 6061-T6 aluminium, the same alloy as Enduro BB cups
  • Installs and removes any Enduro bottom bracket

Snap-in inner guides

Enduro's updated Pro Cup Socket design lets you switch between 24mm, 29mm and 30mm inner guide inserts, or a universal insert, to suit the crank spindle. The inserts snap in and keep the socket straight while you install or remove the cups, and each one carries a 3/8" drive.

No-mar construction

The whole tool is precision machined from 6061-T6 aluminium, the same alloy Enduro uses for its bottom bracket cups, for secure installation and removal without marring the cup.

Compatibility & fit

  • 52x16: T47, TorqTite BB386 and PF30
  • 46x12: BSA 29 and 30
  • 44x16: BSA24/FC32
  • 41x16: MAX-HIT BSA24/FC25

Spline applications as listed by Enduro. Check the spline on non-Enduro cups before use. If you'd rather not buy the tools, our workshop installs bottom brackets as a separate service.

Enduro Bearings lists its bearing removal and installation tools under a Limited Two-Year Warranty against wear and manufacturing defects, for the original owner with proof of purchase. Enduro recommends wiping the tools clean after each use and lightly greasing the threaded surfaces. Damage from misuse isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Lusty Industries, Enduro Bearings' Australian distributor.
  • Four splined cups: 52x16, 46x12, 44x16 and 41x16
  • Snap-in 24mm, 29mm, 30mm and universal inner guide inserts
  • 3/8" drive for a torque wrench or breaker bar
  • 6061-T6 aluminium for no-mar cup installation
  • Covers the full Enduro bottom bracket range
Enduro part numberBBT-044
Splined cups52x16, 46x12, 44x16, 41x16
Inner guide inserts24mm, 29mm, 30mm, universal
Drive3/8"
Material6061-T6 aluminium
Kit configuration52x16-29, 46x12-30, 44x16-24, 41x16-STD
SKU LUS-EBTOBBT044
Barcode # 195947061327
Brand Enduro Bearings
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
