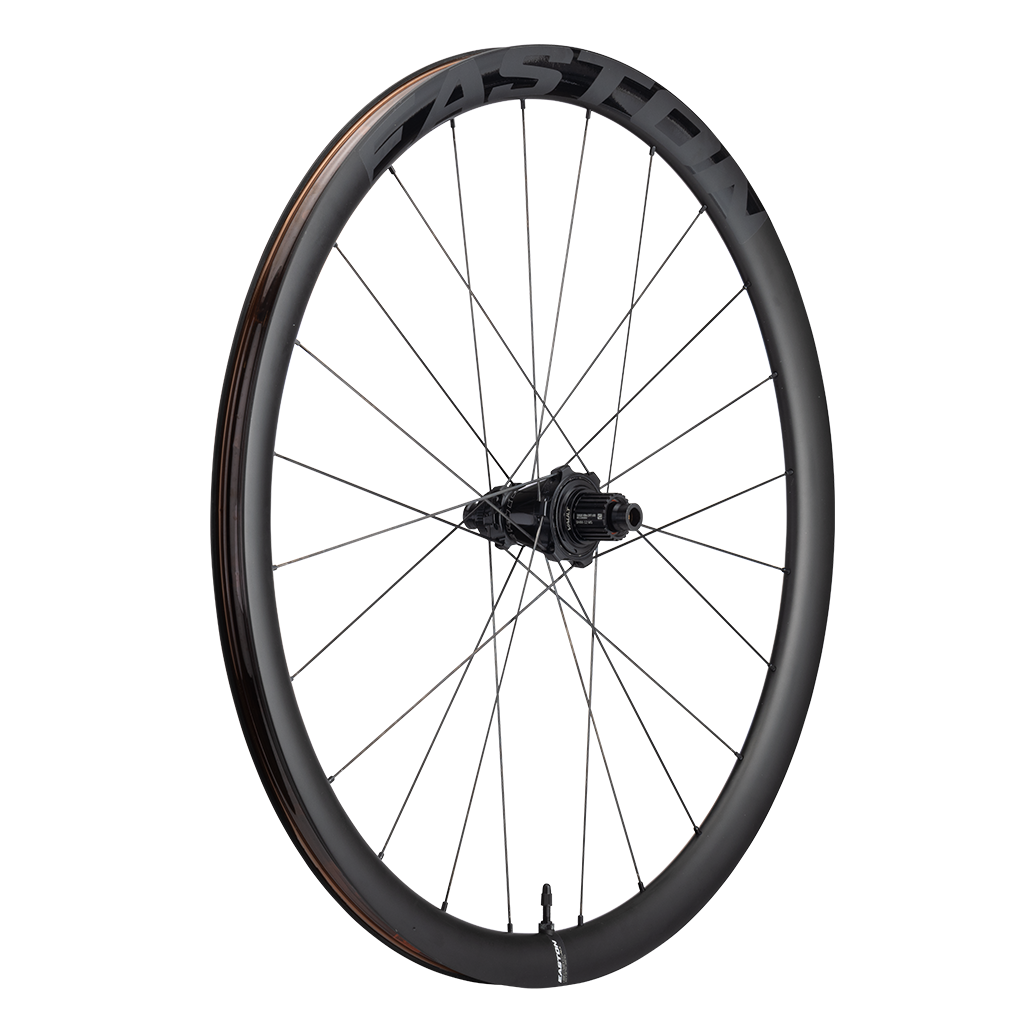

The EC90 ALX gives gravel riders an aero advantage. Battling headwinds, washboard roads and 10-hour days, Easton set out to balance rim depth and ride quality, and settled on a 36mm-deep carbon rim with a 24mm internal width shaped for gravel tyres.

Highlights

  • 36mm-deep carbon rim, 24mm internal width
  • Hookless tubeless-ready, for 30 to 53c tyres
  • Sapim CX-Ray bladed spokes
  • Easton Vault Centre Lock hub, 60-point engagement
  • Tubeless tape and valves included
  • 12x142mm; Shimano HG, Shimano Micro Spline or SRAM XDR

Aero for gravel

Easton chose 36mm of depth for a clear aerodynamic gain over shallower rims, without the extra weight, harsher ride and crosswind instability of deeper ones. Sapim CX-Ray bladed spokes lace the rims to Easton's quick-engaging Vault hubs.

Compatibility & fit

700c, 12x142mm thru-axle, Centre Lock rotors up to 180mm. Hookless tubeless-ready rim: Easton lists tyre compatibility as 30 to 53c. Choose the freehub to suit your cassette. Wheel or hub service, and fitting tyres, rotors and cassettes, are separate workshop services at Tune Cycles.

Sizes & options

FreehubAxle
Shimano HG12x142mm
Shimano Micro Spline12x142mm
SRAM XDR12x142mm
Easton covers carbon wheels under its Lifetime Warranty for the original owner, and Easton's product page adds that crashes are included. The Lifetime Warranty isn't transferable and doesn't cover slow wear and tear, or parts that are scratched but still work as intended. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ride Fox Australia, Easton's Australian distributor.
  • 36mm aero carbon rim, hookless tubeless-ready
  • Vault Centre Lock hub, 60-point engagement
  • Sapim CX-Ray bladed spokes
  • Tubeless tape, valves and extra spokes included
  • Shimano HG, Micro Spline or SRAM XDR
RimCarbon, hookless tubeless-ready
FinishMatte carbon, vinyl decals
Wheel size700c
Rim depth36mm
Internal width24mm
External width30mm
Tyre compatibility700c, 30 to 53c
SpokesSapim CX-Ray bladed
NipplesExternal Secure Lock aluminium
HubEaston Vault Centre Lock
Engagement60 points, 6°
BearingsSealed cartridge
Rotor mountCentre Lock, max 180mm
Wheelset weight1495 g (pair, XDR, without tape and valves, claimed)
IncludedEaston tubeless tape and valves, extra rear spokes
Axle12x142mm (rear)
FreehubShimano HG, Shimano Micro Spline or SRAM XDR
