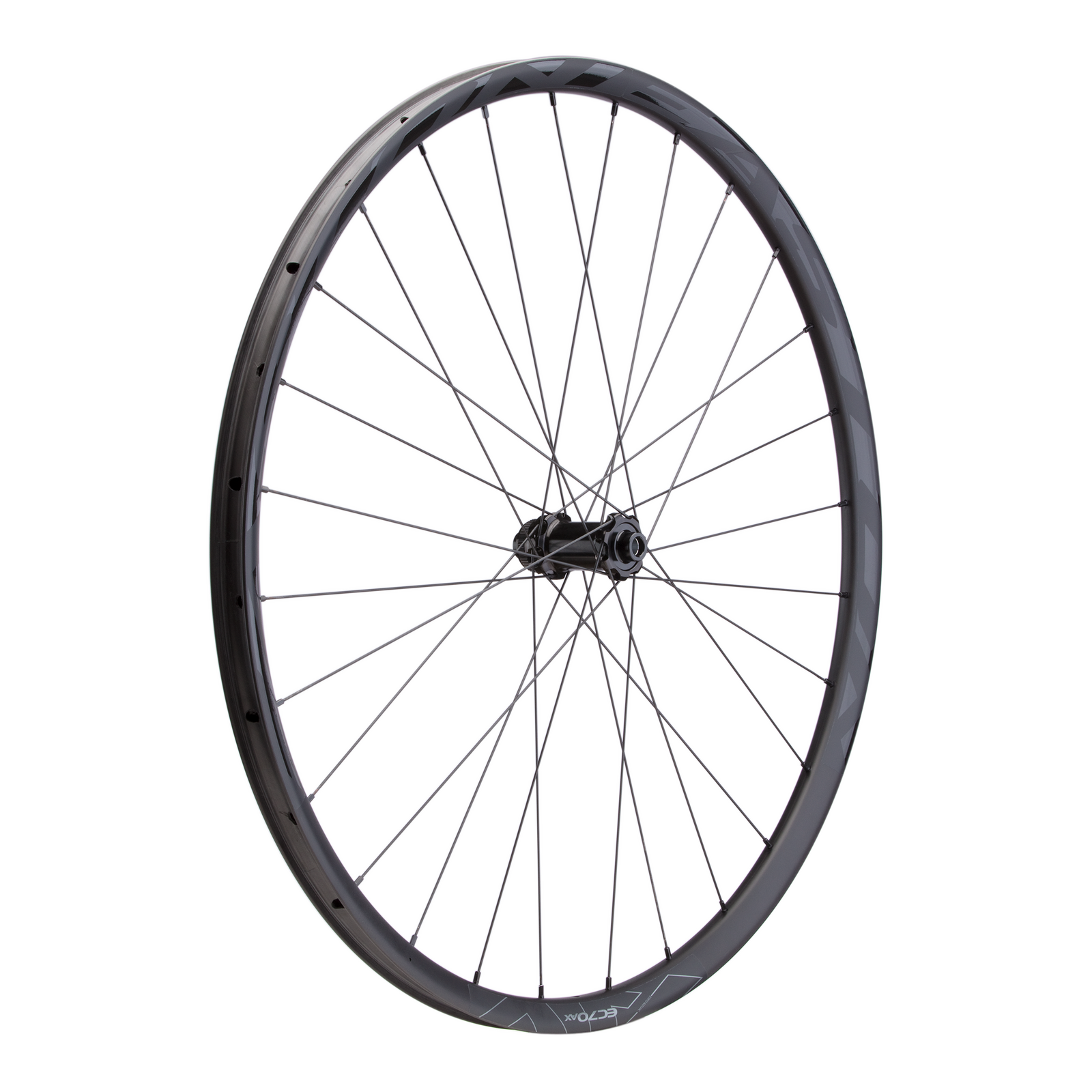

The EC70 AX wheel laces Easton's EC70 carbon rim to its proven X5CL hub with 28 double-butted Sapim straight-pull spokes in a 3-cross pattern, and Easton offers end cap and axle components for all major industry standards.

Highlights

  • EC70 carbon, tubeless-ready rim
  • 24mm internal, 28mm external width
  • 21mm rim depth
  • 28 Sapim straight-pull double-butted spokes, 3-cross
  • Easton X5 Centre Lock hub, sealed bearings
  • 12x100 or 15x100mm thru-axle

Wide carbon rim

The tubeless-ready carbon rim is 24mm wide inside and 28mm outside on a shallow 21mm profile, finished in gloss carbon with vinyl decals. Easton's pair weight is a claimed 1515 g.

Compatibility & fit

700c, Centre Lock disc rotors, tubeless-ready. Choose the axle to match your fork. Easton's rim pressure chart gives tyre pressure limits for its rims. Wheel or hub service, and fitting tyres, rotors and cassettes, are separate workshop services at Tune Cycles.

Sizes & options

AxlePosition
12x100mmFront
15x100mmFront
Easton covers carbon wheels under its Lifetime Warranty for the original owner, and Easton's product page adds that crashes are included. The Lifetime Warranty isn't transferable and doesn't cover slow wear and tear, or parts that are scratched but still work as intended. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ride Fox Australia, Easton's Australian distributor.
  • EC70 carbon tubeless-ready rim
  • 24mm internal width
  • X5 Centre Lock hub
  • 28 Sapim straight-pull spokes
  • 12x100 or 15x100mm
RimCarbon, tubeless-ready clincher
FinishGloss carbon, vinyl decals
Wheel size700c
Rim depth21mm
Internal width24mm
External width28mm
SpokesSapim straight-pull, double-butted; 28, 3-cross
NipplesDT external alloy
HubEaston X5 Centre Lock
BearingsSealed cartridge
Rotor mountCentre Lock
Wheelset weight1515 g (pair, claimed)
Axle12x100mm or 15x100mm (front)
SKU RFX-P-EA-EC70AX-F
Brand Easton
Shipping Weight 1.4000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
