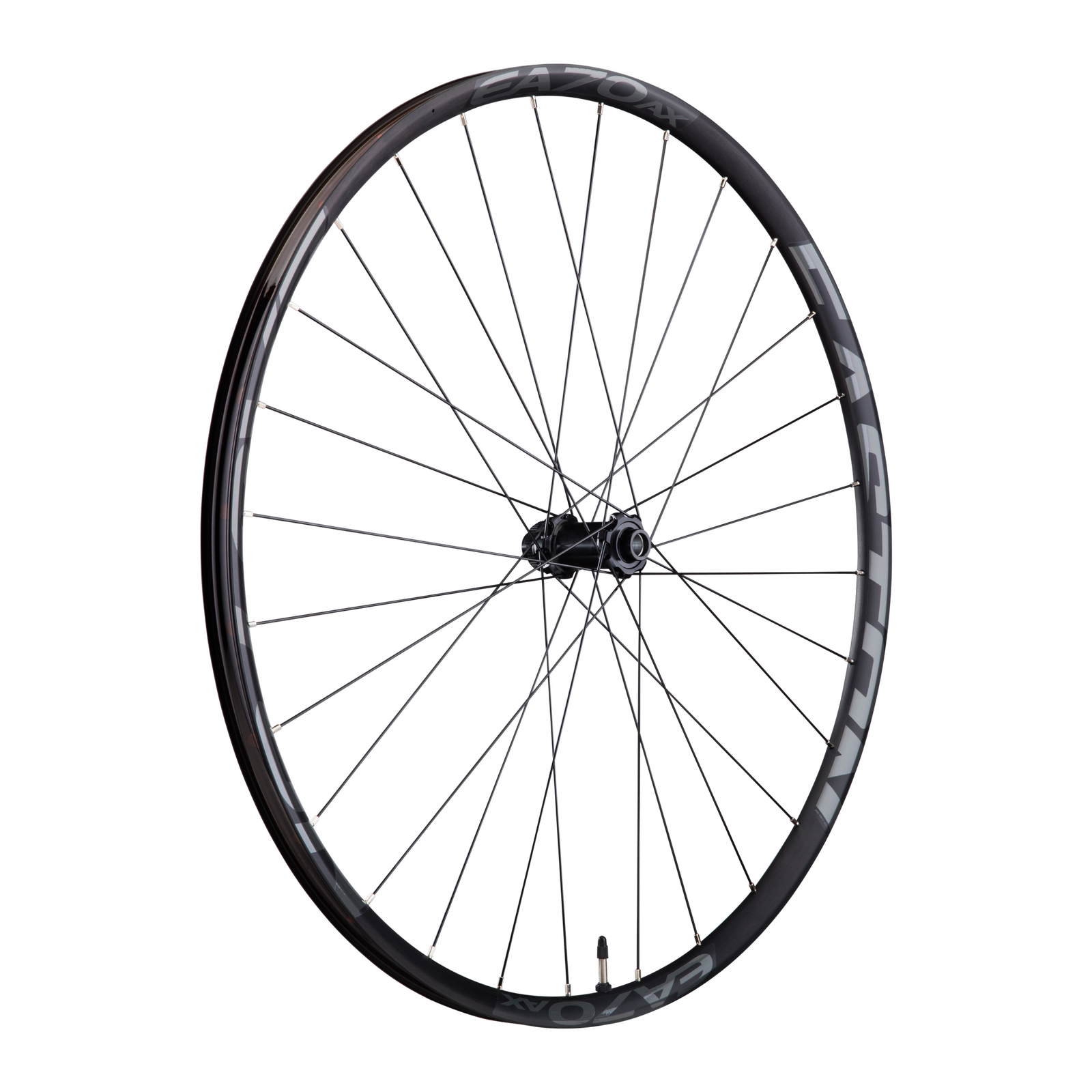

Find the road less travelled. The EA70 AX wheel has the durability to handle trail riding, translated for drop-bar bikes with a Centre Lock hub. From loaded bikepacking trips to washboard gravel descents, it's built to take it.

Highlights

  • Welded EA70 alloy rim, tubeless-ready
  • 24mm internal, 27.5mm external width
  • Optimal tyre profile for 35 to 50c tyres
  • 20mm rim depth
  • Straight-pull double-butted black spokes, 3-cross
  • Easton X5 Centre Lock hub

Room for big tyres

The welded tubeless-ready rim's generous 24mm internal width adds tyre volume and gives an optimal profile for 35 to 50c gravel tyres. Brushed black anodised with vinyl decals.

Compatibility & fit

700c, 12x100mm thru-axle, Centre Lock disc rotors, tubeless-ready. Wheel or hub service, and fitting tyres, rotors and cassettes, are separate workshop services at Tune Cycles.

Easton covers alloy wheels under its Limited Warranty, which covers defects in workmanship and materials from the wheel's intended use for two years from the date of purchase. It doesn't cover third-party modifications, repairs or replacement parts, scratches, normal wear and tear, or dings and flat spots in aluminium rims. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ride Fox Australia, Easton's Australian distributor.
  • Welded EA70 alloy tubeless-ready rim
  • 24mm internal width
  • For 35 to 50c tyres
  • X5 Centre Lock hub
  • 700c, 12x100mm
Wheel size700c
RimEA70 alloy, welded; disc tubeless-ready clincher
FinishBrushed black anodised, vinyl decals
Rim depth20mm
Internal width24mm
External width27.5mm
SpokesStraight-pull double-butted, black; 3-cross
NipplesSilver brass
HubEaston X5 CL
Rotor mountCentre Lock
Axle12x100mm (front)
Wheelset weight1760 g (700c pair, claimed)
SKU RFX-EA8022734
Brand Easton
Shipping Weight 1.4000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
