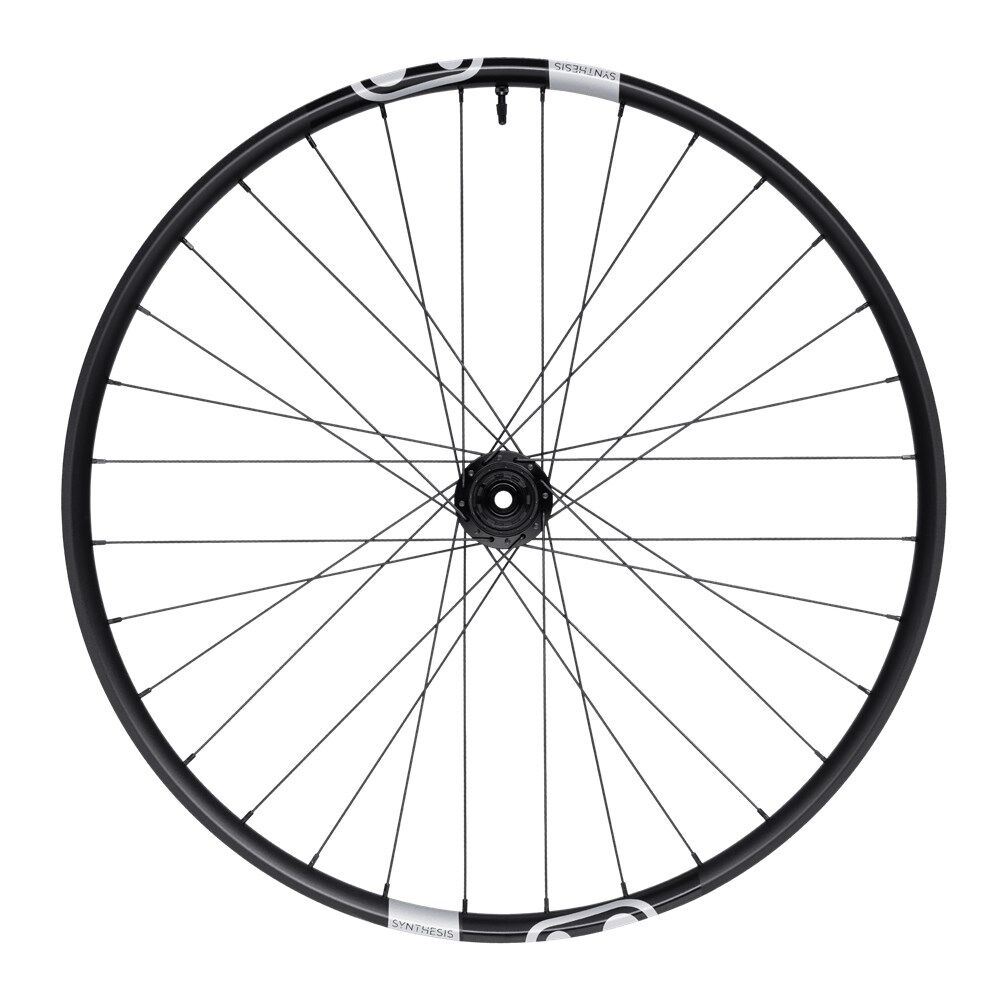

The Synthesis DH Alloy 2.0 rear wheel is built stiff and strong for downhill racing and riding, giving you stability through high-speed impacts and hard cornering. Reinforced rims and spokes and a DH-specific profile are aimed squarely at durability.

Highlights

Rear-specific downhill wheel from the Synthesis tuned system
6069 aluminium alloy rim, shot-peened, with thicker walls in impact zones
Crankbrothers Ratchet hub: 10° engagement, 6.6° with the 54T kit
Boost 148 x 12 mm with SRAM XD freehub body
32 Pillar SR TB 2018 spokes, lifetime rim warranty

Stiff where it counts

Crankbrothers tunes each Synthesis wheel for its end of the bike. The rear gets more stiffness to absorb peak loads and track at speed, with a narrower 29.5 mm inner width that sharpens the tyre edge for grip. This DH wheel comes in Boost 148 x 12 mm spacing.

Ratchet hub

The Crankbrothers Ratchet hub engages every 10° out of the box. Fit the Crankbrothers 54T Ratchet Upgrade Kit (sold separately) for 6.6° engagement. Crankbrothers offers replacement Ratchet freehub bodies in Shimano HG, HG Road and Micro Spline and SRAM XD and XDR.

Compatibility & fit

Position: rear wheel only
Wheel size: 27.5 (584 mm ETRTO)
Axle: Boost 148 x 12 mm
Freehub body: SRAM XD
Rotor mount: 6-bolt
Tyre, cassette and rotor are sold separately

Our Marrickville workshop can fit the cassette, rotor and tyre, swap the freehub body if you change drivetrains, and service the hub bearings. Fitting is a separate workshop service and is not included in the price.

Crankbrothers gives the original owner a lifetime warranty on Synthesis Alloy 2.0 rims. It covers manufacturing defects and rim damage from a crash during normal riding, including dents or flat spots that stop the tyre holding air, and cracks or seam separation at the spoke holes. It does not cover normal wear and tear, improper assembly or maintenance, modifications or labour, and the hub and other components carry their own standard manufacturer warranty. Proof of purchase is required and terms can differ by country. For warranty support, return the product to Tune Cycles and we'll manage the claim with Lusty Industries, Crankbrothers' Australian distributor.

Rear-specific tuned wheel for downhill riding and racing
6069 alloy rim with shot-peened finish
29.5 mm inner width, 20 mm rim height
Ratchet hub with 10° engagement, upgradeable to 6.6°
Lifetime rim warranty

Model	Synthesis DH Alloy 2.0 Ratchet
Position	Rear
Wheel size	27.5 (584 mm ETRTO)
Axle	Boost 148 x 12 mm
Freehub body	SRAM XD
Hub	Crankbrothers Ratchet
Engagement	10° (6.6° with 54T upgrade kit)
Rotor mount	6-bolt
Rim material	6069 alloy
Inner rim width	29.5 mm
Rim height	20 mm
Spoke count	32
Spokes	Pillar SR TB 2018
Colour	Black
Weight	1100 g (27.5, claimed)
Warranty	Lifetime (rim only)

SKU	LUS-17124
Barcode #	641300171245
Brand	Crankbrothers
Shipping Weight	1.4000kg
Shipping Width	0.700m
Shipping Height	0.120m
Shipping Length	0.700m
