Crankbrothers Synthesis DH Carbon Front/Rear Specific MTB Rim – 27.5in Rear 32H
SKU code: LUS-17040

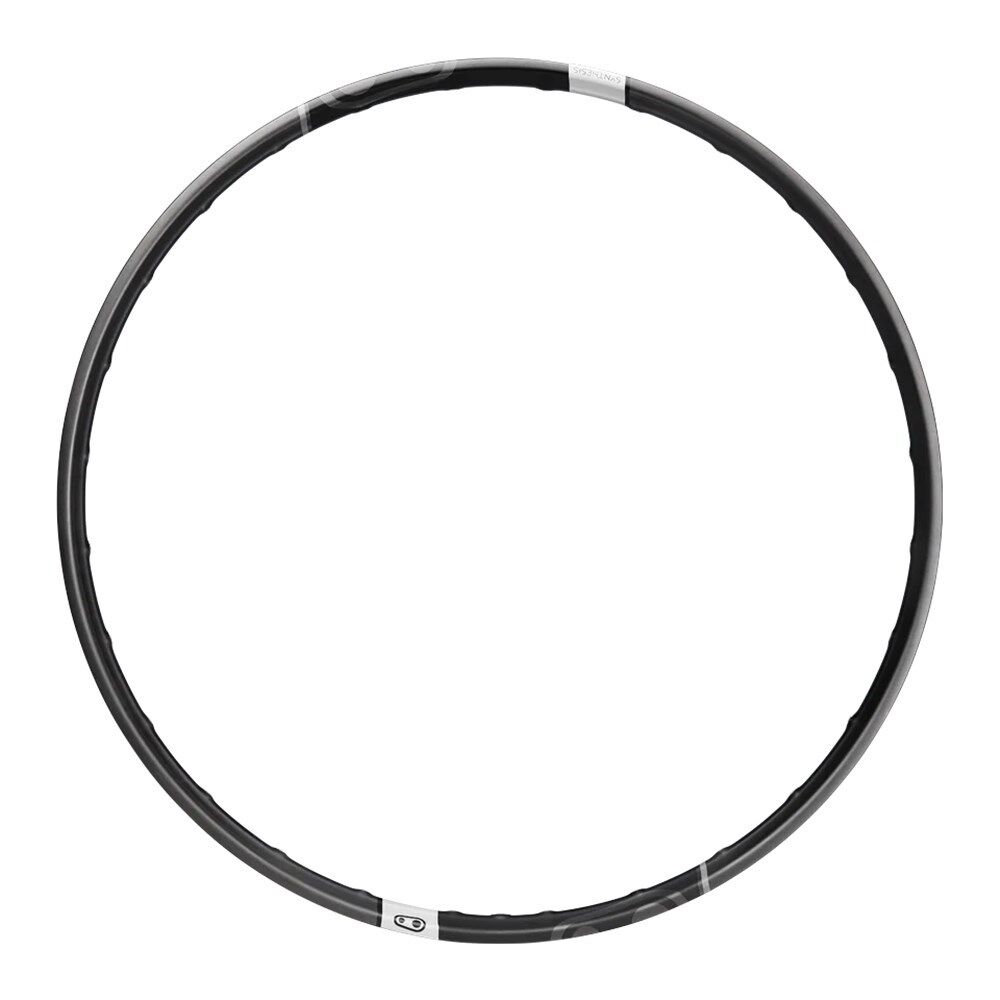

Synthesis DH Carbon is the downhill rim from Crankbrothers' tuned wheel system. Front and rear rims each get their own design, so the front wheel stays compliant for handling, grip and control in turns, while the rear supports peak loads and tracks straight at speed.
Highlights
- Front- and rear-specific carbon rims for downhill
- 31.5mm inner width and 39.5mm outer width, front and rear
- Tubeless ready
- 28 spoke holes on front rims, 32 on rear rims
- 27.5in and 29in options
- Crankbrothers lifetime warranty on Synthesis carbon rims
Tuned for downhill
Crankbrothers builds Synthesis front and rear rims with their own rim profiles, carbon layups and spoke counts, putting compliance and stiffness where each is rewarded best. Up front that means a compliant rim that improves handling and grip in turns; at the rear, a stiffer rim that supports peak loads and adds stability at speed.
Sizes & options
Each option is a single rim for one position. Hole count and weight depend on position and wheel size.
| Option | Position | Wheel size (ETRTO) | Spoke holes | ERD | Weight |
|---|---|---|---|---|---|
| 27.5in Front 28H | Front | 27.5in (584mm) | 28 | 563mm | 515g |
| 29in Front 28H | Front | 29in (622mm) | 28 | 603mm | 550g |
| 27.5in Rear 32H | Rear | 27.5in (584mm) | 32 | 563mm | 555g |
| 29in Rear 32H | Rear | 29in (622mm) | 32 | 603mm | 590g |
Compatibility & fit
This is a rim only. It is not laced, and the hub, spokes and nipples are separate. Front rims are drilled 28 hole and rear rims 32 hole, so pick the rim that matches its position and your hub's hole count. Crankbrothers' Synthesis rim profile chart lists a 2.3in to 2.5in tyre range for the DH rim, and Crankbrothers wheels are for disc brakes only.
Our workshop builds wheels and can lace this rim to your hub. Wheel building is a separate workshop service and is not included in the price.
- Front- and rear-specific downhill rims
- Carbon construction, tubeless ready
- 31.5mm inner, 39.5mm outer width
- 28 hole front, 32 hole rear
- 27.5in or 29in
- Lifetime rim warranty
| Rim material | Carbon |
|---|---|
| Intended use | Downhill |
| Wheel sizes (ETRTO) | 27.5in (584mm), 29in (622mm) |
| Inner width | 31.5mm (front and rear) |
| Outer width | 39.5mm |
| Rim height | 19mm |
| Spoke holes | 28 (front), 32 (rear) |
| ERD | 563mm (27.5in), 603mm (29in) |
| Tubeless | Ready / compatible |
| Tyre width range | 2.3in to 2.5in |
| Weight | 515g (27.5 front), 550g (29 front), 555g (27.5 rear), 590g (29 rear) |
| Brakes | Disc only |
| Warranty | Lifetime (rim) |
| SKU | LUS-P-CB-SYN-C-DH-RIM |
| Brand | Crankbrothers |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.080m |
| Shipping Length | 0.700m |
