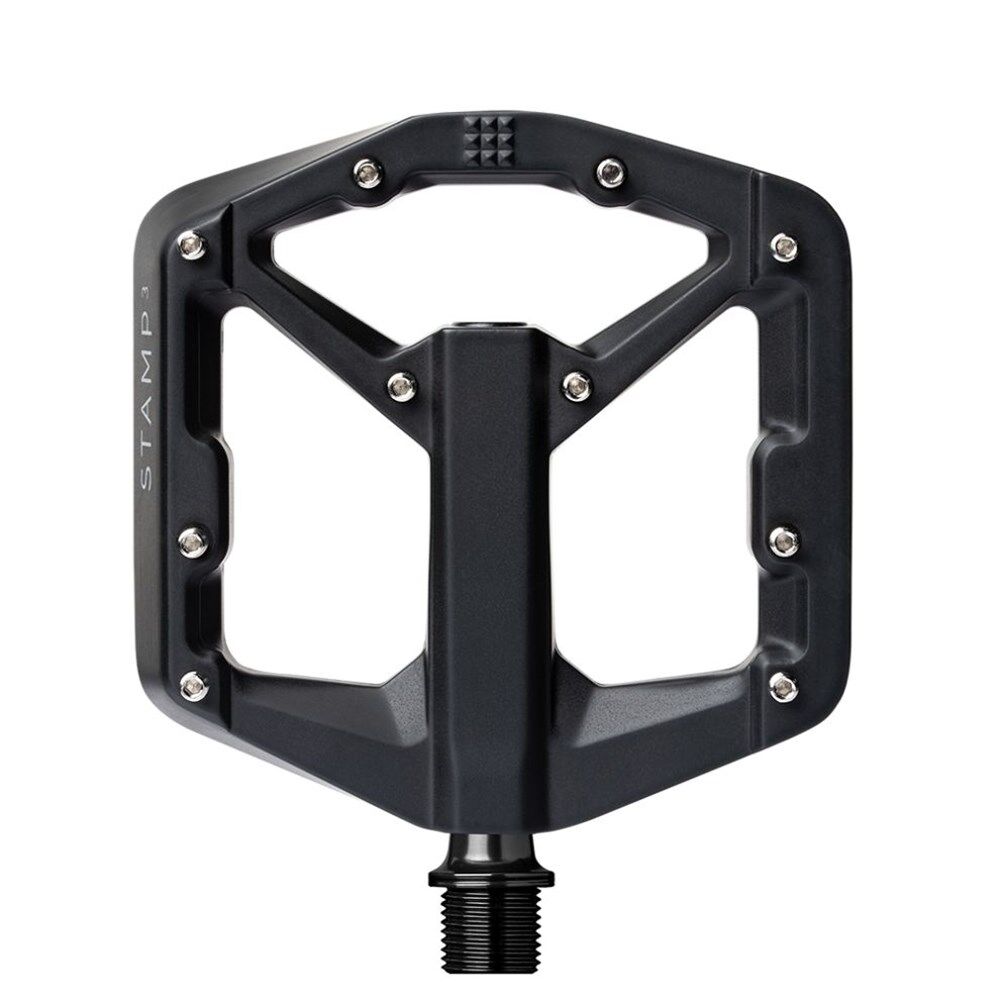

Crankbrothers Stamp 3 Magnesium Flat Pedals Black – Small
SKU code: LUS-16368
The Stamp 3 brings Crankbrothers' size-specific platform to a magnesium body, keeping weight down while giving your shoe a concave, well-pinned platform to sit in.
Highlights
- Die-cast AM60B magnesium alloy body for weight reduction
- Size-specific platform: Small or Large to match your shoe size
- 16mm body profile with a concave shape
- 10 adjustable pins per side
- Igus inboard bearing and double cartridge outboard bearing, with an internal seal
- Forged SCM 415 chromoly steel spindle
Why size-specific
Crankbrothers analysed outsole profiles from leading mountain bike shoe brands and found two distinct surface areas, so the Stamp comes in two platform sizes to suit the full range of shoe sizes.
Built to last
An internal seal keeps water and grit out, the inboard bearing is chosen for wear resistance and vibration damping, and the outboard bearing is designed specifically for pedals. When it is time for an overhaul, Crankbrothers' Stamp 2/3 (V2) refresh kit suits this pedal, and Tune Cycles' workshop can service them for you.
Compatibility & fit
Crankbrothers recommends Small for shoe sizes US 5-10 (EU 37-43) and Large for US 10-15 (EU 43-49). There is no rider weight restriction. Fitting is a separate workshop service and is not included in the price.
Sizes & options
| Small | 100mm x 100mm footprint, 351g per pair, shoe US 5-10 / EU 37-43 |
|---|---|
| Large | 114mm x 111mm footprint, 386g per pair, shoe US 10-15 / EU 43-49 |
Both sizes come in Black.
- AM60B magnesium alloy body
- Small and Large platform sizes
- 16mm concave body profile
- 10 adjustable pins per side
- Internal seal with Igus and cartridge bearings
- No rider weight restriction
| Body material | AM60B magnesium alloy |
|---|---|
| Spindle material | Forged SCM 415 chromoly steel |
| Footprint (Small) | 100mm x 100mm |
| Footprint (Large) | 114mm x 111mm |
| Body profile | 16mm |
| Traction pins | 10 adjustable per side |
| Pin length | 10mm |
| Inner bearing | Igus bearing |
| Outer bearing | Double cartridge bearing |
| Endcap | T15 |
| Max rider weight | No restriction |
| Weight (Small) | 351g per pair |
| Weight (Large) | 386g per pair |
| Colour | Black |
| Warranty | 5 years |
| SKU | LUS-P-CB-STAMP3-G2-MG |
| Brand | Crankbrothers |
| Shipping Weight | 0.4500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.150m |
