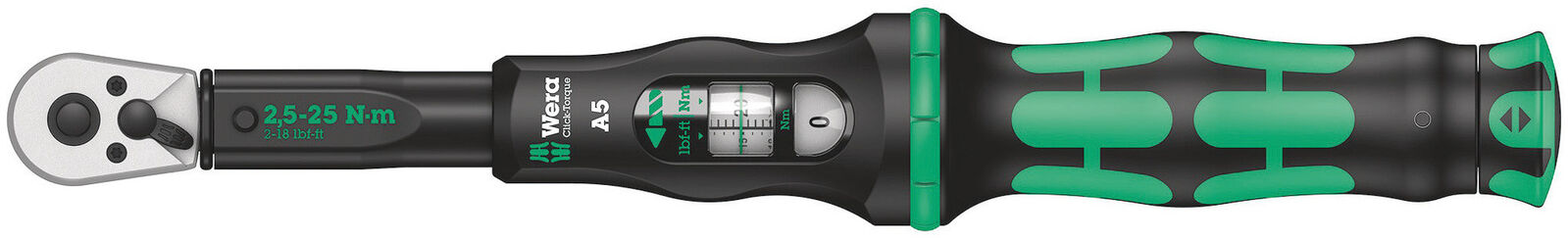

A 1/4" click torque wrench covering 2.5 to 25 Nm, the range Wera also uses in its Bicycle Set Torque 1. Easy to set, easy to read, with a release you can hear and feel.

Highlights

  • Measuring range 2.5–25 Nm, ±4% to DIN EN ISO 6789-1:2017-07
  • 1/4" square drive
  • 45-tooth reversible ratchet
  • Audible and tactile clicks when setting; clear release signal
  • Clockwise (right-hand) torque control
  • Two-component ergonomic handle

Click-Torque

Set the torque with audible and tactile clicks at each scale mark, and the robust release mechanism gives a clear audible and tactile signal when it's reached. Accuracy is to DIN EN ISO 6789-1:2017-07.

Compatibility & fit

Takes 1/4" square-drive sockets and bit sockets. Torque control is clockwise only; the ratchet reverses for loosening. Check the torque printed on your component; if it falls within 2.5–25 Nm, this wrench covers it.

Wera warrants its torque tools against defects in materials and workmanship. Normal wear, misuse, modification and damage from abuse are not covered. Like any torque tool, it should be checked and recalibrated periodically; Wera Tools Australia names Zenith Sales and Calibration Pty Ltd as its approved Australian repair and calibration centre for Wera torque tools. This sits alongside your rights under the Australian Consumer Law.

For warranty support, return the product to Tune Cycles and we'll manage the claim with Wera's Australian distributor.

  • Measuring range 2.5–25 Nm, ±4% to DIN EN ISO 6789-1:2017-07
  • 1/4" square drive
  • 45-tooth reversible ratchet
  • Audible and tactile clicks when setting; clear release signal
  • Clockwise (right-hand) torque control
  • Two-component ergonomic handle
Drive1/4" square
Range2.5–25 Nm (1–18 lbf ft)
Scale graduation1 Nm
Accuracy±4% (DIN EN ISO 6789-1:2017-07)
Ratchet45 teeth, reversible
Torque directionClockwise
Length290 mm
Wera article no.05075604001
SKU FES-W-05075604001
Brand Wera
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
