Chris King's Gen 4 conversion kit changes the freehub standard on an R45D 6-Bolt Gen 2 or R45D Centrelock hub, using a pre-assembled axle, driveshell and adjusting clamp for a plug-and-play swap — no full hub rebuild needed.

Highlights

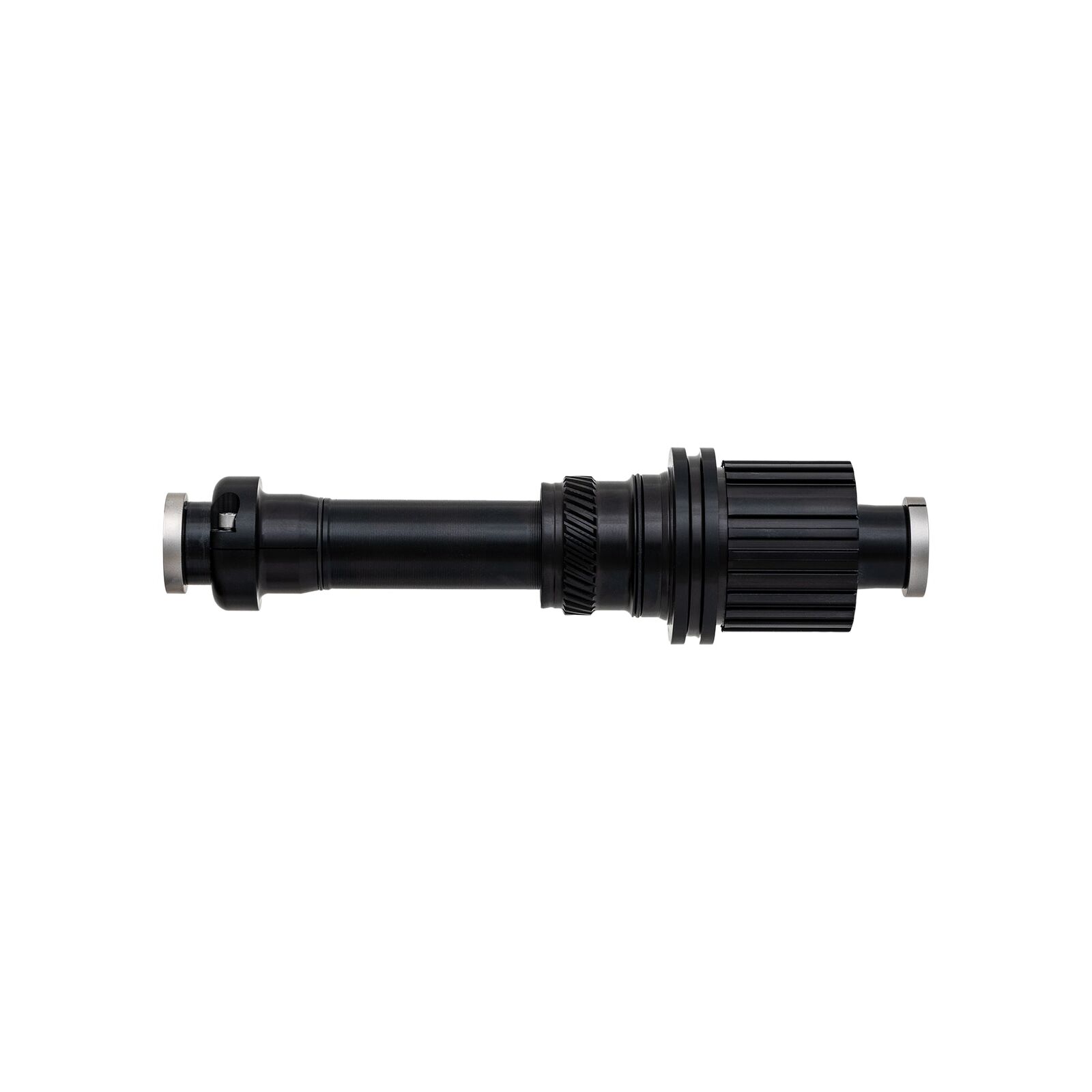

  • Genuine Chris King Gen 4 internals — axle, driveshell and adjusting clamp pre-assembled
  • 142 x 12mm axle
  • Installs with a 2.5mm hex key and T10 Torx driver
  • Available in the Chris King colours listed below

Fitting

Chris King rates this as a straightforward freehub swap rather than a full hub service, though Tune's workshop can fit it and check bearing preload while the hub is apart.

Compatibility & fit

Fits R45D 6-Bolt Gen 2 hubs (serial numbers beginning with 6910) and all R45D Centrelock hubs (serial numbers beginning with 6710). Uses a 142 x 12mm axle.

Sizes & options

SKUColourFreehub body
SCV-CKWA-PHB902BBlackShimano Micro Spline
SCV-CKWA-PHB901BBlackSRAM XDR
SCV-CKWA-PHB901SSilverSRAM XDR
Chris King's Lifetime Warranty covers the hub, including bearings, against defects in materials and workmanship for the life of the original purchaser once this kit is correctly fitted; it doesn't cover normal wear and tear or incorrect installation. For warranty support, return the product to Tune Cycles and we'll manage the claim with Chris King's Australian distributor.
  • Genuine Chris King Gen 4 conversion kit
  • Pre-assembled axle, driveshell and adjusting clamp
  • 142 x 12mm axle
  • Fits R45D 6-Bolt Gen 2 and all R45D Centrelock hubs
  • Available in Shimano Micro Spline and SRAM XDR freehub bodies
Axle142 x 12mm
Compatible hubsR45D 6-Bolt Gen 2 (serial from 6910), R45D Centrelock (serial from 6710)
Tools needed2.5mm hex key, T10 Torx
Freehub & colour optionsBlack/Shimano Micro Spline, Black/SRAM XDR, Silver/SRAM XDR
SKU SCV-P-11800
Brand Chris King
Shipping Weight 0.0500kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
