Swap cassette standards or refresh a worn freehub. This Hope Pro 5 freehub assembly has a lightweight aluminium body and Hope's offset 6-pawl mechanism for 108 points of engagement – the fast pickup that made Pro 5 a big step up from Pro 4.

Highlights

  • Lightweight aluminium body
  • 108 points of engagement from offset 6-pawl design
  • Wire-cut high-strength steel pawls
  • Shimano HG (11-speed), Shimano Microspline (12-speed), SRAM XD or SRAM XDR
  • With an X12 drive-side end cap or without, depending on version

How it works

Aluminium body with Hope's offset 6-pawl design and wire-cut high-strength steel pawls, giving 108 points of engagement. The assembly comes ready to slide onto the hub axle, with its bearings and seal already fitted, so a standard swap is quick on the workbench.

End cap

X12 versions include the drive-side end cap for 12mm thru-axle frames, ready to fit straight onto a thru-axle Pro 5 rear hub. No End Cap versions are supplied without one – keep the end cap from your current freehub, or order the correct end cap for your axle standard separately. HG, XD and XDR bodies share drive-side end caps, but Micro Spline uses its own: changing to or from Micro Spline on a thru-axle hub, choose the X12 End Cap version. Pro 5 freehub bodies, axles and end caps, decoded explains which fits what.

Options

Freehub BodyEnd CapPart number
Shimano HGNo End CapHUB551

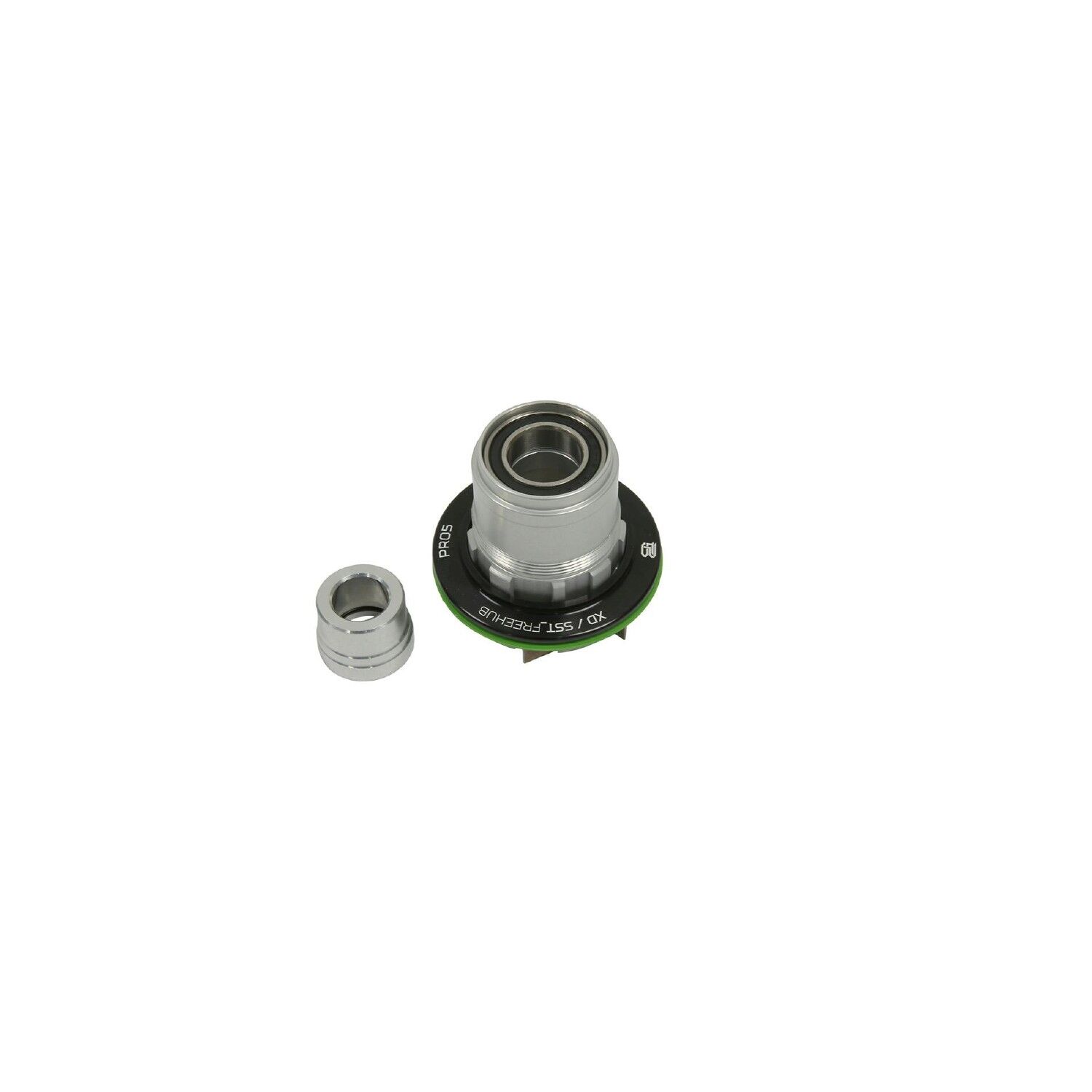

Shimano HGX12 End CapHUB551-X12
Shimano MicrosplineNo End CapHUB553
Shimano MicrosplineX12 End CapHUB553-X12
SRAM XDNo End CapHUB552
SRAM XDX12 End CapHUB552-X12

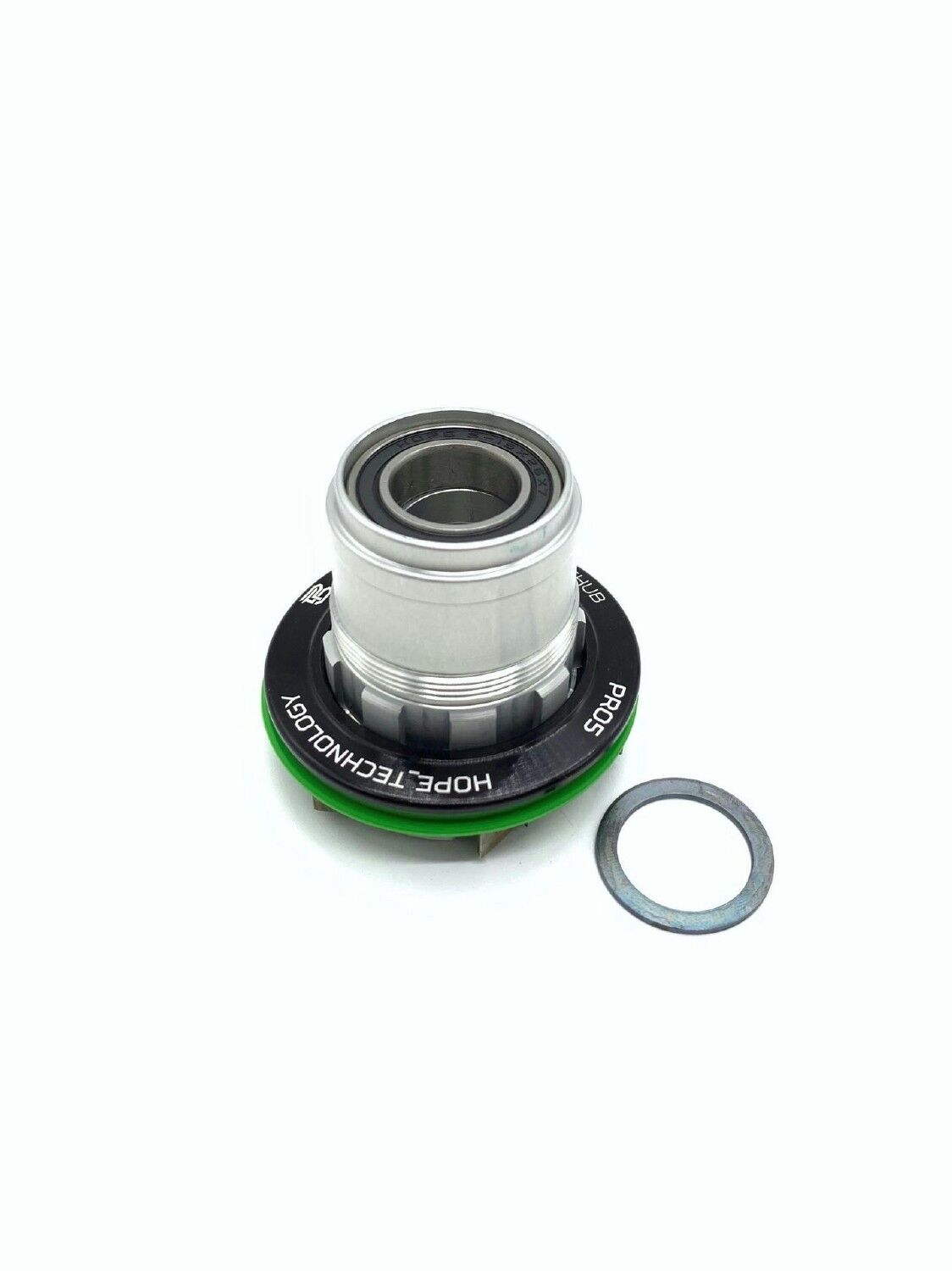

SRAM XDRNo End CapHUB555

Compatibility & fit

For Hope Pro 5 rear hubs only – not Pro 4 or earlier. Choose the body for your cassette, and check your axle standard and end cap before ordering. The body swaps over without special tools (see our Pro 5 hub service guide), or book it in and we fit it at the workshop.

Covered by the manufacturer's warranty against defects in materials and workmanship. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Aluminium freehub body
  • 108 points of engagement
  • Offset 6-pawl design
  • Wire-cut high-strength steel pawls
  • Bearings and seal fitted
  • X12 drive-side end cap or no end cap
  • Made in Barnoldswick, UK
BrandHope
HubPro 5 rear
Body materialAluminium
Engagement108 points
Pawls6 (offset)
OptionsFreehub Body: Shimano HG, Shimano Microspline, SRAM XD, SRAM XDR; End Cap: No End Cap, X12 End Cap
SKU BSP-HOP-P-PRO5
Brand Hope
Shipping Weight 0.2000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
