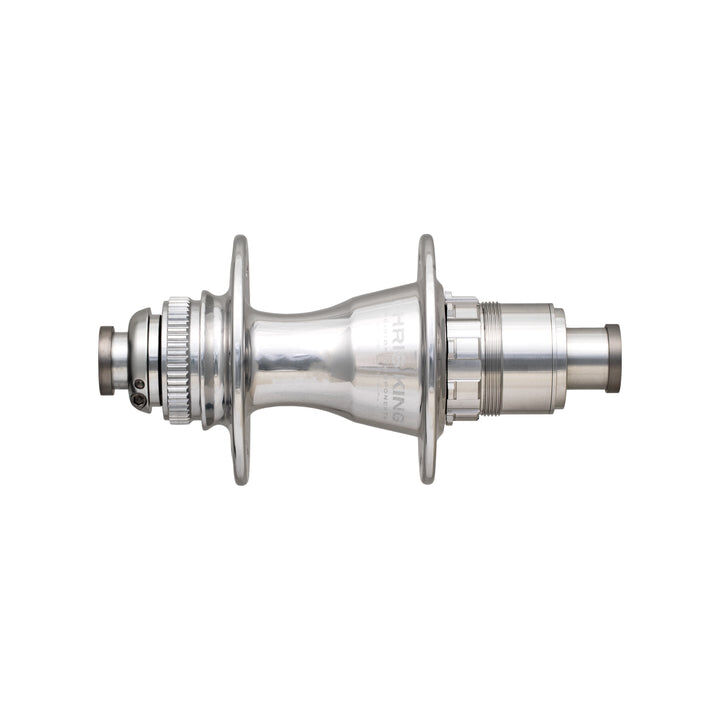

A road and gravel disc rear hub built around Chris King's 45-point RingDrive engagement and made-in-house sealed bearings, in silver with a Shimano HG freehub body.

Highlights

  • 45-point RingDrive engagement for fast, precise power transfer
  • Made-in-house sealed bearings, fully serviceable and rebuildable
  • Centrelock rotor mount
  • 142x12mm thru axle
  • King Lifetime Warranty

Build quality

Engineered, manufactured and assembled in Portland, Oregon USA. Serviceable and rebuildable with the Universal or R45 Hub Service Tool.

Compatibility & fit

142x12mm thru axle rear spacing for road and gravel disc frames built to that standard (not 148x12 Boost MTB spacing). Centrelock rotor mount, so it needs a Centrelock-splined rotor and lock ring (a Shimano-pattern lock ring completes the fit). Fitted with a Shimano HG freehub body.

Chris King covers hubs, including the bearings, under the King Lifetime Warranty for the life of the original purchaser against manufacturing defects. Cover excludes misuse, abuse, crash or impact damage, neglect, failure to service and normal wear and tear (chrisking.com/pages/king-lifetime-warranty). For warranty support, return the product to Tune Cycles and we'll manage the claim with Chris King's Australian distributor.
  • 45-point RingDrive engagement for fast, precise power transfer
  • Made-in-house sealed bearings, fully serviceable and rebuildable
  • Centrelock rotor mount
  • 142x12mm thru axle
  • King Lifetime Warranty
Axle standard142x12mm thru axle
Rotor mountCentrelock
Freehub bodyShimano HG
Spoke holes32H
Flange diameter (DS & NDS)57.4mm
Centre to flange, drive side18.7mm
Centre to flange, non-drive side33mm
EngagementRingDrive, 45 points
ColourSilver
Made inPortland, Oregon, USA
SKU SCV-CKWH-GAS1CA1
Brand Chris King
