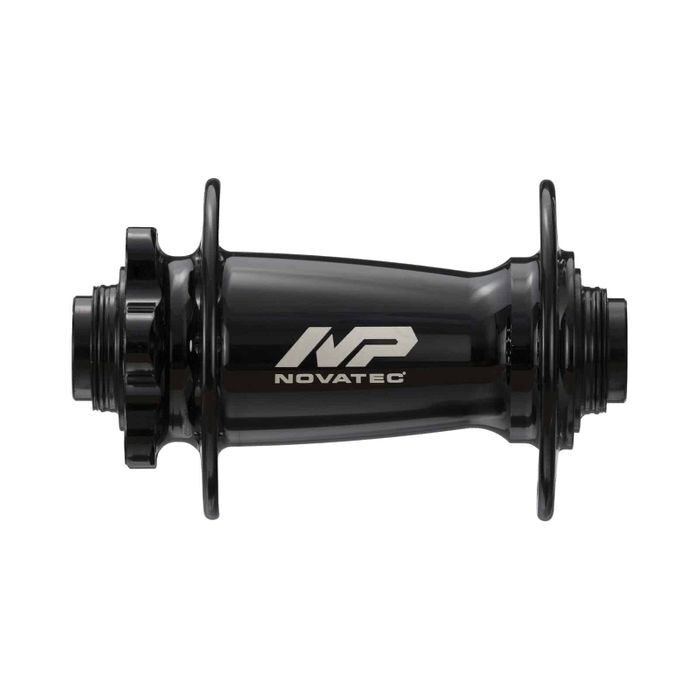

A sealed-bearing Novatec front hub for MTB wheel builds: 15x110mm Boost Thru-Axle, 32 spoke holes, set up for a 6-bolt disc rotor.

Highlights

  • 15x110mm Boost Thru-Axle
  • 6-Bolt Disc
  • 32 spoke holes
  • Novatec Premium XD601SB-B15, formerly the Factor Components 601
  • Converts from Boost 15x110mm to 20x110mm
  • High-flange alloy shell with CNC-machined flanges and a laser-cut logo
  • EZO sealed bearings
  • 195g (15x110mm), 185g (20x110mm)

Choose your colour above: every colour is the same hub.

Fit and compatibility

Check your frame or fork's axle standard and spacing, your brake rotor mount and your cassette before you order. If you're not sure, send us your bike's make, model and year and we'll confirm the fit.

Built into a wheel

Tune Cycles builds wheels by hand in Marrickville, Sydney. Buy the hub on its own, or tell us your rim and riding and we'll lace and true a complete wheel around it.

Novatec hubs are covered by Novatec's warranty against defects in materials and workmanship.

For warranty support, return the item to Tune Cycles and we'll manage the claim for you. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • 15x110mm Boost Thru-Axle
  • 6-Bolt Disc
  • 32 spoke holes
  • Novatec Premium XD601SB-B15, formerly the Factor Components 601
  • Converts from Boost 15x110mm to 20x110mm
  • High-flange alloy shell with CNC-machined flanges and a laser-cut logo
  • EZO sealed bearings
  • 195g (15x110mm), 185g (20x110mm)
BrandNovatec
ModelXD601SB
PositionFront
Axle15x110mm Boost Thru-Axle
Over-locknut dimension (OLD)110mm
Brake mount6-bolt disc
Spoke holes32H
BearingsSealed cartridge
ShellAlloy
Flange PCD58mm
Centre to left flange29mm
Centre to right flange41mm
Flange to flange69.5mm
Weight195g (15x110mm), 185g (20x110mm)
SKU BPW-NOV-XD601SB
Brand Novatec
