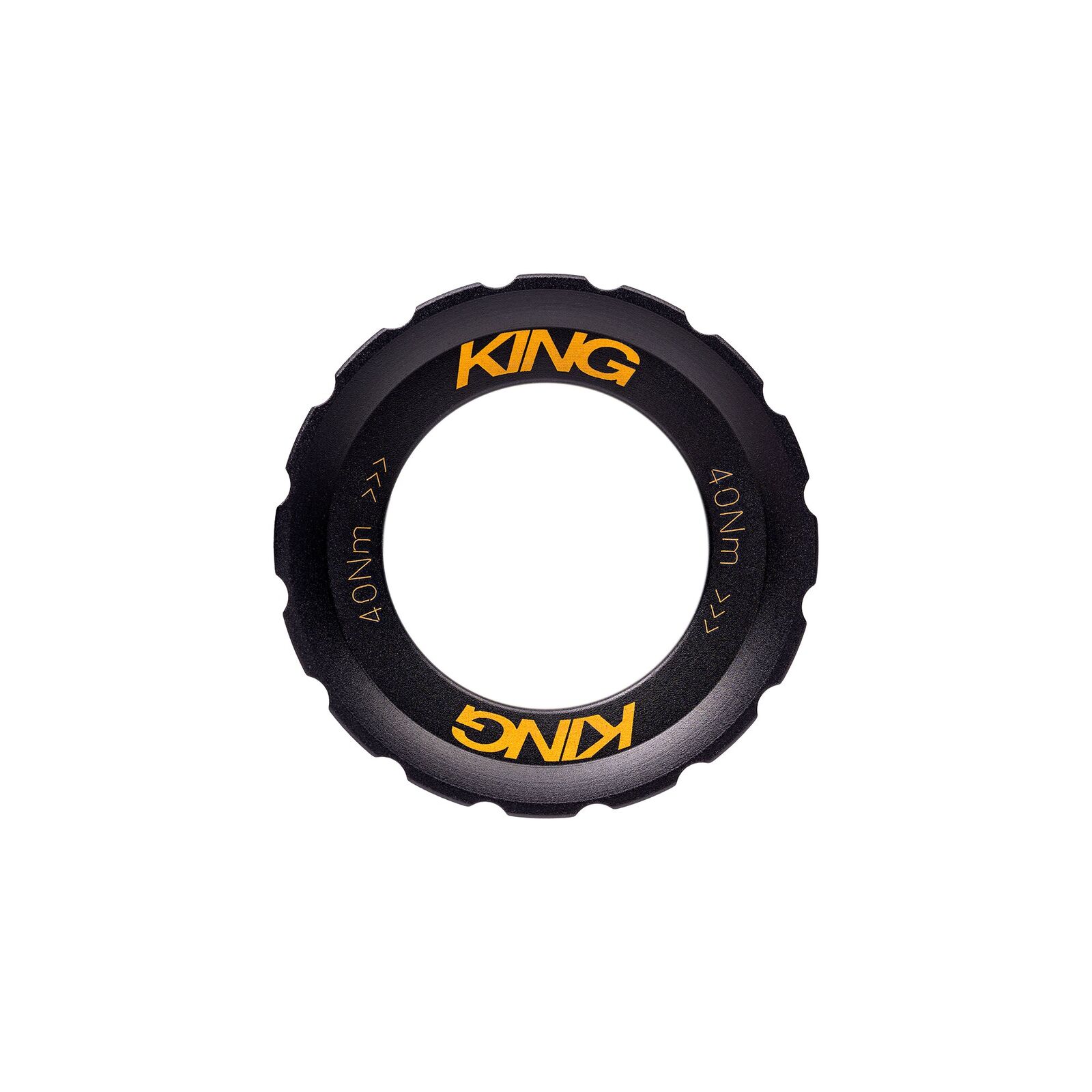

Chris King's Centrelock lock ring is machined and finished to match Chris King hubs and rims, with knurling shaped to thread on easily while resisting coming loose.

Highlights

  • Aluminium body with a steel crush washer
  • Shimano-standard dimensions: 44mm outer diameter, 4mm flange
  • 9 grams each
  • Requires an external bottom-bracket-style tool to install (Chris King TBB004 or Park BBT-9 type)
  • Made in the USA

Compatibility & fit

Follows Shimano's Centrelock dimensions (44mm OD, 4mm flange), fitting most mountain bike forks and frames and many road models. Some road forks and frames need the slimmer, internally splined lock ring instead; check bike clearance before ordering.

Chris King covers this part under its standard 1-year accessory warranty against manufacturing defects, verified on chrisking.com/pages/king-lifetime-warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with Chris King's Australian distributor.
  • Aluminium body with a steel crush washer
  • Shimano-standard dimensions: 44mm outer diameter, 4mm flange
  • 9 grams each
  • Requires an external bottom-bracket-style tool to install (Chris King TBB004 or Park BBT-9 type)
  • Made in the USA
BrandChris King
MaterialAluminium, steel crush washer
Dimensions44mm OD, 4mm flange (Shimano standard)
Weight9g each
Install toolChris King TBB004 or Park BBT-9 type
ColourBlack/Gold
SKU SCV-CKWA-JBABY
Brand Chris King
Shipping Weight 0.1000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
