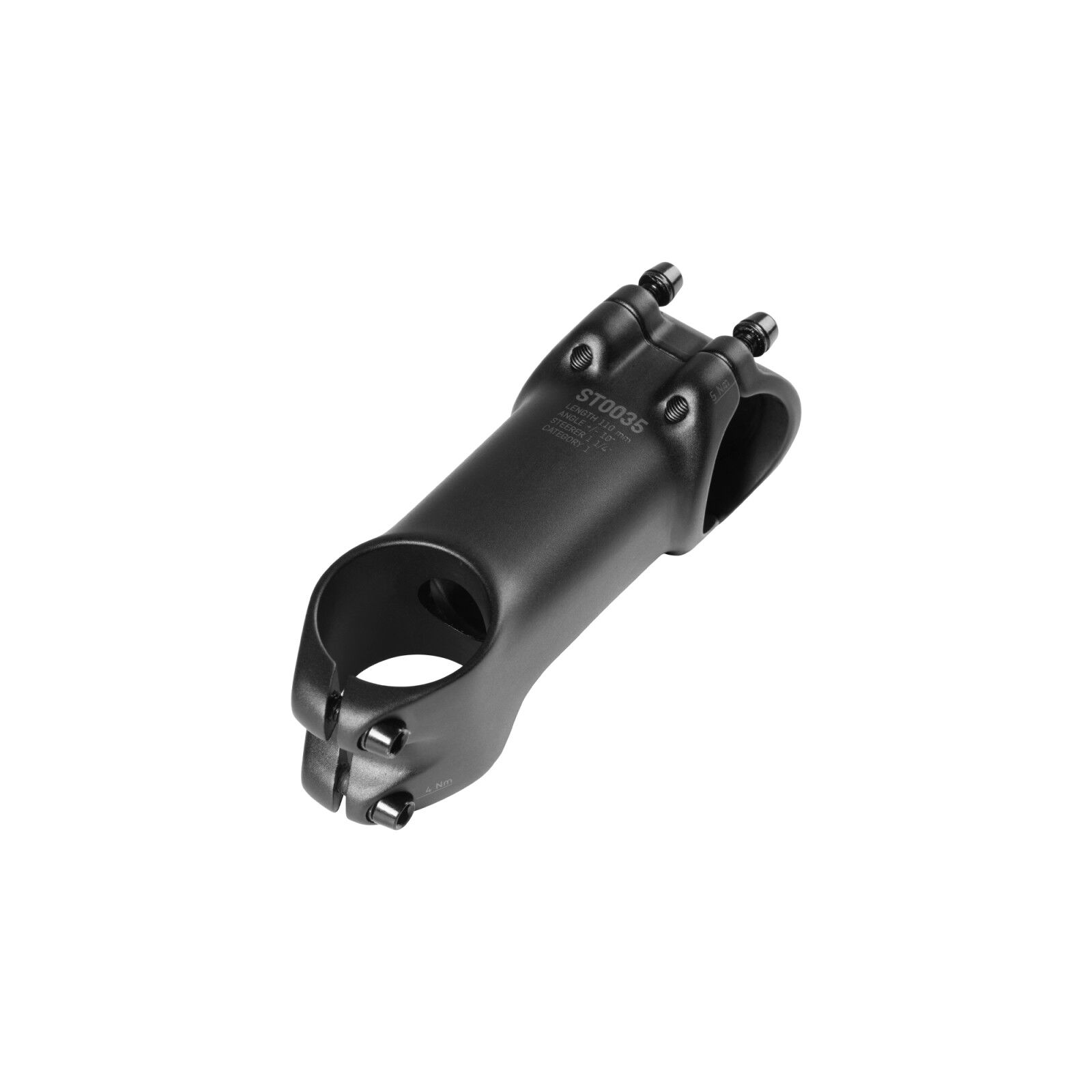

A simple, solid aluminium stem for Canyon road bikes with a 1 1/4" steerer. Choose the length that suits your fit, from 50 to 100 mm in 10 mm steps.

  • Six lengths: 50, 60, 70, 80, 90 and 100 mm.
  • Standard bar clamp: 31.8 mm.
  • 1 1/4" steerer: for 1 1/4" steerer tubes.
  • ±10° angle: as specified by Canyon.
  • Easy to fit: supplied with two M5x16 and four M5x18 screws.
  • Weight: 126 g (50 mm) to 160 g (100 mm).

Choosing a length

Stem length sets your reach to the bars. If you're unsure which length to choose, we can help with a fit check.

Fit and compatibility

Canyon lists the ST0035 for:

  • Endurace: CF Disc (R076-01, 2026); CF and CF Disc (R129-01, 2027)
  • Ultimate: CF SL Disc (R101-01, 2026)

Stems are frame-specific on many Canyons. Match your frame code and model year to the list before ordering, and ask us if you're unsure.

Tune Cycles is an authorised Canyon service partner, so we can fit it and set it up for you.

Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • Aluminium
  • 1 1/4" steerer, 31.8 mm bar clamp
  • ±10° angle
  • Lengths 50-100 mm in 10 mm steps
  • Screws included
BrandCanyon
Canyon part codeST0035
MaterialAluminium
Steerer1 1/4"
Bar clamp31.8 mm
Angle±10°
Lengths50-100 mm in 10 mm steps
Weight126 g (50 mm) to 160 g (100 mm)
In the box1 x Canyon ST0035 Road & Gravel Stem, 2 x M5x16 screws, 4 x M5x18 screws
Frame codesR076-01, R101-01, R129-01
SKU CAN-P-9102034
Brand Canyon
Shipping Weight 0.2300kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.200m
