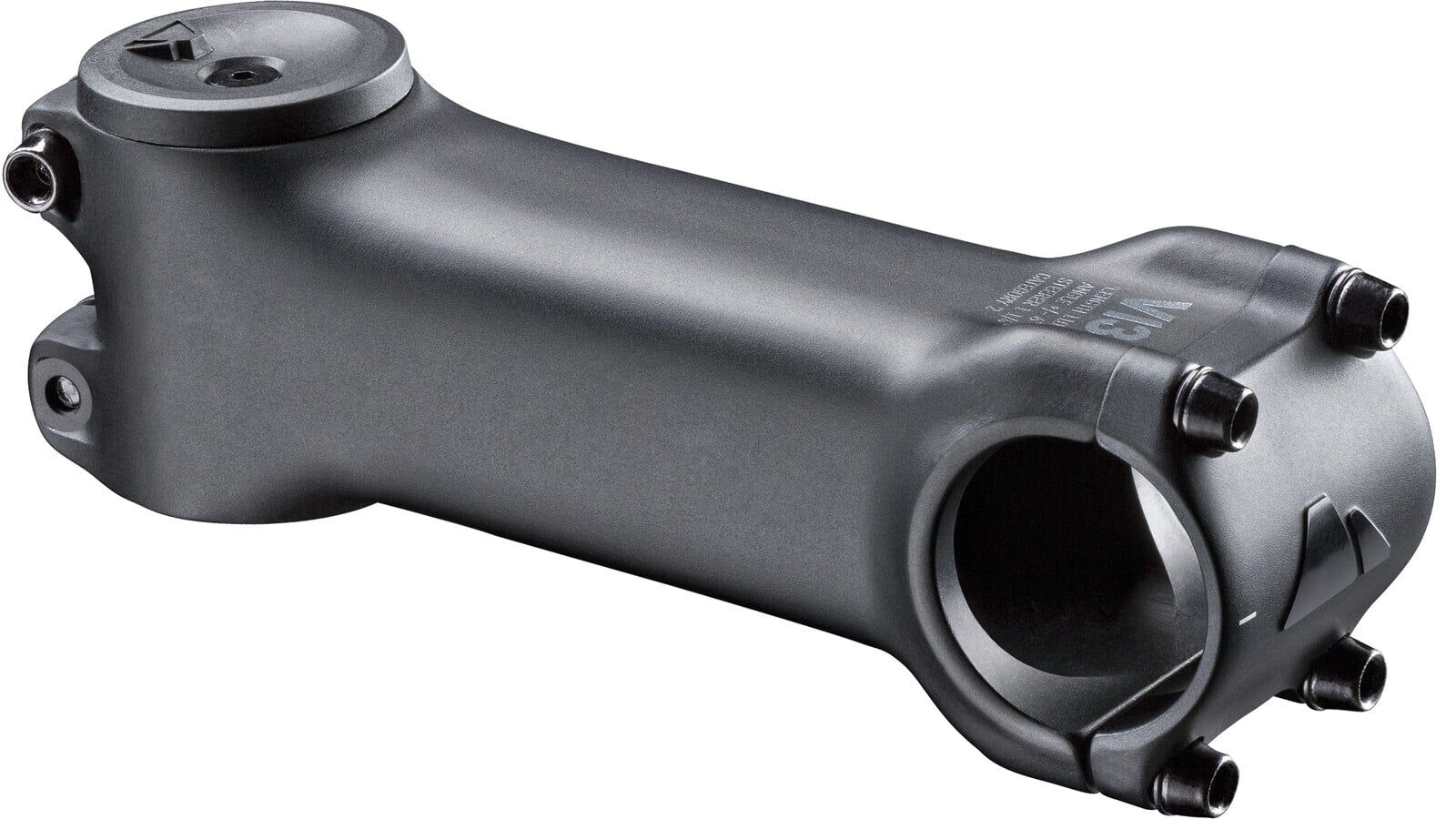

The V13 is Canyon's alloy road and gravel stem, built to keep the front end stiff when you sprint or climb out of the saddle while still giving a little vertical flex for comfort. It clamps a 31.8 mm bar to a 1 1/4" steerer and comes in six lengths.

  • Stiff where it counts: a square cross-section and wide bar clamp lift torsional stiffness.
  • Comfort built in: some vertical flex is kept to take the edge off rough roads.
  • Durable alloy: 7050 aluminium, with hard-wearing bolts that have reinforced hex sockets.
  • ±6° angle: run it up or down to suit your position.
  • Category 2: Canyon's rating for this road and gravel stem.

Options

Choose 80, 90, 100, 110, 120 or 130 mm, in black or black/white. Weight runs from 143 g (80 mm) to 168 g (130 mm).

Fit and compatibility

The V13 suits a fork with a 1 1/4" steerer and a handlebar with a 31.8 mm clamp. Canyon doesn't publish a bike list for it, so check your steerer is 1 1/4" (not 1 1/8") and that your bike uses a separate stem. The top cap isn't included: reuse yours or order one separately.

Tune Cycles is an authorised Canyon service partner and can fit your new stem.

Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • 1 1/4" steerer, 31.8 mm bar clamp
  • AL-7050 aluminium, ±6°
  • Lengths 80–130 mm
  • Black or black/white
  • Top cap not included
BrandCanyon
MaterialAL-7050 aluminium
Steerer1 1/4"
Bar clamp31.8 mm
Angle±6°
Lengths80, 90, 100, 110, 120, 130 mm
ColoursBlack; black/white
Category2
Model nameV13-15
In the box1 x Canyon V13 stem (top cap not included)
Weight143 g (80 mm) to 168 g (130 mm)
SKU CAN-P-9100404
Brand Canyon
Shipping Weight 0.2100kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.200m
