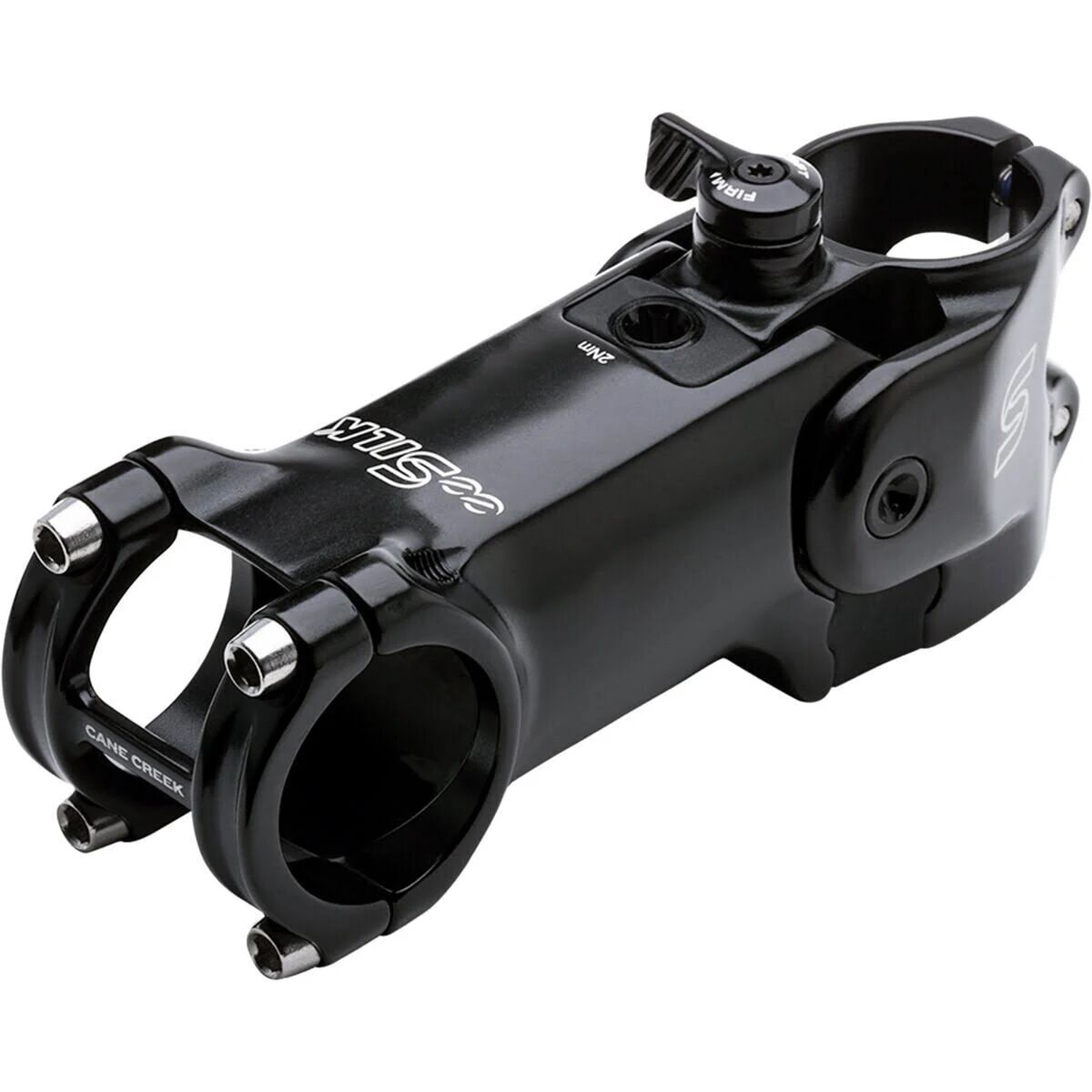

The eeSilk suspension stem softens chatter from rough roads and gravel with up to 20mm of elastomer-sprung compliance, without the weight or complexity of a suspension fork.

Highlights

  • Up to 20mm of tunable compliance
  • The Compliance Switch version adds an on-bike toggle for a firm platform on climbs or a soft, active feel on descents
  • The version without the switch is lighter, with always-active compliance
  • Single-bolt external elastomer change, no bar removal needed
  • 31.8mm clamp, -6° rise

Setup

Needs at least 52mm of exposed steerer tube above the headset top cover to install correctly. Stack height is 49mm.

Compatibility & fit

1-1/8in steerer, 31.8mm bar clamp. Designed for drop-bar gravel, endurance and adventure bikes. Pairs with the eeSilk+ suspension seatpost for a full compliance system.

Options

OptionCompliance Switch, Without Compliance Switch – the switch adds an on-bike firm/soft toggle; both share the same 20mm elastomer travel
Stem Reach70mm, 80mm, 90mm, 100mm
Cane Creek's stems carry a 1-year warranty against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Up to 20mm tunable compliance
  • With or without the Compliance Switch
  • 70/80/90/100mm lengths
  • 31.8mm clamp, -6° rise
  • Single-bolt elastomer change
BrandCane Creek
TravelUp to 20mm
Clamp31.8mm
Steerer1-1/8in, needs 52mm+ exposed
Stack height49mm
Angle-6° only
Weight225-235g
Option (this option)Compliance Switch / Without Compliance Switch
Stem Reach (this option)70mm, 80mm, 90mm, 100mm
SKU DTW-CKG-ST-PAR
Brand eeCycleworks
