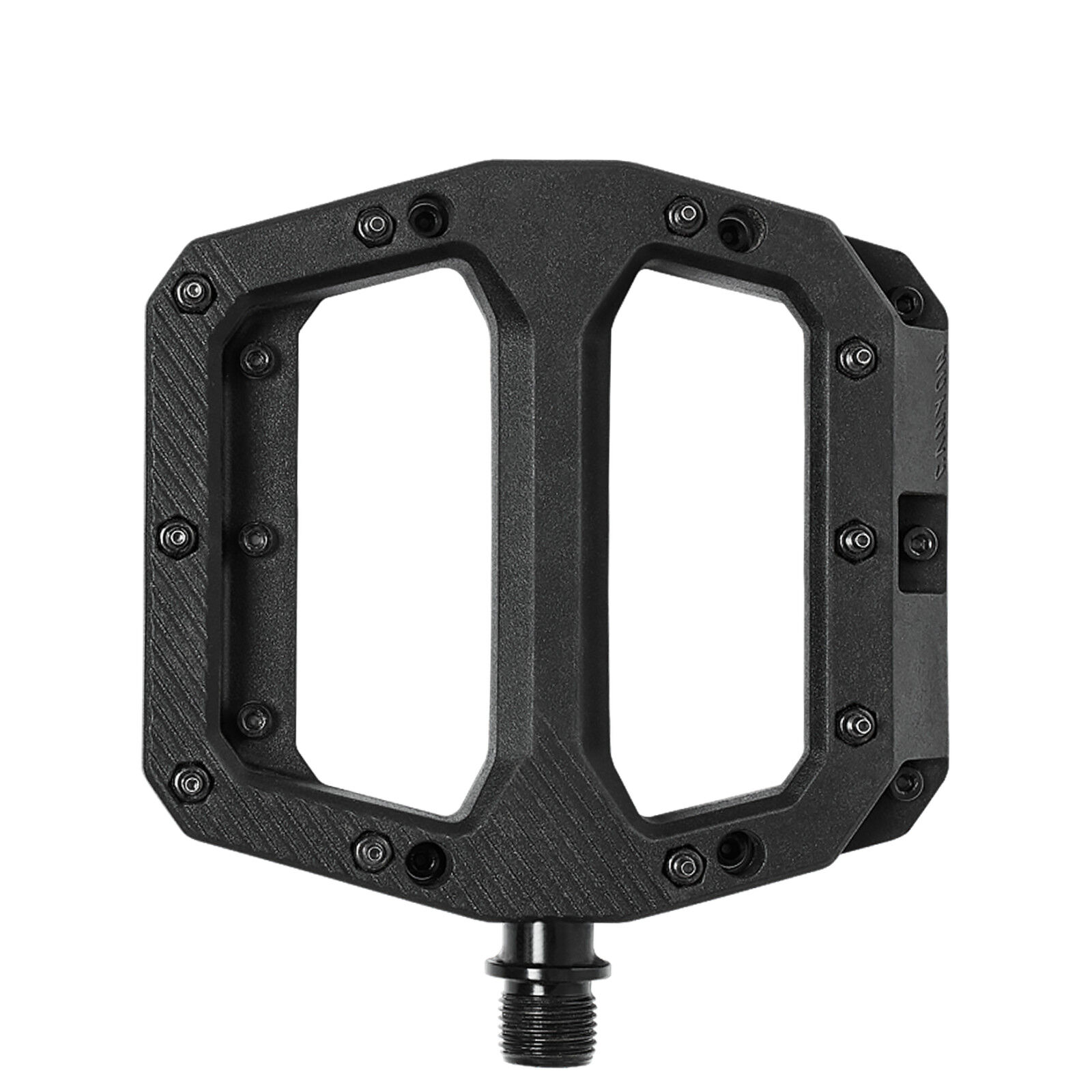

A tough, grippy flat pedal for trail riding. It shares its design with Canyon's bigger MTB Performance Pedal in a slightly smaller platform that suits most shoe sizes.

  • Feet sit in, not on: the platform is concave in two directions, and the pins vary in height to hold your feet steady.
  • Grip you can renew: 10 removable pins per side can be swapped out when they're damaged.
  • Built to take hits: a quenched and tempered DIN 15CrMo axle runs on sealed DU bushings.
  • Rated strong: approved for up to 200 kg system weight.
  • Rock-friendly edges: the edge profile is shaped to slide past rocks.

Fit and compatibility

These pedals aren't tied to a Canyon model and install with a 6 mm Allen key. If you're unsure your cranks suit, ask us before ordering.

We can fit them in the workshop while your bike's in for a service.

Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • Nylon body, 108 x 107 x 17 mm
  • 10 removable pins per side
  • DIN 15CrMo axle, sealed DU bushings
  • Approved to 200 kg system weight
  • Installs with a 6 mm Allen key
BrandCanyon
MaterialNylon body, DIN 15CrMo axle
Dimensions108 x 107 x 17 mm
Pins10 removable per side
BearingsSealed DU bushings
Max. system weight200 kg
Tool6 mm Allen key
Weight400 g
In the box1 x pair Canyon MTB Nylon Flat Pedals
SKU CAN-10012522
Brand Canyon
Shipping Weight 0.5300kg
Shipping Width 0.120m
Shipping Height 0.080m
Shipping Length 0.200m
