Canyon FLASH 800 GEAR GROOVE Frontlight Set
Pick-up or mobile mechanic only. Buy at canyon.com/en-au
SKU code: CAN-10012984

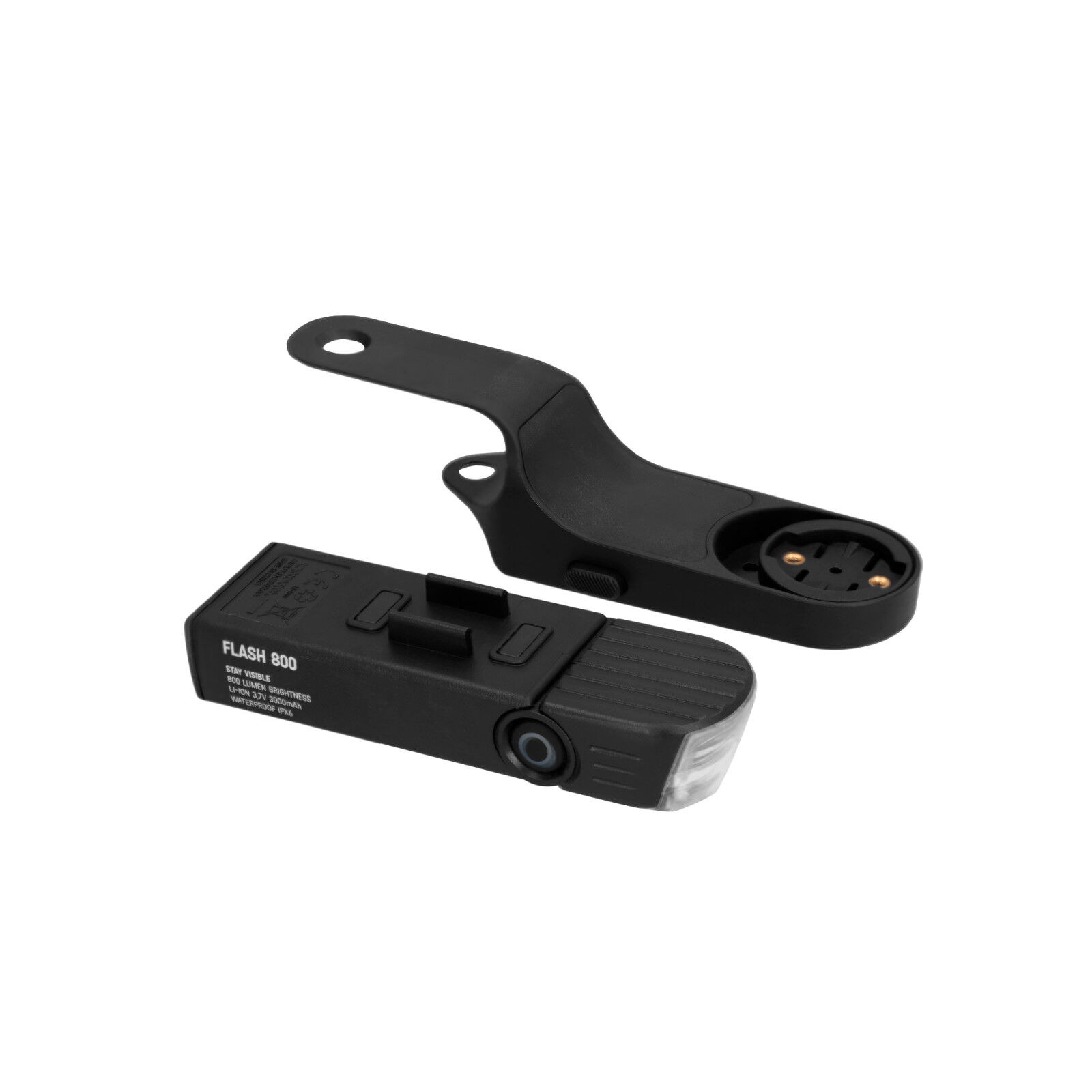

A bright, rechargeable front light that tucks in under your Canyon cockpit instead of hanging off the bar. The FLASH 800 set pairs the light with a mount made for the GEAR GROOVE interface, so you get up to 800 lumens and a clean front end.
- Three output levels: 200 lm for 4.5 hours, 400 lm for 2.3 hours or 800 lm for 1.5 hours.
- Flash mode: hold the on/off button for 3 seconds while the light is on for a 400 lm flash that runs for 6 hours.
- Magnetic hold: the light snaps to the underside of the mount with strong magnets and a click system.
- Adjustable beam: a hinge lets you set the light angle between 0 and 30 degrees.
- Weather-ready: rated IPX6 and works from -10 to +40 °C.
- Simple charging: USB-C, with a battery indicator that shows blue, then yellow, then flashing red as it runs down.
Integrated with the cockpit
The mount fixes to the GEAR GROOVE interface with two M6 x 12 mm screws, and the light hangs beneath it. It follows the design lines of Canyon's road and gravel platforms for a tidy look.
Fit and compatibility
The mount needs a Canyon cockpit with the GEAR GROOVE interface. Canyon lists these bikes:
- Aeroad: CF SLX and CF SLX Disc (R107-01, 2026 and 2027); CFR and CFR Disc (R136-01, 2027); CFR (R108-01, 2026)
- Endurace: CF SLX Disc (R077-02, 2026; R130-01, 2027); CFR (R072-02, 2026; R148-01, 2027)
- Grail: CF SLX (R120-01, 2026; R139-01, 2027; R140-01, 2027); CFR (R121-01, 2026; R141-01, 2027)
- Ultimate: CF SL Disc (R101-01, 2026); CF SLX and CF SLX Disc (R100-01, 2026 and 2027); CFR Disc (R102-01, 2026)
Match your frame code and model year to the list before ordering, and ask us if you're unsure.
We can fit the set and check the beam angle for you.
Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
- Up to 800 lumens: 200, 400 and 800 lm modes plus a 400 lm flash
- Run times 4.5 h (200 lm), 2.3 h (400 lm), 1.5 h (800 lm), 6 h (flash)
- Magnetic click-in attachment to the mount
- Hinged 0-30° beam adjustment
- IPX6, works from -10 to +40 °C
- USB-C charging, cable and screws included
| Brand | Canyon |
|---|---|
| Output | 200 lm / 400 lm / 800 lm; 400 lm flash |
| Run time | 200 lm: 4.5 h; 400 lm: 2.3 h; 800 lm: 1.5 h; flash: 6 h |
| Beam angle | 0-30° (hinge) |
| Water resistance | IPX6 |
| Operating temperature | -10 to +40 °C |
| Charging | USB-C |
| Battery indicator | Blue 100-61%, yellow 60-21%, flashing red 20-1% |
| Light dimensions | 120 x 27.5 x 37 mm |
| Light weight | 140 g |
| Mount dimensions | 150 x 23 x 37 mm |
| Mount weight | 80 g |
| Weight | 220 g (light and mount) |
| Mount interface | Canyon GEAR GROOVE cockpit |
| In the box | 1 x Canyon FLASH 800 Frontlight Set (light and mount), 1 x USB-C cable, 2 x M6 x 12 mm screws |
| Frame codes | R072-02, R077-02, R100-01, R101-01, R102-01, R107-01, R108-01, R120-01, R121-01, R130-01, R136-01, R139-01, R140-01, R141-01, R148-01 |
| SKU | CAN-10012984 |
| Brand | Canyon |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.060m |
| Shipping Length | 0.150m |
