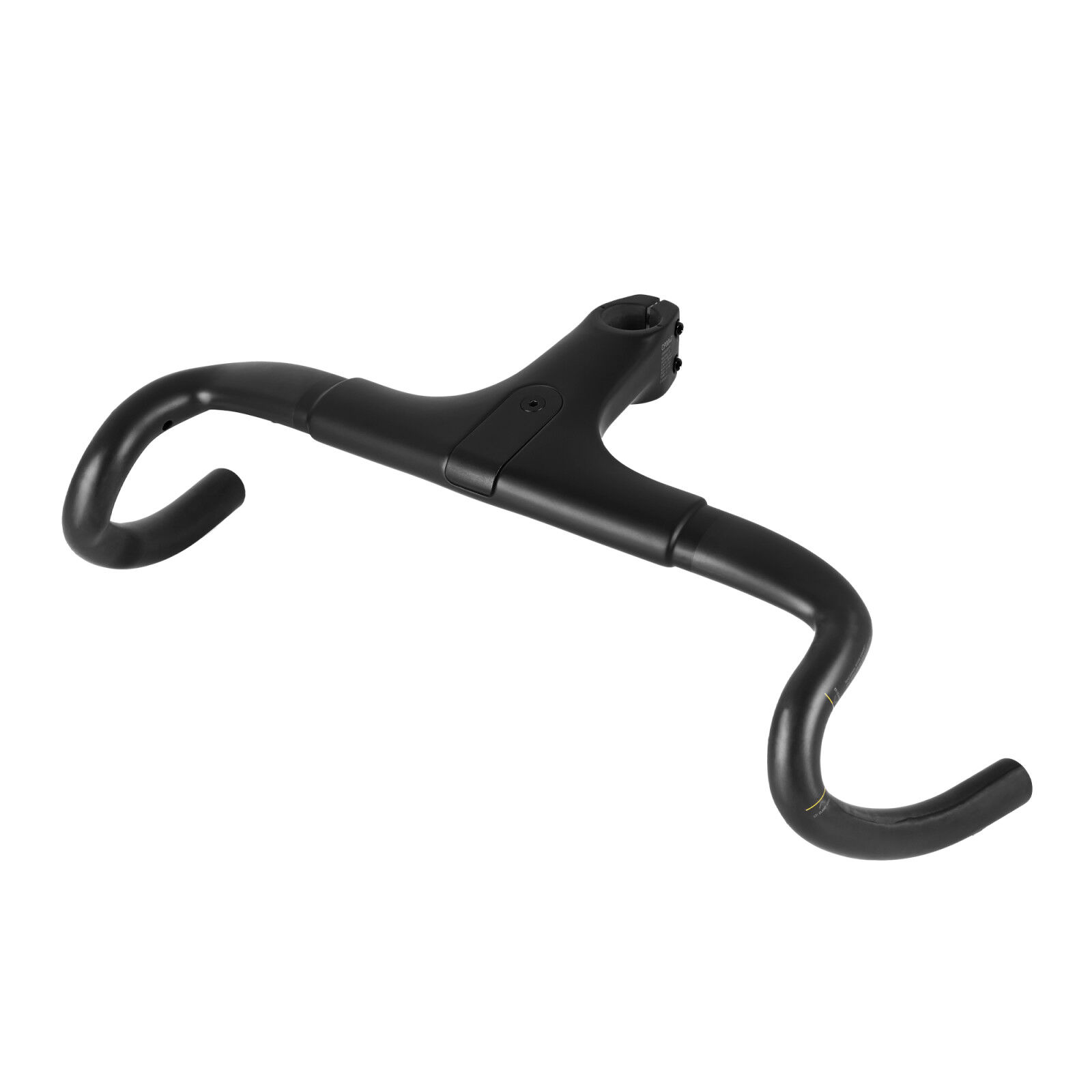

A one-piece carbon cockpit for riders who push their gravel bike hard. It puts you in a low, aggressive position when you want it, with flared drops for control on technical trails.

• Control off-road: 16° of flare gives a wider, more stable grip in the drops on rough descents.
• Aero on the hoods: because the drops flare out, the hoods sit narrower, so you can tuck in on the flats.
• Comfortable tops: shaped tops give your hands a rest on long climbs.
• GEAR GROOVE built in: a clean interface for Canyon mounts and lights.
• Race-developed: shaped with input from Canyon's pro riders.

Sizes

Choose your size from the dropdown: 400 mm wide with an 80–110 mm stem, or 370 mm wide with a 70–110 mm stem. Reach is 69 mm and drop is 115 mm.

Fit and compatibility

Integrated cockpits are frame-specific. The CP0047 clamps a 1 1/8" steerer, and Canyon lists it for:

• Grail: Grail CF SL (R119-01, 2026), Grail CF SLX (R120-01, 2026; R139-01, 2027), Grail CFR (R121-01, 2026)
• Grizl: Grizl AL (R124-01, 2027), Grizl CF (R126-01, 2026 and 2027)

Match your frame code and model year before ordering. The CP0045, CP0039 and CP0047 are cross-compatible; coming from a CP0045, you'll need the GEAR GROOVE Computer Mount instead of the Standard 2-Bolt Computer Mount. For lights, it takes the Canyon FLASH 800 GEAR GROOVE Frontlight Set, not the standard Canyon Frontlight Set.

As an authorised Canyon service partner, Tune Cycles can fit it for you.
