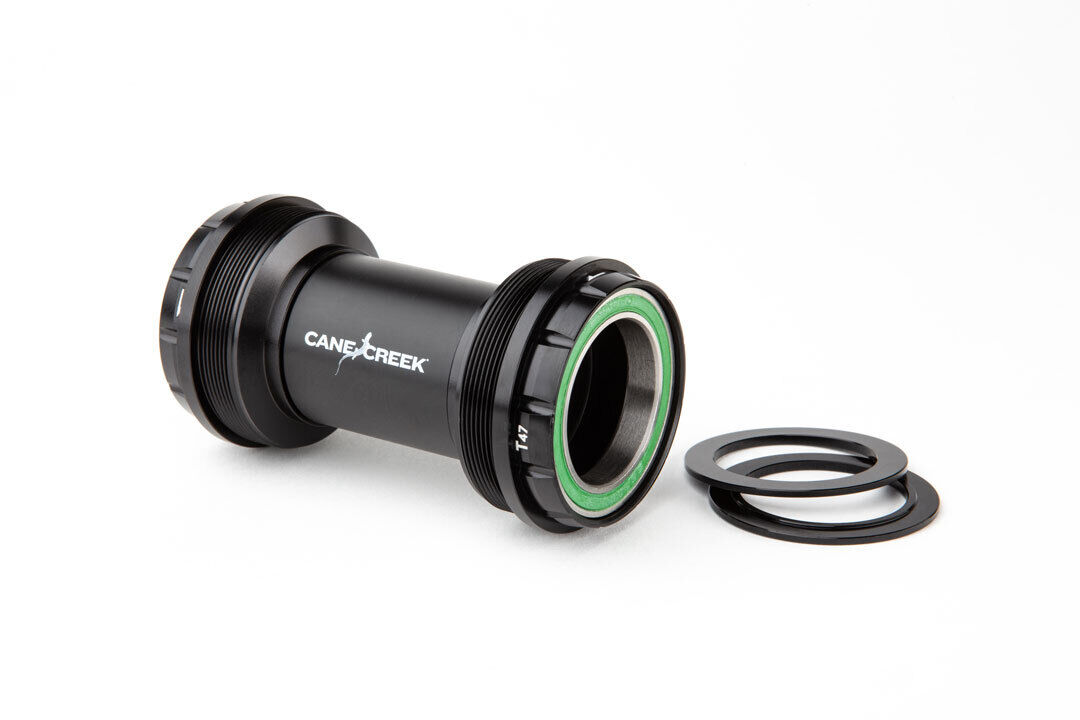

The Hellbender 70 is Cane Creek's workshop-grade bottom bracket, built around a cartridge bearing meant to outlast the frame's own bearing seats. This version threads into Cane Creek's standard T47 shell, the narrower, external-cup format used on many modern gravel and road frames.

Highlights

  • 440C stainless steel cartridge bearings
  • Machined aluminium cups with dual-lip seals and marine-grade grease
  • Threads into a standard T47 bottom bracket shell
  • Available for 24mm and 30mm crank spindles
  • Backed by Cane Creek's 1-year bottom bracket warranty

Not the same as T47 Internal

This is Cane Creek's standard T47 bottom bracket with external cups, not the wider T47 Internal (T47i) version sold separately — check which shell your frame takes before ordering, as the two aren't interchangeable.

Compatibility & fit

Fits a standard T47 threaded bottom bracket shell. Choose the spindle size to match your crankset: 24mm or 30mm (including Cane Creek eeWings). The Tune Cycles workshop can confirm your shell and spindle size and fit the bracket.

Options

SpindleWhat differs
24mmFits 24mm crank spindles
30mmFits 30mm crank spindles, including Cane Creek eeWings
Cane Creek backs the Hellbender 70 bottom bracket with a 1-year warranty against defects in materials and workmanship, covering the cups and bearings under normal use; it excludes wear and tear, incorrect fitting and user modification. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 440C stainless steel cartridge bearings
  • Machined aluminium cups with dual-lip seals
  • Marine-grade grease for wet-weather durability
  • Standard T47 (external cup) shell thread
  • Spindle options for 24mm and 30mm cranks
Shell standardT47, threaded (external cup)
Bearing440C stainless steel, dual-lip seal
Cup materialMachined aluminium
Spindle options24mm / 30mm
SKU DTW-CKG-BB-BAI01-PAR3
Brand Cane Creek
Shipping Weight 0.2200kg
