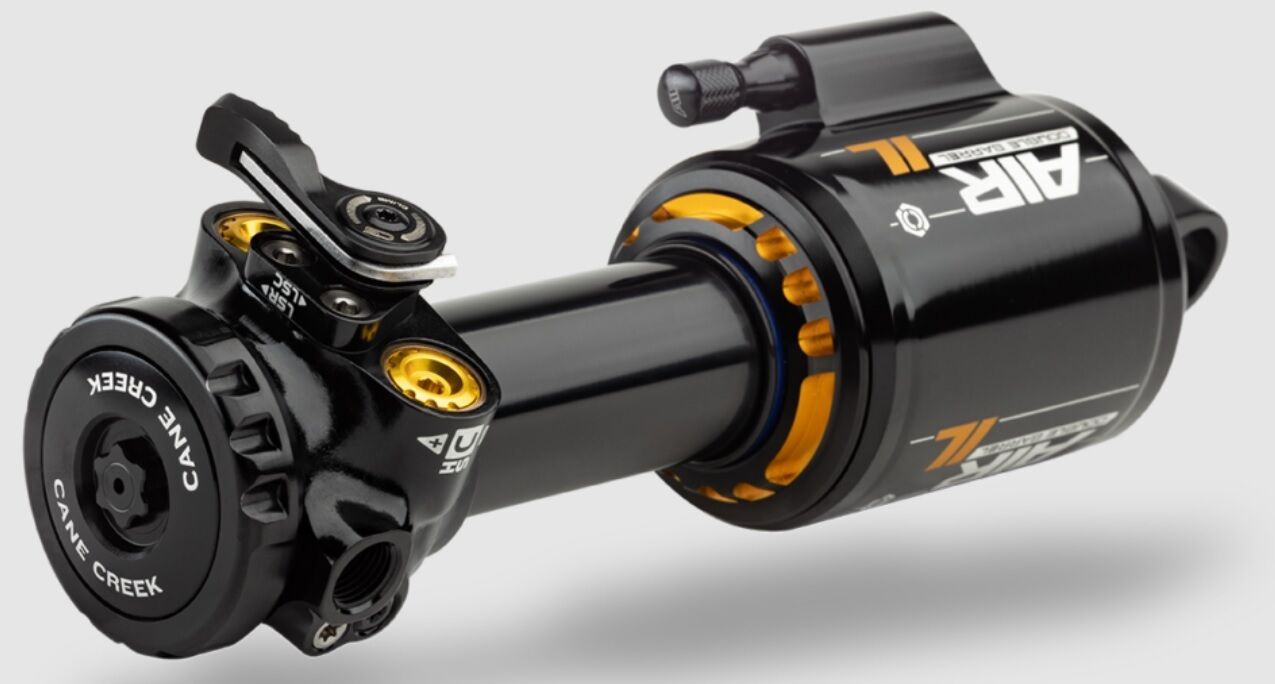

Cane Creek's lightest mountain bike rear shock, built for 100–140mm travel XC, trail and downcountry bikes that still want full damping adjustment.

Highlights

  • Twin-tube damper: independent high-speed and low-speed compression and rebound circuits
  • Climb Switch for a firmer pedalling platform
  • 165mm eye-to-eye, trunnion mount
  • Claimed weight around 385g (varies by stroke)
  • Hand-assembled in Fletcher, NC

Compatibility & fit

Trunnion mount only – the shock body bolts straight to the frame's lower shock tab rather than through an eyelet, so it only fits a frame designed for a trunnion-mount shock at this eye-to-eye length. Match the stroke to what your frame's linkage is designed around; the wrong stroke changes the bike's travel and can bind the linkage. The Tune workshop can confirm fit and set sag for a new shock.

Options

StrokeWhat differs
40mm40mm stroke
42.5mm42.5mm stroke
45mm45mm stroke
Cane Creek's rear shocks carry a one-year warranty against defects in materials and workmanship. Normal wear and tear, crash damage and lack of routine service aren't included. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Twin-tube damper, independent HSC/LSC and HSR/LSR adjustment
  • Climb Switch firmer-platform lever
  • 165mm eye-to-eye, trunnion mount
  • Three stroke lengths: 40 / 42.5 / 45mm
  • Claimed weight around 385g
BrandCane Creek
ModelDouble Barrel Air IL
Eye-to-eye165mm
MountTrunnion
Strokesee Options table
Weightapprox 385g (varies by stroke)
AdjustmentHSC, LSC, HSR, LSR, Climb Switch
SKU DTW-CSG-SHDBAIL1654-PAR
Brand Cane Creek
Shipping Weight 0.5650kg
