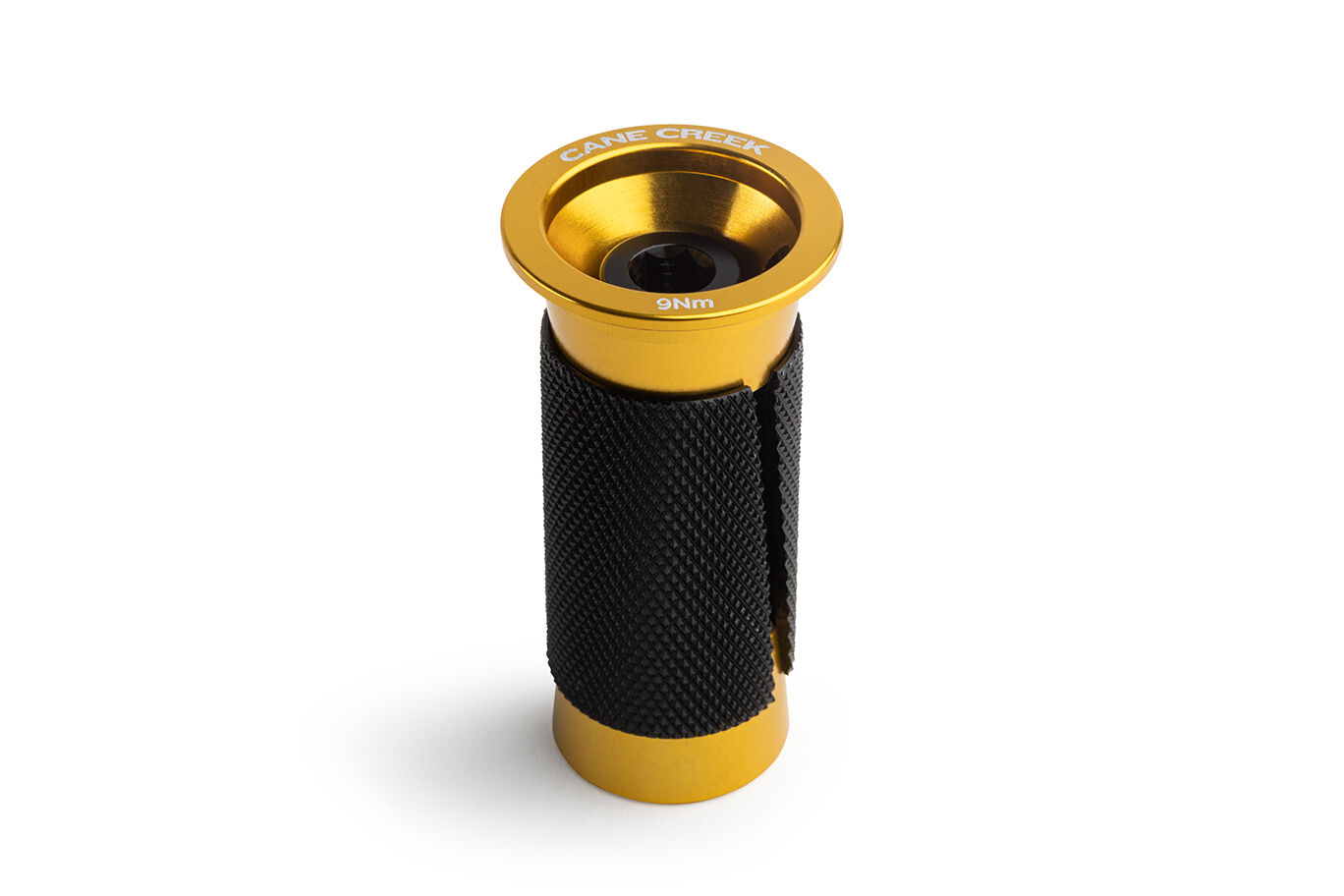

The Ancora is Cane Creek's premium expansion plug for carbon steerer tubes, replacing a star nut where there's no metal for one to bite into.

Highlights

  • 6000-series machined aluminium expansion wedges with a knurled sleeve
  • For 1-1/8in carbon steerer tubes
  • Accepts any standard preload bolt and top cap (sold separately)
  • Gold finish

Compatibility & fit

Fits 1-1/8in carbon steerer tubes. Torque the expansion bolt to 6Nm — overtightening can crack a carbon steerer.

Cane Creek covers this as a small part/accessory: 1 year against defects in materials and workmanship, not everyday wear or incorrect installation. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
Machined aluminium expansion wedges, knurled sleeve, For 1-1/8in carbon steerer tubes, Accepts a standard preload bolt and top cap (sold separately), Torque spec 6Nm
BrandCane Creek
Steerer1-1/8in carbon
MaterialMachined aluminium
Insertion length46mm
Contact surface length38mm
Torque spec6Nm
Weight25g
ColourGold
SKU DTW-CKG-STEXPLG
Barcode # 840226091341
Brand Cane Creek
