The Hellbender 70 Slam is Cane Creek's ultra-low-stack headset, built for riders who want to run their stem as close to the frame as possible — a slammed, aggressive position, or a short-steerer fork with no room for a standard headset.

Highlights

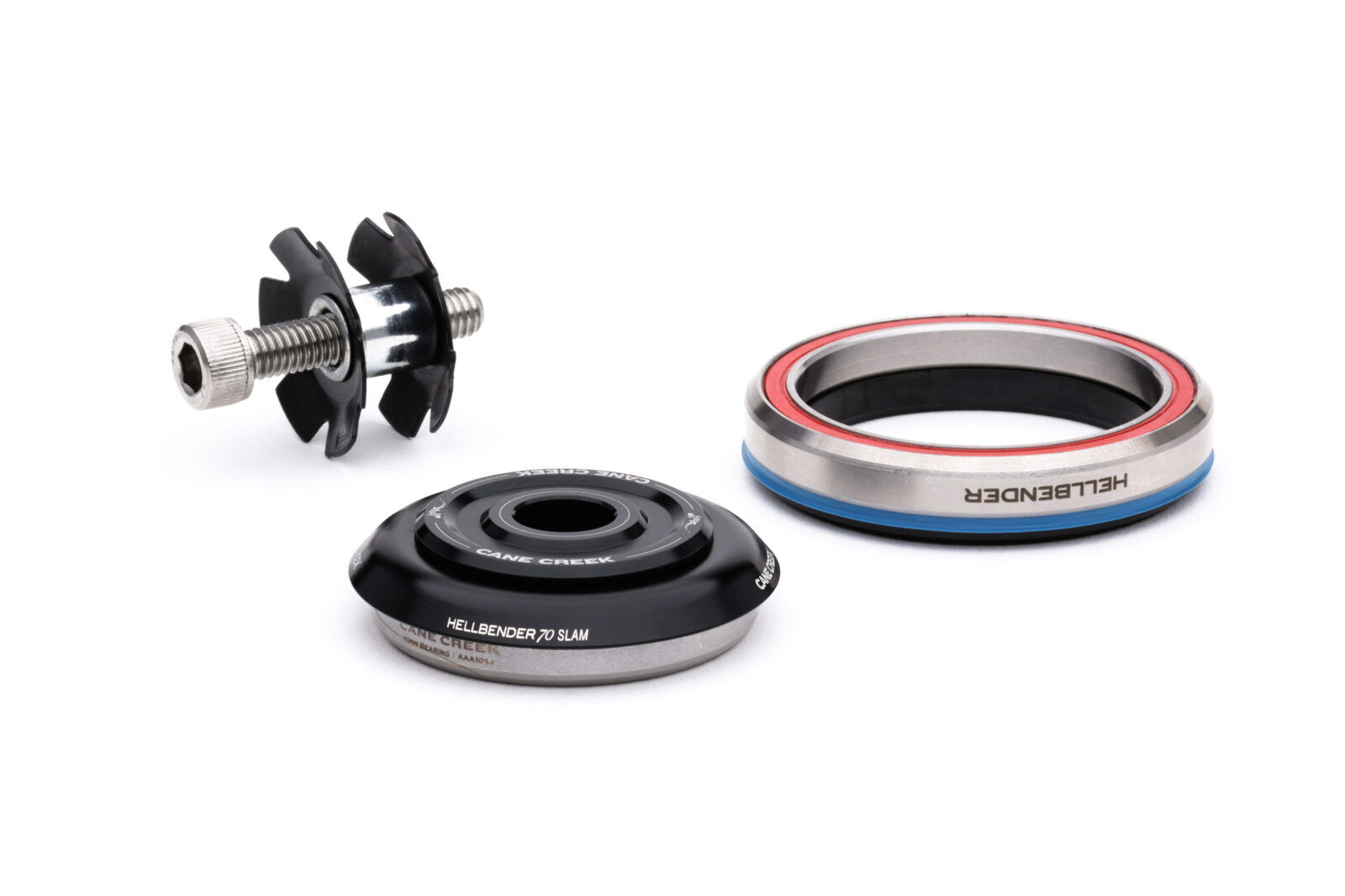

  • Complete headset: upper and lower cups, bearings and top cover
  • Ultra-low stack top cover: around 4.6mm, versus roughly 9mm on the standard Hellbender 70 Integrated (IS) upper
  • S.H.I.S. IS41/28.6 upper, IS52/40 lower
  • Sealed stainless steel Hellbender bearings, alloy dual-seal crown race
  • Backed by Cane Creek's Hellbender 70 headset warranty

Compatibility & fit

Upper cup: IS41/28.6, a 41mm integrated bearing with a 28.6mm (1-1/8in) stem clamp, in Slam's ultra-low stack cover. Lower cup: IS52/40, an integrated bearing sized for a tapered steerer (1-1/8in at the stem, 1.5in at the crown). Confirm your frame's S.H.I.S. and fork steerer length before ordering — a slam headset needs enough steerer to still thread the stem bolts safely. The Tune Cycles workshop can confirm your setup and fit it.

Cane Creek's published warranty page lists a 2-year term for Hellbender 70 headsets; it does not itemise the Lite or Slam versions separately, so this is the family term, applied here For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Complete headset: upper, lower, bearings and top cover
  • Ultra-low stack top cover, around 4.6mm
  • Sealed stainless steel Hellbender bearings
  • IS41/28.6 upper, IS52/40 lower
  • Tapered steerer, 1-1/8in to 1.5in
Upper S.H.I.S.IS41/28.6
Lower S.H.I.S.IS52/40
Stack height (upper)~4.6mm (Slam, low-stack cover)
BearingSealed stainless steel (Hellbender)
Crown raceAlloy, dual-seal
SteererTapered, 1-1/8in to 1.5in
ColourBlack
SKU DTW-CKG-HSHSMIS41IS52K
Barcode # 840226090917
Brand Cane Creek
Shipping Weight 0.2500kg
