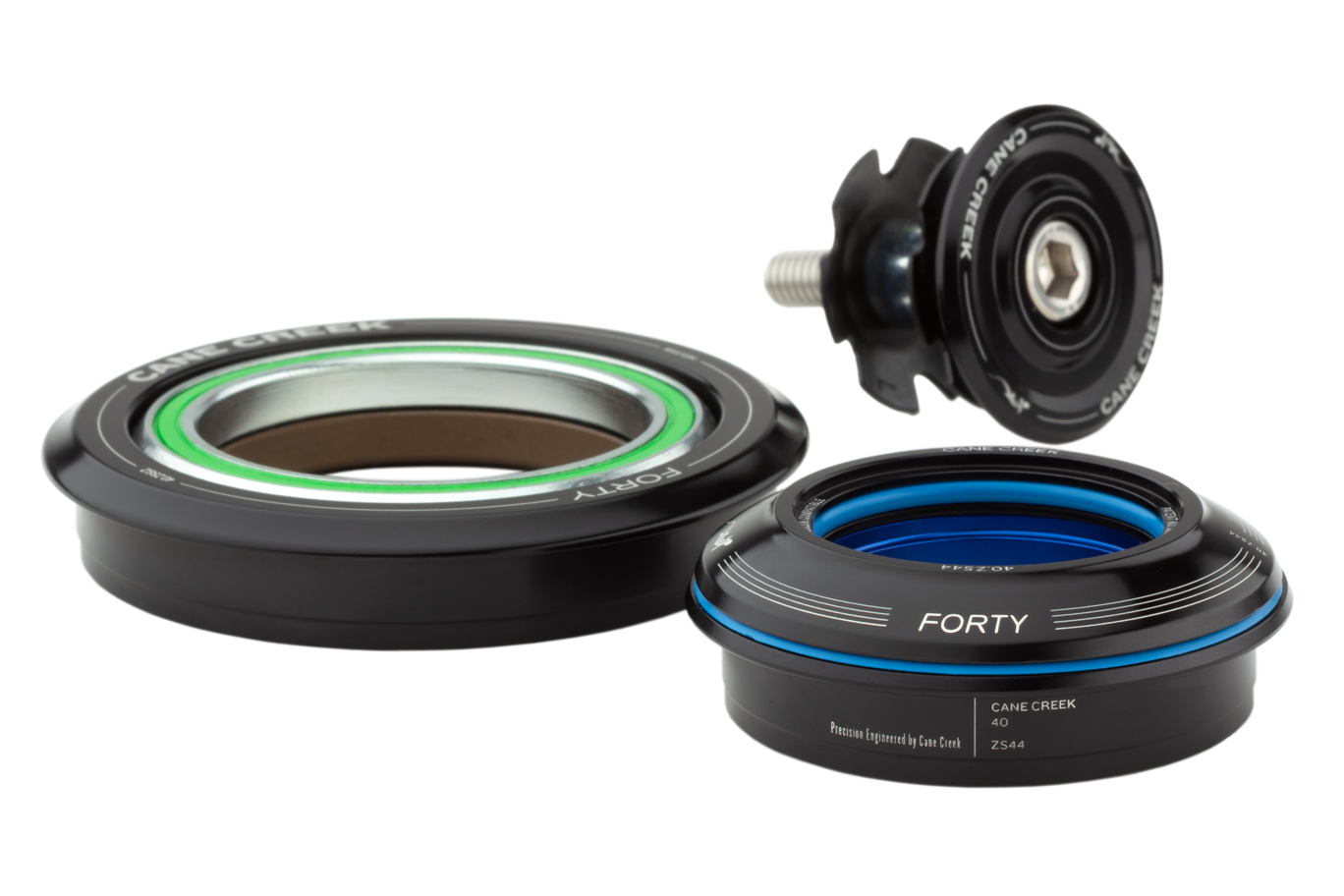

A Cane Creek 40-Series headset with zero-stack cups top and bottom, built for frames with an oversized 62mm lower head tube and a tapered steerer.

Highlights

  • Zero-stack (ZS) upper and lower, S.H.I.S. ZS44/28.6 | ZS62/40
  • Tapered-steerer assembly
  • Short-cover top
  • ZN40 sealed cartridge bearings, 6061-T6 aluminium cups
  • Black finish

S.H.I.S. explained

Cane Creek's S.H.I.S. code states a headset's fit in one line: cup type, head tube bore, and steerer diameter after the slash. ZS62 on the bottom means a 62mm head tube bore — one of the largest Cane Creek offers — so check your frame's lower bore before ordering.

Compatibility & fit

Fits a 44mm head tube top, 62mm head tube bottom, tapered 1-1/8in to 1.5in steerer. This is an uncommon bore pairing — confirm your frame's own S.H.I.S. marking matches before buying.

Cane Creek covers 40-Series headsets with a 1 year warranty against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • S.H.I.S. ZS44/28.6 | ZS62/40 tapered
  • 62mm lower head tube fit
  • ZN40 sealed cartridge bearings
  • Black finish
S.H.I.S. upperZS44/28.6
S.H.I.S. lowerZS62/40
SteererTapered 1-1/8in to 1.5in
BearingZN40 sealed cartridge, 36°/45°
ColourBlack
SKU DTW-CKG-HS40ZS44ZS62
Barcode # 840226078588
Brand Cane Creek
Shipping Weight 0.1700kg
