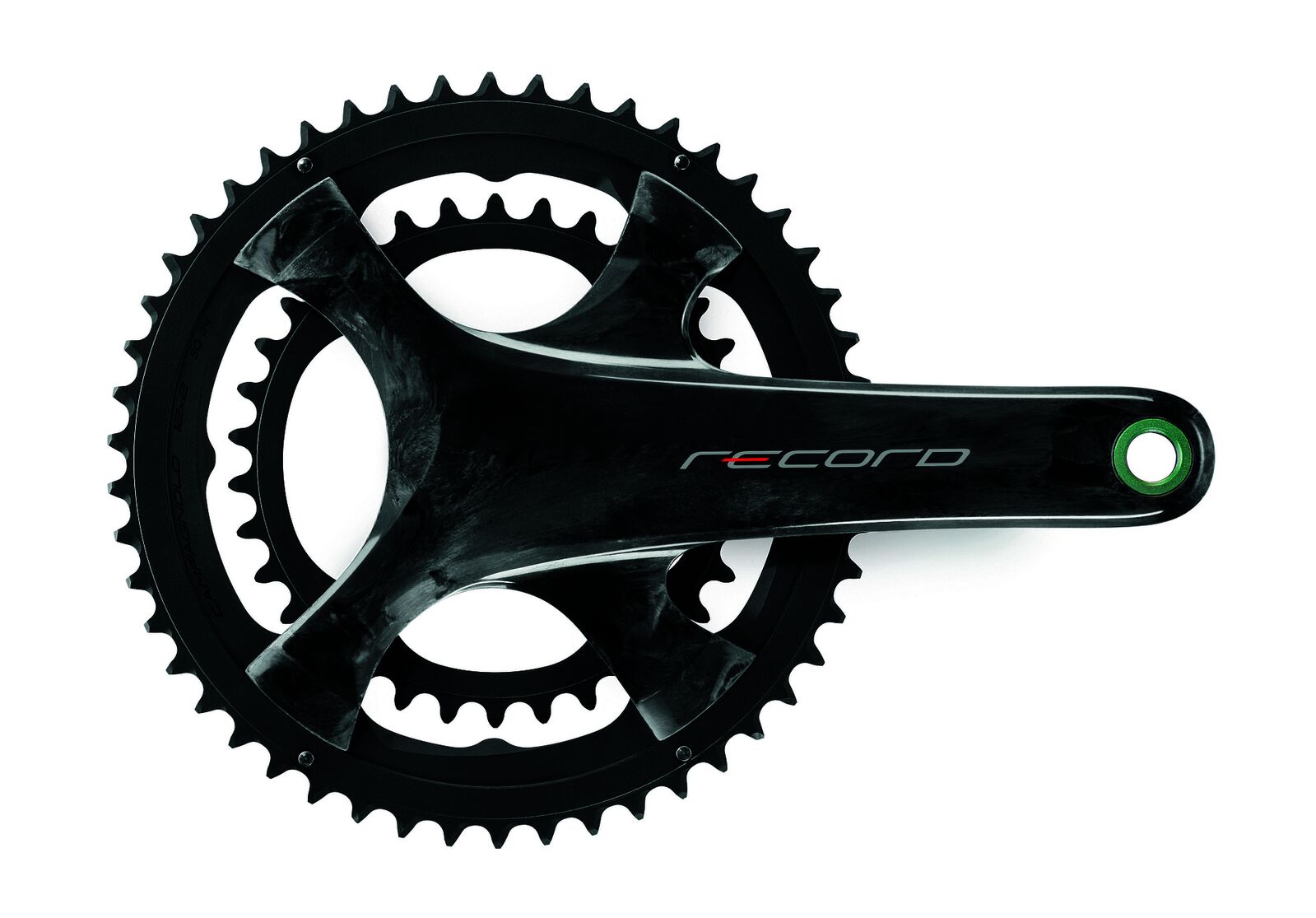

Campagnolo's Super Record 12-speed crankset combines Hollow Technology carbon cranks, a titanium Ultra-Torque axle and CULT ceramic bearings for a light, stiff and exceptionally smooth drivetrain that suits rim or disc brake frames.

Highlights

  • Hollow Technology unidirectional carbon cranks
  • Titanium Ultra-Torque axle
  • CULT ceramic bearings
  • Dual 112/145mm BCD with eight chainring bolts
  • One chainline for 130, 135 and 142mm rear hubs
  • 145.5mm Q-factor

Faster, quieter shifting

The outer ring uses a contoured pin for faster, quieter shifts, and the symmetrical inner-ring teeth improve stability when cross-chained. Each of the three combinations (34/50, 36/52, 39/53) has its own number of pins for smoother upshifts, and drains on the inside of the outer ring help downshifts through the dead spots.

One crank for any frame

Campagnolo optimised the chainline for rear hub spacing of 130, 135 or 142mm without changing the 145.5mm Q-factor, so the same crankset suits rim-brake and disc-brake frames. Claimed weight is 618g (172.5mm, 34-50, 2 bearings assembled).

Options

ChainringsCrank lengths available
50/34170mm, 172.5mm
52/36170mm, 172.5mm
53/39170mm, 172.5mm, 175mm

Compatibility & fit

For Campagnolo Super Record 12-speed mechanical groupsets. Uses Campagnolo Ultra-Torque bottom bracket cups (sold separately) to suit your frame: BSA, ITA, T47 or press-fit. Fitting is available from the Tune Cycles workshop as a separate service; it isn't included in the price.

Campagnolo's Limited Conventional Warranty covers this product against defects in materials or workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. It does not cover normal wear and tear, crash damage, improper assembly or maintenance, or use with components Campagnolo does not specify as compatible. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • Hollow carbon cranks
  • Titanium Ultra-Torque axle
  • CULT ceramic bearings
  • 112/145mm BCD, eight bolts
  • 145.5mm Q-factor
  • Rim or disc frames
GroupsetCampagnolo Super Record 12-speed (mechanical)
Speeds2x12
Crank materialUnidirectional carbon fibre, hollow
AxleTitanium, Ultra-Torque
BearingsCULT ceramic
BCD112 / 145mm
Q-factor145.5mm
Rear hub spacing130, 135 or 142mm
Combinations34/50, 36/52, 39/53
Claimed weight618g (172.5mm, 34-50, bearings assembled)
SKU FES-P-24490
Brand Campagnolo
