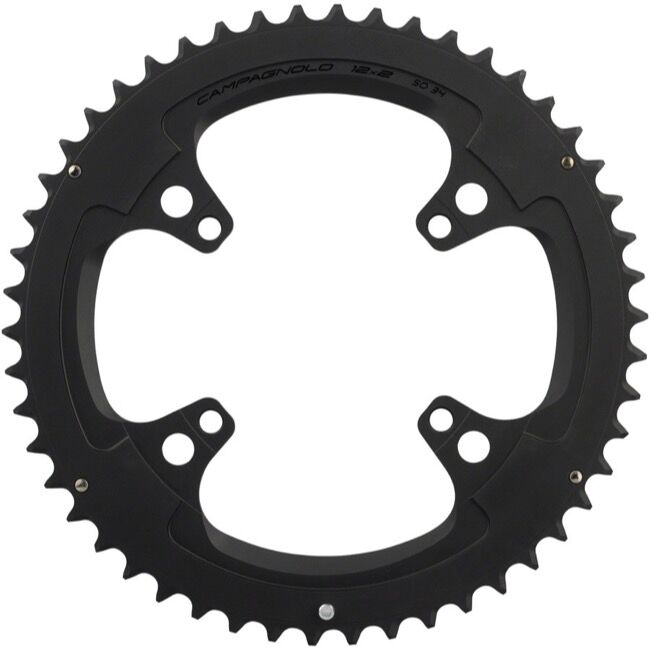

Replace a worn Chorus 12-speed chainring with the genuine Campagnolo part, supplied with screws, to keep the shifting as crisp as the day the groupset was new.

Matched pairs

Chorus 12 rings are designed in pairs: 32T with 48T, 34T with 50T and 36T with 52T. The outer ring mounts to the crank on a 123mm bolt circle and the inner ring bolts to the outer on 96mm.

Options

OptionPositionBCDPairs with
32T/96BCDInner96mm48T
34T/96BCDInner96mm50T
36T/96BCDInner96mm52T
48T/123BCDOuter123mm32T
50T/123BCDOuter123mm34T
52T/123BCDOuter123mm36T

Compatibility & fit

For Campagnolo Chorus 12-speed Ultra-Torque cranksets. Use the inner and outer rings as the matched pairs shown in the options table. The Campagnolo chainring screw kit for this crank is FC-CH1200. Fitting is available from the Tune Cycles workshop as a separate service; it isn't included in the price.

Campagnolo's Limited Conventional Warranty covers this product against defects in materials or workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. It does not cover normal wear and tear, crash damage, improper assembly or maintenance, or use with components Campagnolo does not specify as compatible. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • Genuine Campagnolo spare
  • Aluminium, black
  • Screws included
  • Chorus 12-speed specific
GroupsetCampagnolo Chorus 12-speed
Speeds12
MaterialAluminium
ColourBlack
Inner rings32, 34, 36T (96mm BCD)
Outer rings48, 50, 52T (123mm BCD)
IncludesChainring screws
SKU FES-P-24842
Brand Campagnolo
