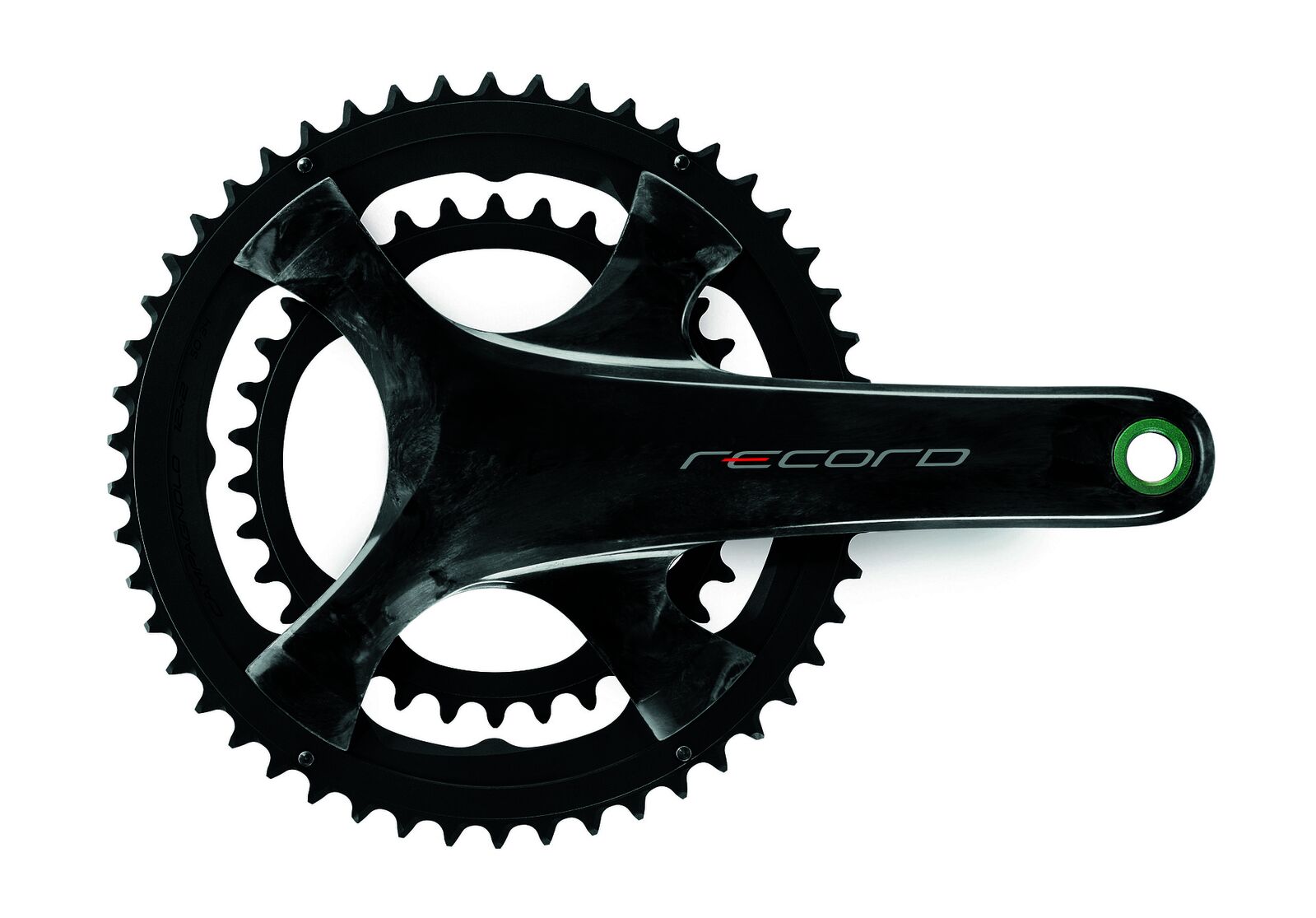

The Record 12-speed crankset carries the unidirectional carbon finish of the whole Record groupset, with an Ultra-Torque steel axle for direct power transfer on rim or disc frames.

Highlights

  • Unidirectional carbon cranks
  • Ultra-Torque steel axle
  • Dual 112/145mm BCD with eight chainring bolts
  • One chainline for 130, 135 and 142mm rear hubs
  • 145.5mm Q-factor
  • Surface-treated chainrings for longer life

Refined shifting

A contoured pin on the outer ring gives faster, quieter shifts, symmetrical inner-ring teeth stay stable when cross-chained, and each combination has its own pin count for smoother upshifts.

Suits any frame

The chainline is optimised for 130, 135 or 142mm rear hubs while the Q-factor stays at 145.5mm. Claimed weight is 708g (170mm, 34-50, 2 bearings assembled).

Options

ChainringsCrank lengths available
52/36170mm, 172.5mm, 175mm
53/39170mm, 172.5mm, 175mm

Compatibility & fit

For Campagnolo Record 12-speed mechanical groupsets. Uses Campagnolo Ultra-Torque bottom bracket cups (sold separately) to suit your frame: BSA, ITA, T47 or press-fit. Fitting is available from the Tune Cycles workshop as a separate service; it isn't included in the price.

Campagnolo's Limited Conventional Warranty covers this product against defects in materials or workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. It does not cover normal wear and tear, crash damage, improper assembly or maintenance, or use with components Campagnolo does not specify as compatible. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • Unidirectional carbon cranks
  • Ultra-Torque steel axle
  • Aluminium chainrings
  • 112/145mm BCD, eight bolts
  • 145.5mm Q-factor
GroupsetCampagnolo Record 12-speed (mechanical)
Speeds2x12
Crank materialUnidirectional carbon fibre
AxleSteel, Ultra-Torque
BCD112 / 145mm
Q-factor145.5mm
Rear hub spacing130, 135 or 142mm
Claimed weight708g (170mm, 34-50, bearings assembled)
SKU FES-P-24488
Brand Campagnolo
