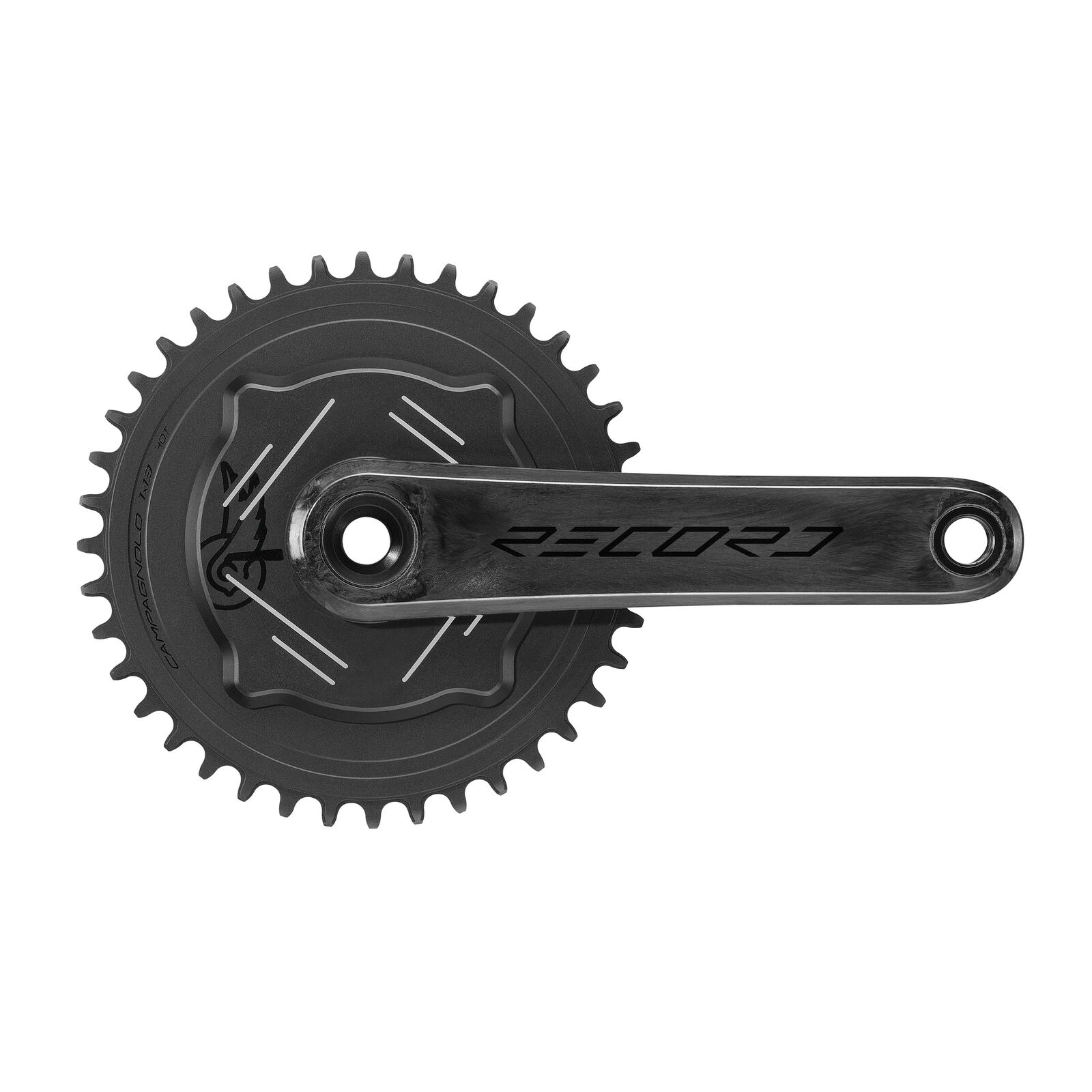

Single-ring simplicity for Record 13 road bikes: carbon arms, an Ultra-Torque steel spindle and a choice of aero chainrings from 44 to 52 teeth with Campagnolo's redesigned tooth profile.

Highlights

  • Carbon fibre crank arms
  • Ultra-Torque system with steel spindle
  • Five aero chainring sizes, 44 to 52T
  • Uses Super Record 13 chainrings and cassettes
  • 165, 170, 172.5mm

Single chainring, road focus

The redesigned tooth profile targets smooth, quiet shifting and chain stability. Campagnolo states chainrings and cassettes developed for Super Record 13 are fully compatible with Record 13.

Bottom bracket selection, crank installation and drivetrain set-up are available from the Tune Cycles workshop as a separate service, not included in the price.

Options

Crank lengthWhat differs
165mmCrank arm length only
170mmCrank arm length only
172.5mmCrank arm length only

Compatibility & fit

Designed for Campagnolo Record 13 1x road drivetrains (13-speed). Requires a Campagnolo bottom bracket cup to suit your frame's shell. For gravel frames needing a wider chainline, see the Record X crank.

Campagnolo covers its components with a 3-year limited warranty from the date of purchase against defects in materials and workmanship (EPS power units: 2 years). Proof of purchase is required; crash damage, normal wear and tear, misuse and incorrect installation are not covered (see Campagnolo warranty information). For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.

  • Carbon crank arms
  • Ultra-Torque steel spindle
  • 44 to 52T aero chainrings
  • Compatible with Super Record 13 rings and cassettes
  • 165 to 172.5mm
BrandCampagnolo
GroupsetRecord 13
Speeds13 (1x road)
TypeCrankarm set
Crank armsCarbon fibre
AxleUltra-Torque, steel
Crank lengths165, 170, 172.5mm
Chainring options44, 46, 48, 50, 52T
Claimed weight (complete crankset)730 g (172.5mm, 50T aero, bearings assembled)
SKU FES-P-30570
Brand Campagnolo
