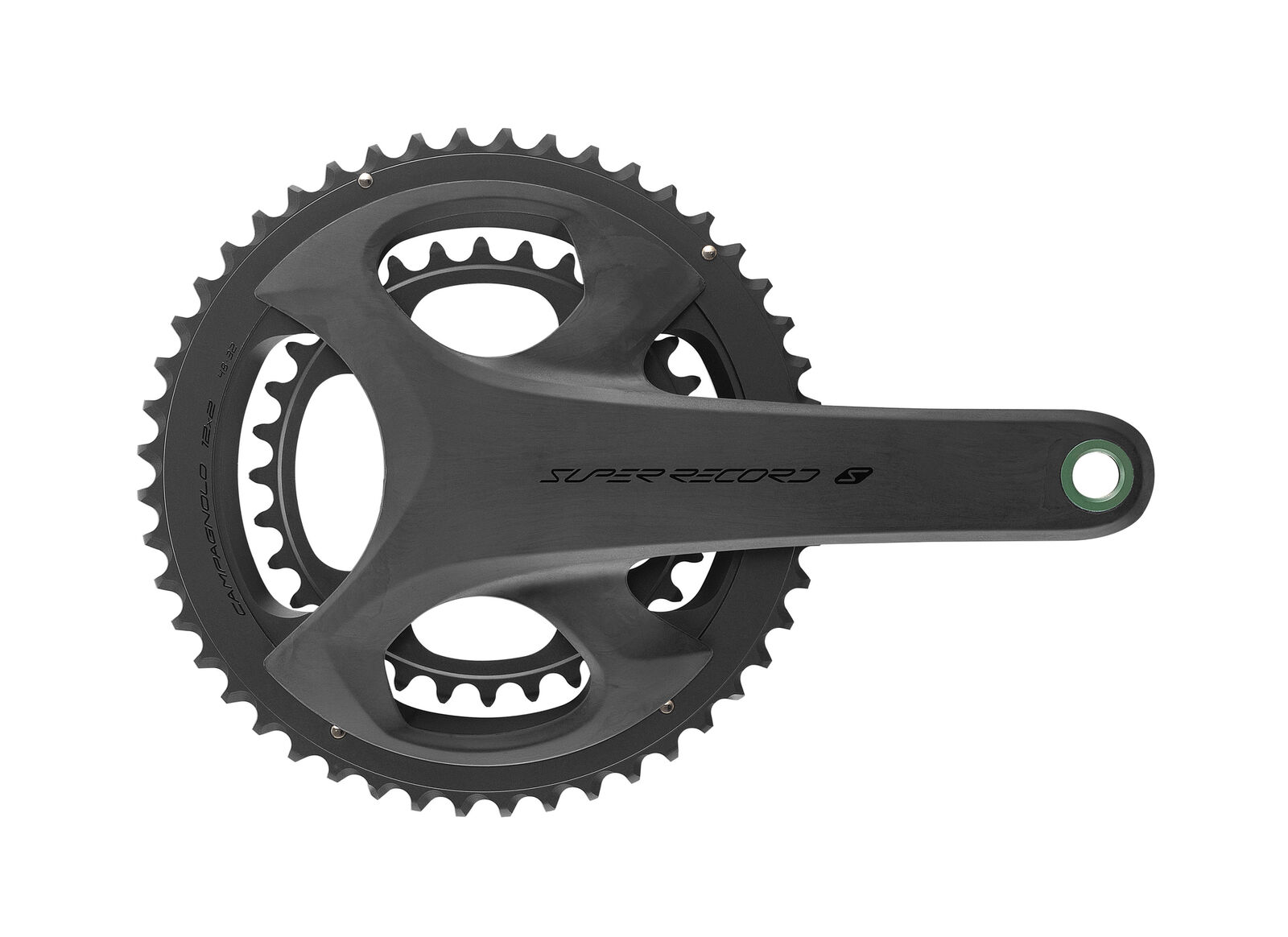

The Super Record S Wireless crankset brings Campagnolo's visible-carbon design to the Super Record Wireless 12-speed platform with a steel Ultra-Torque axle and the widest chainring choice in the range, from a 45/29 climbing set up to 54/39 for racing.

Highlights

  • Unidirectional carbon fibre cranks with aluminium chainrings
  • Ultra-Torque locking system on a steel axle
  • Chainring combinations from 45/29 to 54/39
  • Crank lengths 165, 170, 172.5 and 175mm
  • Symmetrical inner-ring teeth for stable shifting even when cross-chained
  • Flat spider design for aerodynamics

Built around Ultra-Torque

Campagnolo's Ultra-Torque system joins two semi-axles in the middle of the bottom bracket with a single bolt, and the steel axle sends every watt straight into the drivetrain. High-quality bearings deliver the smoothness Campagnolo is known for.

Gearing for every rider

The S Wireless crankset is designed around a wide combination scheme that pairs with the 12-speed Super Record Wireless cassettes to give the broadest spread of gear ratios. Claimed weight is 673g (172.5mm, 45x29, bearings assembled).

Options

ChainringsCrank lengths available
45/29165mm, 170mm, 172.5mm, 175mm
48/32170mm, 172.5mm, 175mm
50/34165mm, 170mm, 172.5mm, 175mm
52/36165mm, 170mm, 172.5mm, 175mm
53/39 (needs Super Record S front derailleur)165mm, 172.5mm, 175mm
54/39 (needs Super Record S front derailleur)165mm, 170mm, 172.5mm, 175mm
55/39165mm, 170mm, 172.5mm, 175mm

Compatibility & fit

For Campagnolo Super Record Wireless and Super Record S Wireless 12-speed groupsets. Campagnolo's compatibility table specifies Pro-Tech bottom bracket cups (threaded OC21-PR or press-fit IC21-PR), sold separately. The 53/39 and 54/39 combinations are only compatible when the Super Record S (dual-position) front derailleur is used; the single-position front derailleur is limited to 52/36 or smaller. Fitting is available from the Tune Cycles workshop as a separate service; it isn't included in the price.

Campagnolo's Limited Conventional Warranty covers this product against defects in materials or workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. It does not cover normal wear and tear, crash damage, improper assembly or maintenance, or use with components Campagnolo does not specify as compatible. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • Unidirectional carbon fibre crank arms
  • Ultra-Torque locking system with steel axle
  • Aluminium chainrings
  • Symmetrical inner chainring teeth
  • Flat spider for aerodynamics
  • Lengths 165 to 175mm
GroupsetCampagnolo Super Record S Wireless 12-speed
Speeds2x12
Crank materialUnidirectional carbon fibre
AxleSteel, Ultra-Torque
ChainringsAluminium
Crank lengths165, 170, 172.5, 175mm
Combinations45/29, 48/32, 50/34, 52/36, 53/39, 54/39
Bottom bracketCampagnolo Pro-Tech cups (sold separately)
Claimed weight673g (172.5mm, 45x29, bearings assembled)
SKU FES-P-27276
Brand Campagnolo
