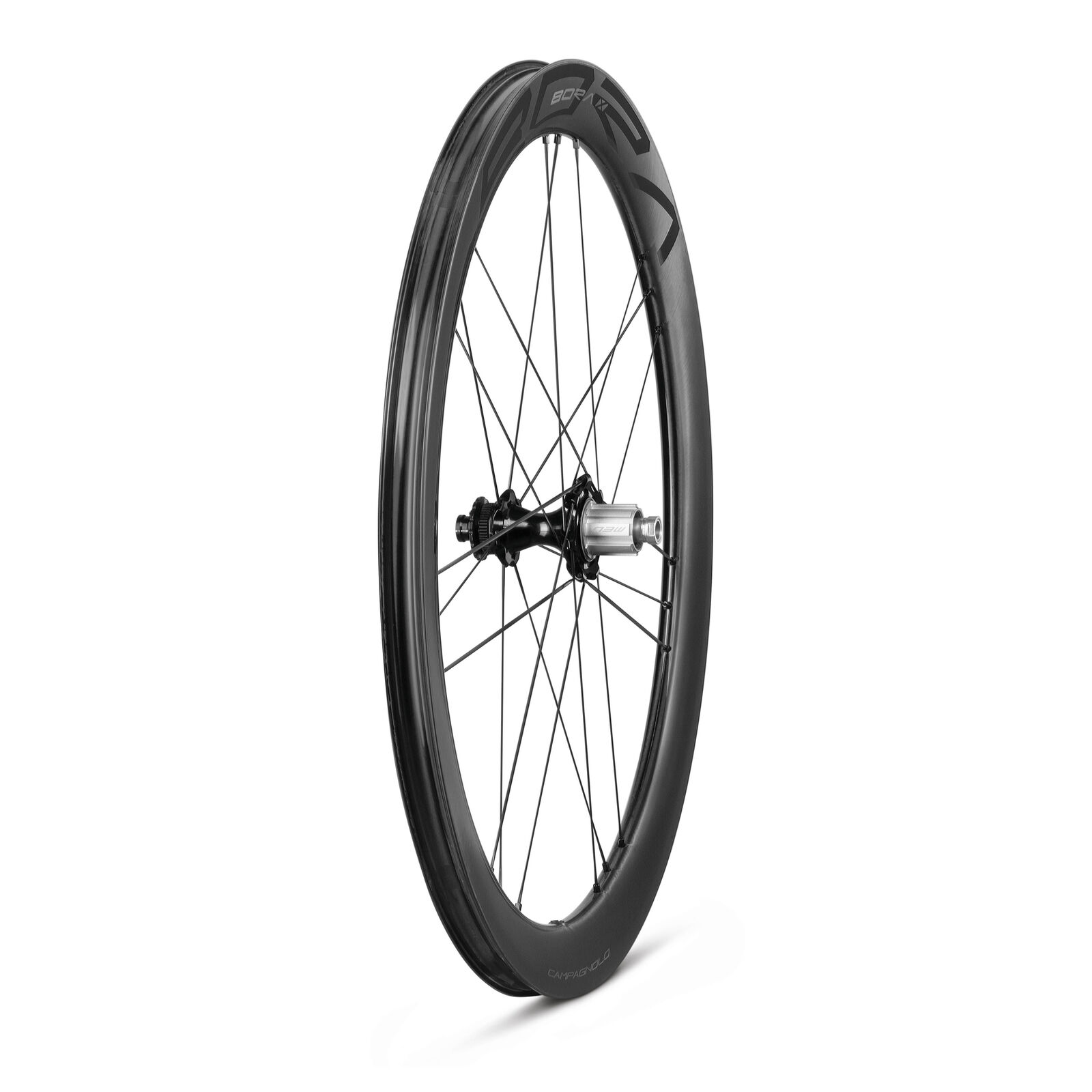

Campagnolo Bora X 50 Disc Brake 2-Way Fit C27 Gravel Wheelset – N3W
SKU code: FES-WC4810AP8A110
In Stock
Bora X brings Bora racing performance to gravel. Developed alongside the Super Record X groupset, it was designed in the wind tunnel and tested on rough terrain for speed, control and vibration absorption, at a claimed 1,430 g.
Highlights
- 50 mm carbon rims, wind-tunnel designed
- 27 mm hooked internal width, tyres from 35 mm
- G3 lacing with aero and elliptical spokes
- Claimed 1,430 g the pair
- N3W, HG11, Microspline or XDR freehub
Rims
The 50 mm carbon rim has a 27 mm hooked internal width, suited to tyres from 35 mm. Its unidirectional fibre lay-up is adapted from the road Bora to the loads of fast gravel riding.
Spokes
Bora X keeps Campagnolo's G3 lacing, with seven groups of three spokes per wheel, but uses two spoke types. Aero spokes go on the cassette side of the rear and the disc side of the front to cut turbulence; lighter elliptical spokes on the opposite sides absorb vibration and balance the wheel's stiffness.
Look
The graphics match the Super Record X groupset, with a black chrome foil X logo, the Campagnolo signature on one side and the Winged Wheel on the other.
Options
| Option | Freehub body |
|---|---|
| N3W | Campagnolo N3W body, for Campagnolo 11-, 12- and 13-speed cassettes |
| HG | Shimano HG11 body, for Shimano HG-spline road cassettes |
| MS12 | Shimano Microspline (MS12) body, for Shimano 12-speed Microspline cassettes |
| XDR | SRAM XDR body, for SRAM XDR road cassettes |
Compatibility & fit
Disc brake gravel wheelset. Choose the freehub body that matches your cassette. N3W takes Campagnolo cassettes that start with a 9 or 10-tooth sprocket (such as Ekar and Super Record Wireless) directly; cassettes that start with 11 or 12 teeth need Campagnolo's N3W adapter. Confirm your frame's axle standard and tyre clearance with us before ordering. Cassette fitting and tubeless set-up are separate workshop services at Tune Cycles.
- 50 mm carbon rims
- 27 mm hooked internal, tyres from 35 mm
- Aero + elliptical spokes in G3 pattern
- Claimed 1,430 g
- Four freehub options: N3W, HG11, MS12, XDR
| Brand | Campagnolo |
|---|---|
| Model | Bora X 50 Disc Brake |
| Rim | Unidirectional carbon, 50 mm deep |
| Internal width | 27 mm (C27), hooked |
| Tyres | From 35 mm (2-Way Fit) |
| Spokes | G3, seven groups of three per wheel; aero and elliptical |
| Freehub | Campagnolo N3W, Shimano HG11, Shimano Microspline (MS12) or SRAM XDR |
| Weight | 1,430 g per pair (claimed) |
