Shimano BR-M7120 DISC BRAKE CALIPER SLX with RESIN PAD with FIN (N03A)
IBRM7120MPRF
SKU code: SHM-IBRM7120MPRF

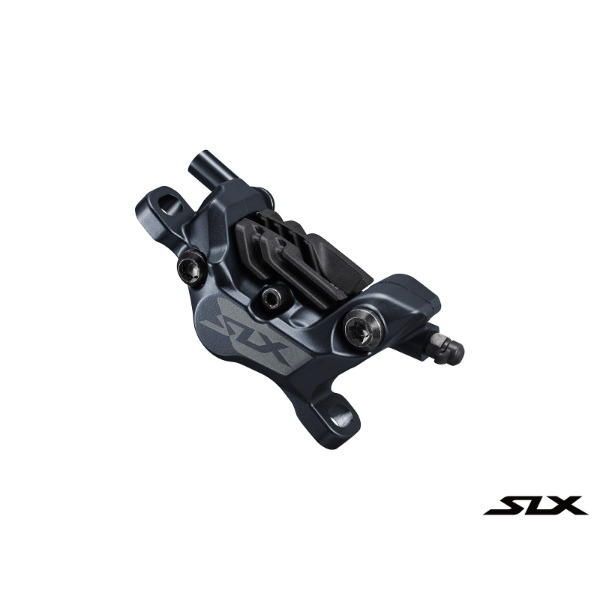

Shimano SLX BR-M7120 four-piston disc brake caliper
The four-piston SLX caliper is the one to fit when you want more braking power without giving up control. Quicker piston retraction keeps the pads clear of the rotor, and the finned resin pads help shed heat on long descents.
Highlights
- Four-piston hydraulic disc brake caliper
- Post mount fitting, usable front or rear
- Quicker piston retraction for cleaner running
- N03A resin pads with cooling fin supplied
- Banjo hose connection with inside hose routing
- Average weight 142 g
Power for steeper ground
Four pistons spread clamping force across a larger pad, which builds power progressively and holds it as the brake warms up. It is the difference between managing a long descent and hanging on through it.
Compatibility and fit
Post mount caliper, supplied without a mount adapter, so you will need the correct adapter for your frame or fork and rotor size. The banjo connection allows the hose to be angled to suit the frame. Use Shimano mineral oil only. Sold as a caliper: lever, hose, rotor and adapter are purchased separately. If you are unsure what your bike takes, ask us before you order.
Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.
- Stable and versatile high-performance brake control
- Quicker Piston retraction
- High power braking instills greater downhill confidence and control
- Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M7000)
- Four Piston
- Quick and easy assembly
- Banjo type connection and inside hose routing
- Model No: BR-M7120
- SLX M7100 Series
- Series color
- Average Weight: 444
- ICE TECHNOLOGIES Pad Compatible Caliper
- Black Brake Hose Color (kit)
- Brake Hose (Kit): SM-BH90-SBM
- Hydraulic Disc Brake Type
- Snap Ring Caliper Fixing Bolt Anti Loosen Method
- Caliper Fixing Bolt Tool Size: 5 mm
- Banjo Hose Joint
- J-Kit spec (for OEM)
- Mount Post-type
- Oil SHIMANO Mineral
- Pad Option: D02S Metal (w/o fin) | N04C Metal (w/ fin)
- Pad Standard: D03S Resin (w/o fin) | N03A Resin (w/ fin)
- Pad Mount Axle
- Piston: 4
- Recommended Brake Lever: BL-M7100
- Recommended Disc Brake Rotor: SM-RT70
- J-Kit spec (for OEM)
- Ice Technology Pad Compatible Caliper
- Compatible Brake Rotor Size 140 mm (SS)
- Compatible Brake Rotor Size 160 mm (S)
- Compatible Brake Rotor Size 180 mm (M)
- Compatible Brake Rotor Size 203 mm (L)
| Series | SLX |
|---|---|
| Type | Hydraulic disc brake caliper |
| Pistons | 4 |
| Mount type | Post mount |
| Position | Front or rear |
| Pads supplied | N03A resin with cooling fin |
| Hose connection | Banjo |
| Average weight | 142 g |
| Colour | Series colour |
| SKU | SHM-IBRM7120MPRF |
| Barcode # | 4550170442644 |
| Brand | Shimano |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001000000m3 |
| Unit Of Measure | each |
Must be installed and serviced by qualified bicycle mechanic
