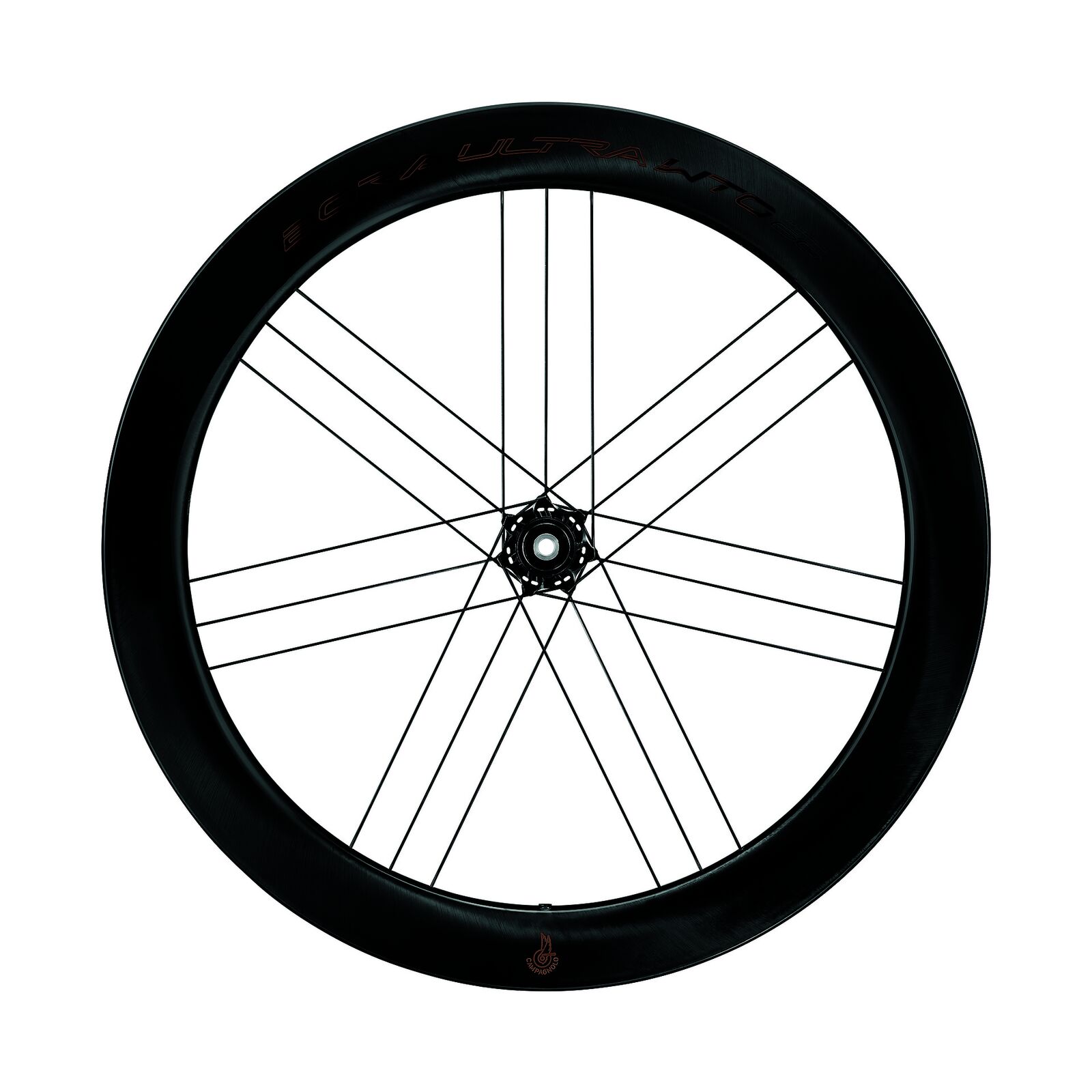

A single front wheel from Campagnolo's Bora Ultra WTO C23 disc range, at 60 mm deep. Ideal for replacing one wheel or building a mixed-depth pair.

Highlights

  • 60 mm H.U.L.C. carbon rim, 23 mm internal width
  • 2-Way Fit: tubeless without rim tape, or clincher
  • CULT ceramic cup-and-cone bearings
  • 21 Aero Elliptical spokes, G3 lacing
  • Carbon front hub body

Rim and aerodynamics

Built with Campagnolo's H.U.L.C. (Handmade Ultra-Light Carbon) process, the drop-shaped C23 rim has a 23 mm internal width and 28.4 mm external width. Aero Mo-Mag hides the self-locking aluminium nipples inside the rim on fibreglass-reinforced polymer seats, so the 2-Way Fit rim bed has no spoke holes and runs tubeless without rim tape. Campagnolo builds the rims with a single joint rather than the usual four.

Hub and build

A 100 mm front hub with a 12 mm aluminium thru-axle and carbon hub body, running CULT ceramic cup-and-cone bearings, laced with Aero Elliptical straight-pull spokes in Campagnolo's G3 pattern and hand-assembled by a Campagnolo technician. Tubeless set-up and rotor fitting are separate workshop services at Tune Cycles.

Compatibility & fit

Disc brake only. Front wheel for 12 mm thru-axle forks with 100 mm spacing. Rotor mounts with an AFS lockring. Campagnolo recommends 700c tyres from 28 to 35 mm. Check tyre and pressure combinations against Campagnolo's rim-tyre-pressure table.

Covered by Campagnolo's limited warranty against defects in materials and workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. Normal wear and tear, accidents, improper assembly or maintenance, and use with components Campagnolo doesn't list as compatible are not covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • 60 mm carbon C23 rim
  • 2-Way Fit tubeless or clincher
  • CULT ceramic bearings
  • 12 mm thru-axle, AFS rotor interface
UseRoad, disc brake
PositionFront
Rim depth60 mm
Internal width23 mm (C23)
External width28.4 mm
Rim materialUD high-strength carbon fibre, H.U.L.C.
Tyre system2-Way Fit: tubeless, tubeless-ready, clincher
Recommended tyres700c, 28 to 35 mm
Spokes21 Aero Elliptical, straight-pull, double-butted 1.5 mm, G3 pattern
NipplesAluminium Aero Mo-Mag, self-locking, internal
BearingsCULT ceramic, cup and cone
Rotor interfaceAFS
HubBora Ultra, carbon body
Axle12 mm aluminium thru-axle, 100 mm
SKU FES-WC436AAF0A100
Brand Campagnolo
Shipping Weight 1.4000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
