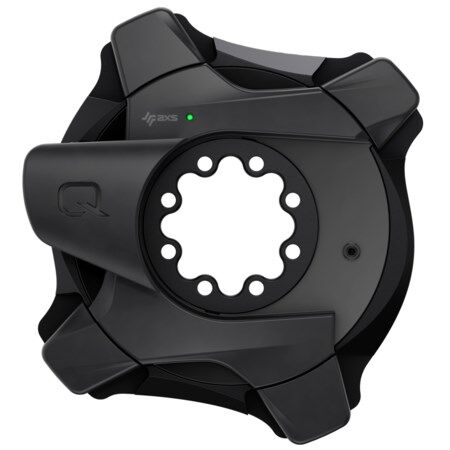

The SRAM AXS Power Meter Spider is a Quarq-based power measuring spider that mounts directly to compatible SRAM AXS cranksets — delivering dual-sided power measurement without replacing the whole drivetrain. Accurate watt, cadence, and torque data transmits via ANT+ and Bluetooth to compatible head units and GPS computers.

Highlights

  • Quarq power meter spider for SRAM AXS cranksets
  • Dual-sided power measurement — total power, left/right balance
  • ANT+ and Bluetooth transmission — compatible with all major head units
  • No separate battery pack — integrates cleanly into the drivetrain
  • Available for multiple AXS crankset configurations

Quarq accuracy

Quarq power meters use strain gauges bonded to the spider arms — measuring the deflection caused by pedalling force at the actual point of power transfer. SRAM acquired Quarq in 2011 and the technology underpins the full range of SRAM power meter products. Temperature compensation and calibration are handled automatically.

Fit and compatibility

AXS Power Meter Spider for SRAM AXS cranksets. Confirm crankset model and spider compatibility before ordering — not all AXS cranks use the same spider interface. Requires compatible head unit with ANT+ or Bluetooth power meter support.

Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page
Features
  • AXS enabled for easy monitoring and firmware upgrades
  • Bluetooth Low Energy and ANT+ compatible
  • Power readings are accurate within +/-1.5% and aren't affected by climate conditions during a ride
  • Uses a common CR2032 battery that last for 200 riding hours and changes without tools
  • Power-upgrade compatible with the following RED and Force eTap AXS cranksets:
  • RED 1x: 36T-46T, Force 1x: 36T-46T, Force 2x: 33/46, 35/48

Specifications

Crank arm length n/a
BB Spindle Interface n/a
BB Compatibility n/a
Speeds n/a
Chainring material n/a
Bolt Circle Diameter (BCD) 107 BCD
Chainline n/a
Chainring Size n/a
SKU SRM-PM-AXS-SPDR-D1
Model # PM-AXS-SPDR-D1
Barcode # PM-AXS-SPDR-D1
Brand SRAM
