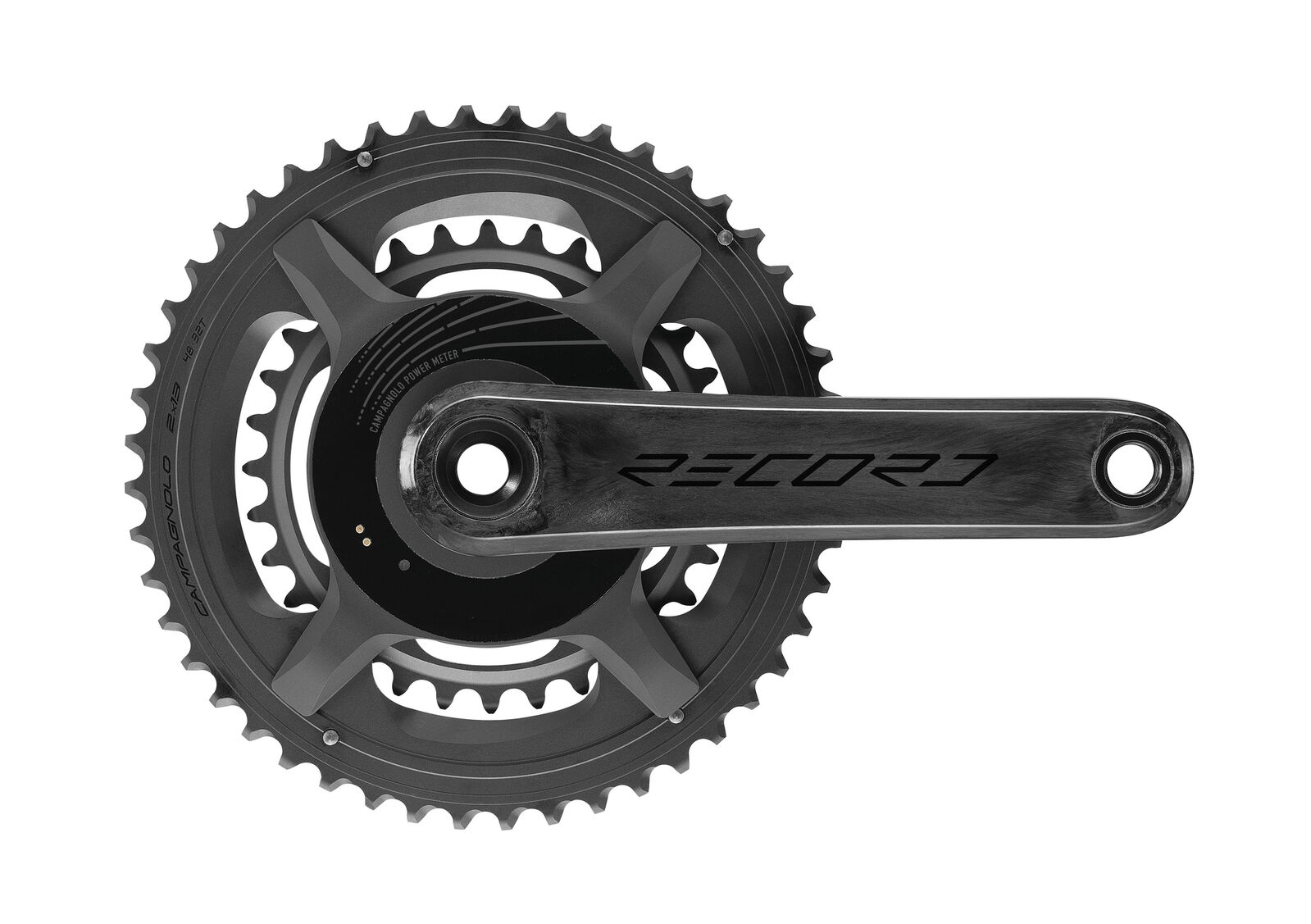

Campagnolo Record 13 2x13 QCK-Tech Power Meter Crankarm Set – 165mm
SKU code: FES-FCP0-RE13165CA
Record 13's 2x crank with Campagnolo's CPM power meter integrated in the axle. Eight strain gauges and a gyroscope give dual-sided power claimed to ±2%, streamed to your bike computer or the MyCampy app.
Highlights
- CPM (Campagnolo Power Meter): 8 strain gauges plus gyroscope
- Dual-sided measurement, ±2% claimed accuracy
- Sensor on the axle, unaffected by crank arm flex
- Carbon crank arms, Ultra-Torque system
- Magnetic quick-snap charging
CPM power measurement
CPM is derived from Super Record's HPPM with simplified electronics. Power, battery status and settings are visible on your bike computer and in the MyCampy app.
Bottom bracket selection, crank installation and drivetrain set-up are available from the Tune Cycles workshop as a separate service, not included in the price.
Options
| Crank length | What differs |
|---|---|
| 165mm | Crank arm length only |
| 170mm | Crank arm length only |
| 172.5mm | Crank arm length only |
Compatibility & fit
Designed for Campagnolo Record 13 (13-speed) 2x drivetrains, chainrings 45/29 to 55/39. Campagnolo states chainrings and cassettes developed for Super Record 13 are fully compatible with Record 13. Requires a Campagnolo bottom bracket cup to suit your frame's shell.
Campagnolo covers its components with a 3-year limited warranty from the date of purchase against defects in materials and workmanship (EPS power units: 2 years). Proof of purchase is required; crash damage, normal wear and tear, misuse and incorrect installation are not covered (see Campagnolo warranty information). For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
- CPM power meter, dual-sided, ±2% claimed
- 8 strain gauges plus gyroscope
- Axle-mounted sensor
- Carbon crank arms
- 165, 170, 172.5mm
| Brand | Campagnolo |
|---|---|
| Groupset | Record 13 |
| Speeds | 13 (2x) |
| Type | Power meter crankarm set |
| Power meter | CPM, 8 strain gauges + gyroscope, axle-mounted |
| Claimed accuracy | ±2% |
| Crank arms | Carbon fibre |
| Axle | Ultra-Torque |
| Crank lengths | 165, 170, 172.5mm |
| Claimed weight (complete crankset) | 761 g (172.5mm, 45x29, bearings assembled) |
| SKU | FES-P-30572 |
| Brand | Campagnolo |
| Shipping Weight | 1.0610kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
