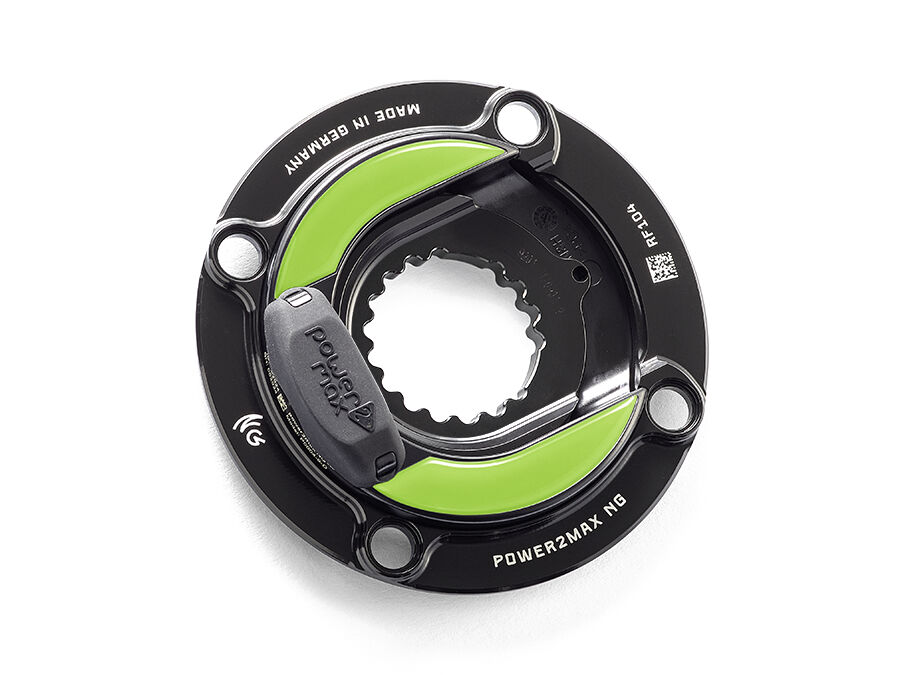

power2max NGeco MTB Power Meter Spider Cannondale AI 104 BCD
SKU code: FES-LM-NEM-CAN00-001.0104
In Stock
For Cannondale mountain bikes with the AI drivetrain: this NGeco spider fits SI, SISL and SISL2 cranksets and adds power and cadence to your 1x setup.
Highlights
- Spider power meter for Cannondale SI, SISL and SISL2 MTB cranksets
- AI / Super Boost 55mm chainline, 104 BCD
- Boost via optional adapter
- ±2% accuracy, power and cadence
- ANT+ and Bluetooth
- Replaceable CR2450 coin cell, up to 300 hours
- 130g
Simple, reliable data
The NGeco measures total power and cadence at the spider, so there are no pedal or crank-arm sensors to swap between bikes. Active temperature compensation and automatic zero-point adjustment mean no manual calibration, and the CR2450 coin cell is user-replaceable and lasts up to 300 hours.
Compatibility & fit
For Cannondale SI, SISL or SISL2 cranksets with a removable spider, the Cannondale AI (Super Boost) chainline and a 1x drivetrain. The chainline is 55mm; for a Boost chainline the adapter ZB-SAX-00104-M01.SBNG is needed. Takes a 104 BCD chainring (not included). Mounting the right crank arm needs the power2max lockring tool for FSA, Cannondale and Specialized cranks (ZB-SAX-WZFSA-K01.0000). Our workshop can fit the power meter to your crankset and pair it with your head unit as a separate service, not included in the price.
Button battery warning: this product contains a button/coin cell battery. A lithium battery can cause severe or fatal injuries in 2 hours or less if it is swallowed or placed inside any part of the body. Keep batteries out of reach of children. If you think a battery may have been swallowed or placed inside any part of the body, seek immediate medical attention.
power2max covers NGeco power meters with a 2-year manufacturer's warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with power2max's Australian distributor.
- Spider power meter for Cannondale SI, SISL and SISL2 MTB cranksets
- AI / Super Boost 55mm chainline, 104 BCD
- Boost via optional adapter
- ±2% accuracy, power and cadence
- ANT+ and Bluetooth
- Replaceable CR2450 coin cell, up to 300 hours
- 130g
| Discipline | MTB, 1x |
|---|---|
| Crankset | Cannondale SI, SISL, SISL2 with removable spider |
| BCD | 104mm |
| Chainline | 55mm AI / Super Boost (Boost with adapter) |
| Weight | 130g |
| Tool required | Lockring tool ZB-SAX-WZFSA-K01.0000 |
| Measurement | Total power from both legs (spider-based) |
| Accuracy | ±2% |
| Metrics | Power, cadence |
| Power range | 10–2999 W |
| Torque range | 0–250 Nm |
| Cadence range | 20–250 rpm |
| Battery | CR2450 coin cell (replaceable) |
| Battery life | Up to 300 hours |
| Connectivity | ANT+, Bluetooth Low Energy |
| Temperature compensation | Active |
| Calibration | Automatic zero-point adjustment |
| Water resistant | Yes |
| Fitment | Loctite 243 or similar threadlocker recommended |
| In the box | Power meter, silicone cover, quick-start guide |
| SKU | FES-LM-NEM-CAN00-001.0104 |
| Brand | Power2Max |
